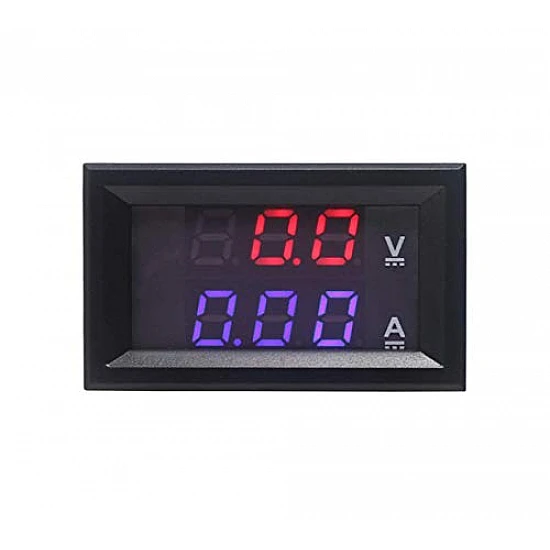

0.28inch DC 100V 100A LED Digital Voltmeter Ammeter

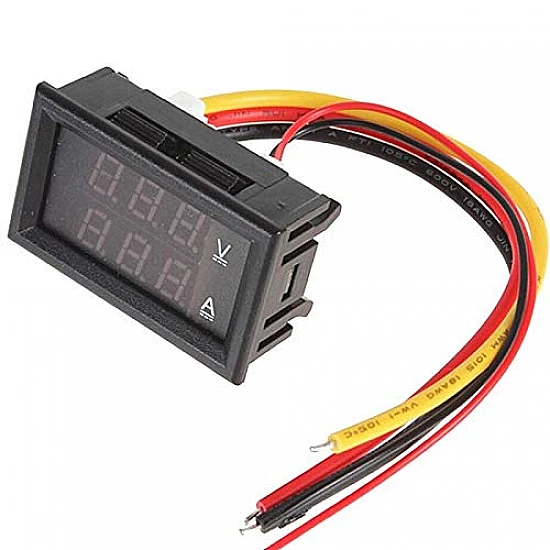

0.28inch LED Digital Voltmeter Ammeter DC 100A Meter will measure up to 100 VDC with a 0.1-volt resolution. This meter has 2 wiring harnesses, One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Another is a 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.

Features:-

• High dependability and accuracy make it ideal for high-end applications.
• Reversal protection, followed by anti-burn
• built-in shunt in the 10A voltage current metre itself
• DC 0-100V is the voltage measuring range.
• Ranges for measuring current: 0-10A, 0-50A, and 0-100A
• Show both voltage and current at once, with red for voltage and blue for current (the current is Measured in the negative rail)
• require an external power source and include protection against reversed connections
• The ground wire at the testing end and the power supply terminal is the same wire, with a 500 MS/time refresh rate.
• Having a built-in shunt and calibrating potentiometers for voltage and current

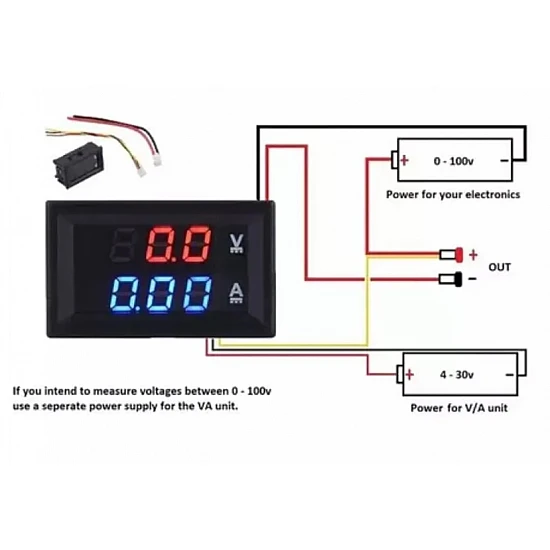

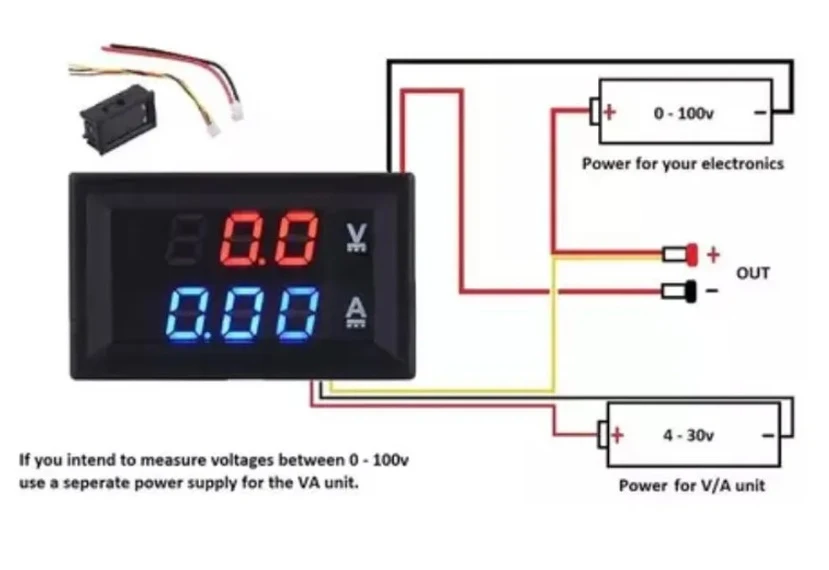

Connection diagram:

Package Includes:-

1 X 0.28inch DC 100V 100A LED Digital Voltmeter Ammeter
