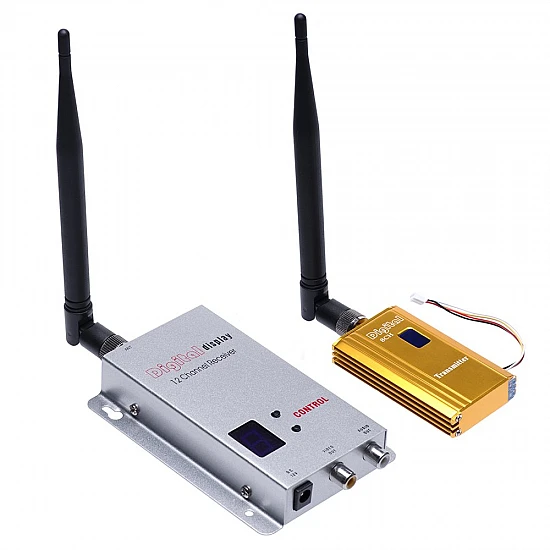

1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver

This is 1.2GHz 2W FPV Wireless Audio Video 8CH Transmitter and 12CH Receiver. It has the advantages of a long transmission range(range 80 meters building inside, open area will transmit farther), anti-interference, and high mobility. The transmitter and the receiver are used in the same channel in a pair.

Features:

• It supports 12 receiving channels.
•  It enables you to easily realize wireless sharing of HD AV data and enjoy unlimited hi-fi audio-visual effects.
• It can transmit AV signals of DVD, DVR, CCD camera, IP TV, satellite set-top box, digital TV set-top box, and other similar devices by means of radio waves.

Specifications:-

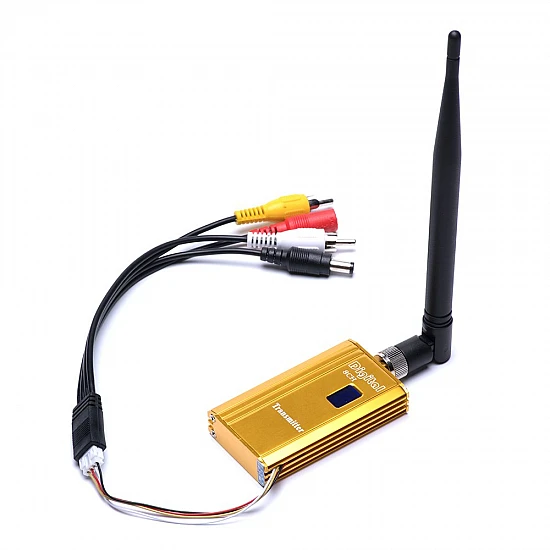

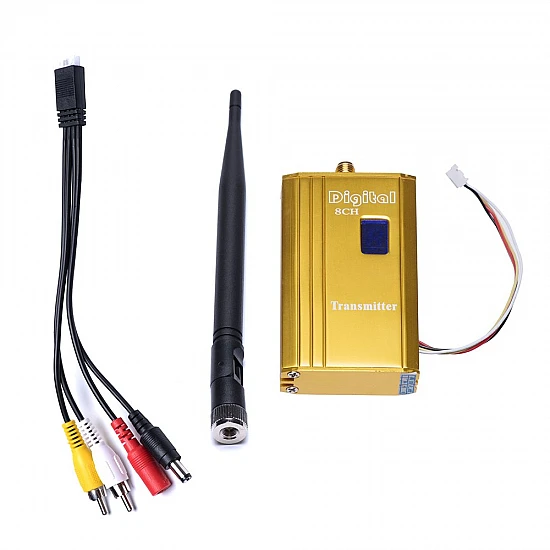

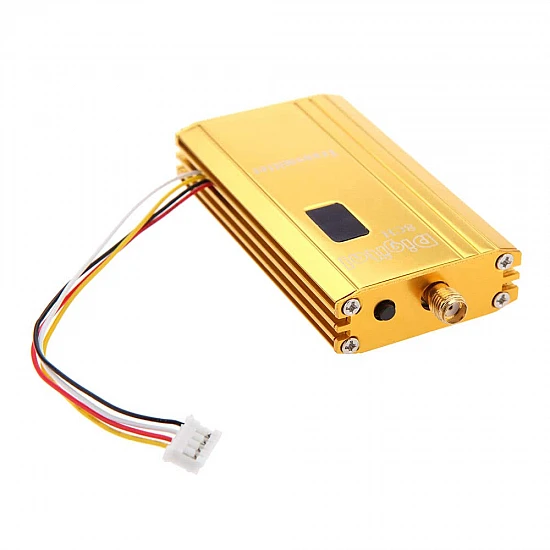

Transmitter:

• Input Voltage:12V
• Current: 500MA
• Transmit power: 2W (2000mW)
• Transmission distance (Open Space): 1km-5km(Theoretical distance)
• Gain directional antenna: 5-20km
• Transmitting Frequency:HC1:1080 HC2:1120 HC3:1160 HC4:1200 HC5:1240 HC6:1280  HC7:1320 HC8:1360(MHz)
• Frequency control: digital frequency locked loop control, lock the lock point.
• Dimensions: 73x41x14mm (LxWxH)
• Weight: 115g

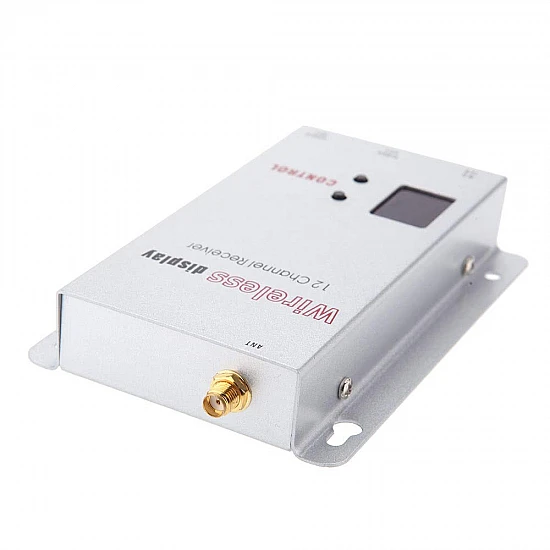

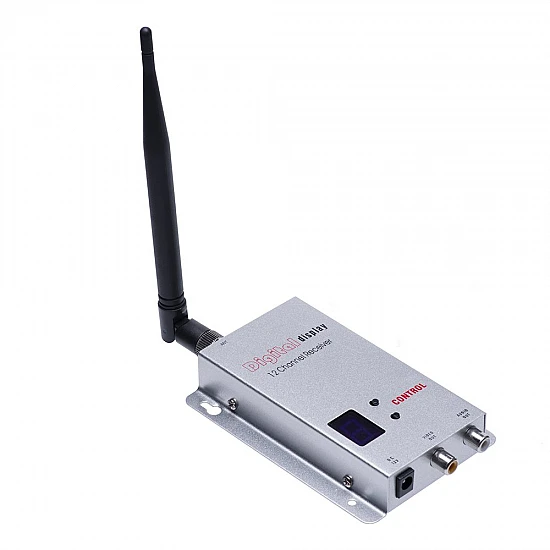

Receiver:

• Voltage: DC+12V
• Current: 2A
• Reception frequency: 0.9~1.2GHz
• The received signal: video, audio
• Reception sensitivity: -85dBm
• Video input level: 1Vp-p
• Audio input level: 1Vp-p
• Working humidity: 85%RH
• Dimensions: 115x60x20mm (LxWxH)
• Weight: 173g

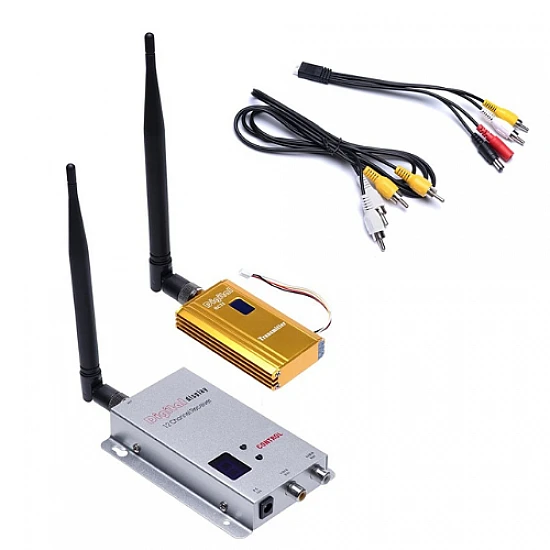

Package Includes:

1 x Transmitter

1 x Receiver

2 x Antenna

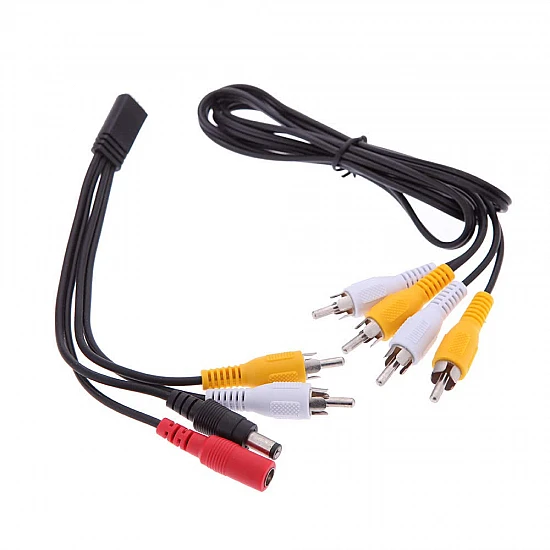

1 x Transmitter Converting AV cable.

1 x Receiver Converting AV cable.
