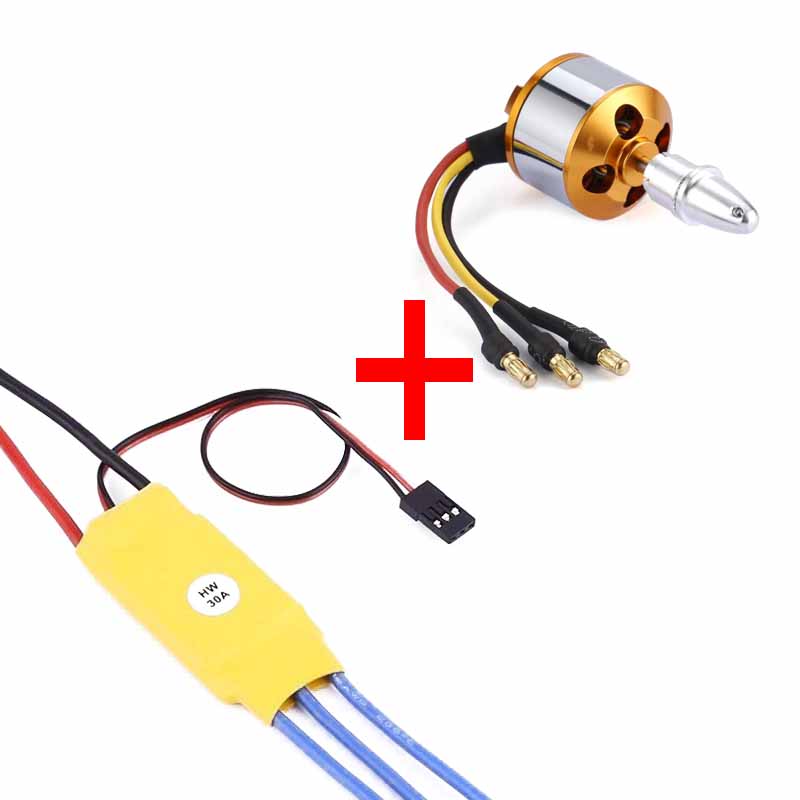

1000kv A2212 Brushless Motor with 30A ESC For RC Airplane / Quadcopter / Multirotor

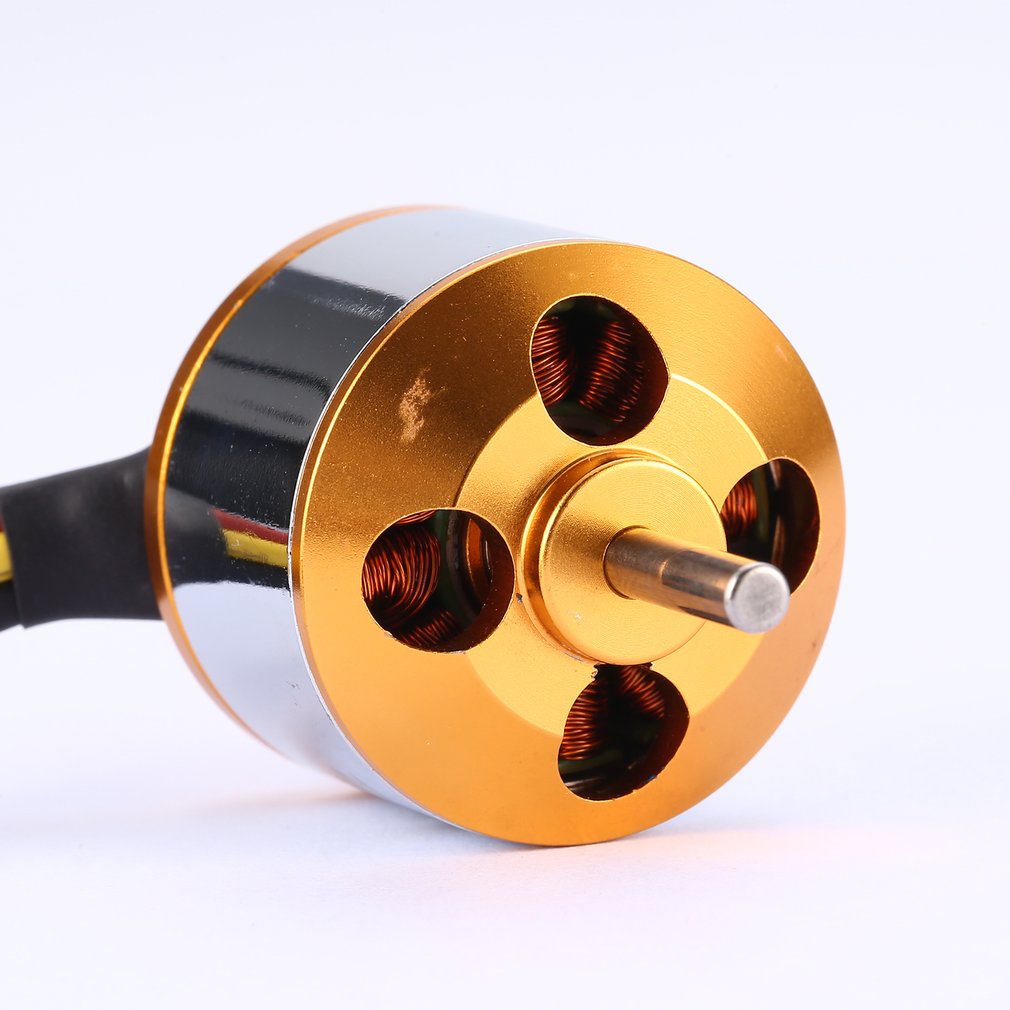

Motor:

Specifications:

Model NO.:  A2212

Dimension: 27.8*27mm

Shaft diameter: 3.17mm

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Weight: 65g

KV: 1000

Suitable for the propeller size: 1045, 1047,1060, 9050

ESC:

Description:

Brand Name: XXD

Item Name: HW30A ESC

Power input: 5.6V - 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)

BEC: 2A

Constant current: 30A (Max 40A less than 10 seconds)

Weight: 25g

Dimensions: 45 x 24 x 11mm

Features:

Safe power function:regardless of the throttle stick in any position the motor will not start immediately

Throttle Calibration function: Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speed

Low Voltage Protection Mode ,Low-voltage protection threshold

Pakacge Included:

1 x  30A Brushless ESC (with bullet connectors)

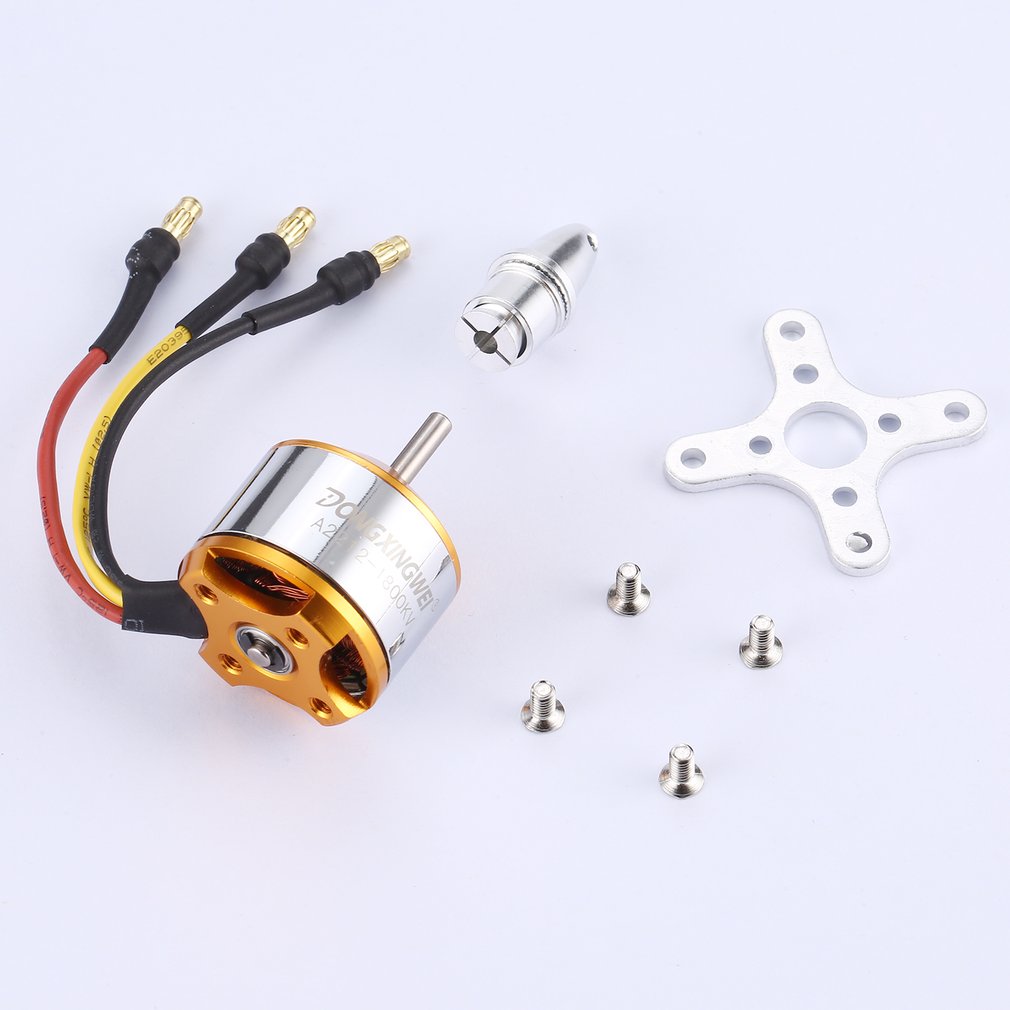

1 x A2212 1000KV Brushless Motor
