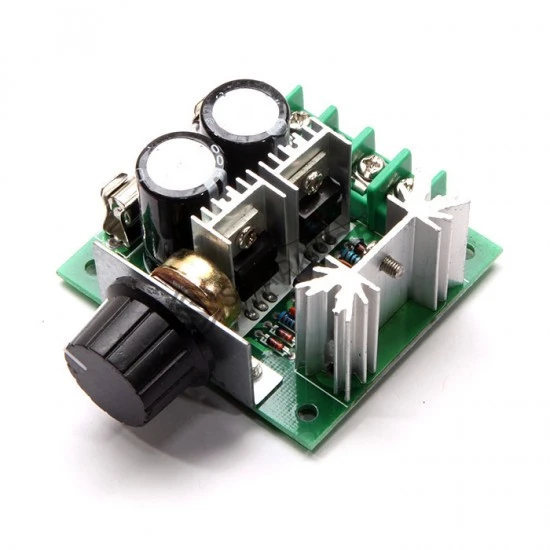

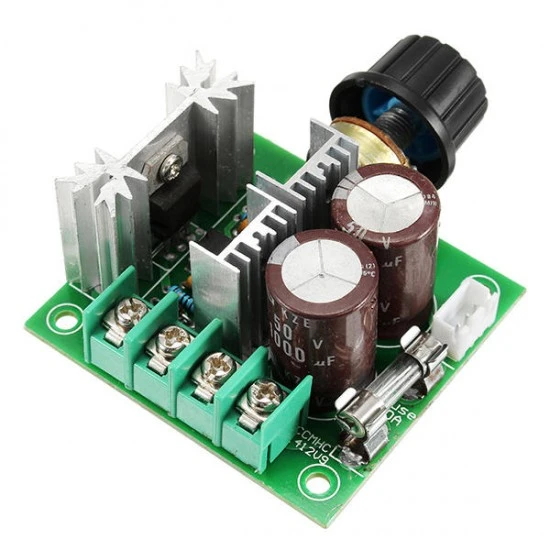

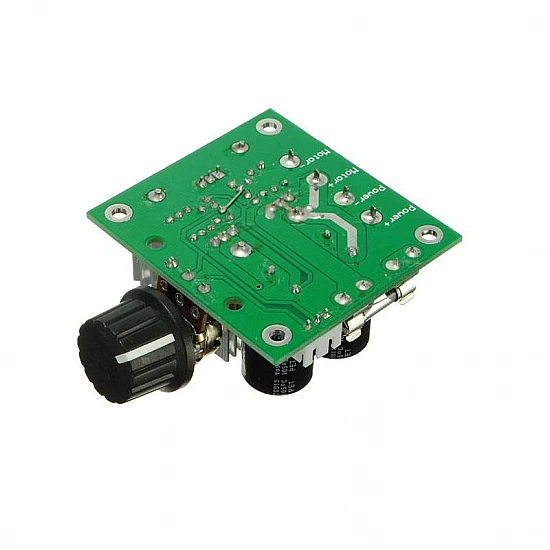

12-40V 10A DC Motor PWM Speed Controller Board Module

12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
-13 %
12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
12-40V 10A DC Motor PWM Speed Controller Board Module
₹225
₹259

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-722
    7 or more ₹220
    30 or more ₹217

High Power DC Motor Speed Controller lets you control the speed of a DC motor using a Pulse Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. It can be used to drive all DC Brushed Motors that work between 12V-40V DC and consume up to 10A of current.

Features:

  • Control the speed of a DC motor with this controller
  • High efficiency, high torque, low heat generating
  • With reverse polarity protection, high current protection
  • Low heat generating control the speed of a DC motor with this controller with reverse polarity protection,
  • High current protection working voltage

Applications:

  • For Speed Control Of all Types of DC Brush Motors
  • For Controlling Automotive Cooling Fan Speed, Auto Fan Speed, Windshield Wipers, Auto Air Conditioning.
  • For Controlling Belt Speed, Pipeline Exhaust Fan Speed, Treadmill Speed, Multi-Speed Parallel Computer Fan, Electronic Fan Speed.

Note:

  • This can NOT be used for the BRUSHLESS motor.
  • The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with the wrong polarity. Double-check all connections before applying power and For always turn off the power supply before making any wiring changes.

Package Includes:

1 x 12-40V 10A DC Motor PWM Speed Controller Board Module.



Technical
Duty Cycle Adjustable

10%-100%

Input Supply Voltage

DC 12-40V

Maximum Output Current

10A

Operating Temperature Range

-20 to 40℃

Power

400W

PWM Frequency

13kHz

Static Current

0.02 A (Standby)

Material

Plastic, Metal

Dimensions (LxWxH)

76x60x29 mm
