12864B V2.0 Graphic Blue Color Backlight LCD Display Module

The 12864B V2.0 is based on the ST7920 controller, which is commonly used for Arduino.

This display works on SPI. It is easy to use and compatible with the majority of microcontrollers out there. You can do a lot of graphics stuff with this display. You can create frames and even make small animations.

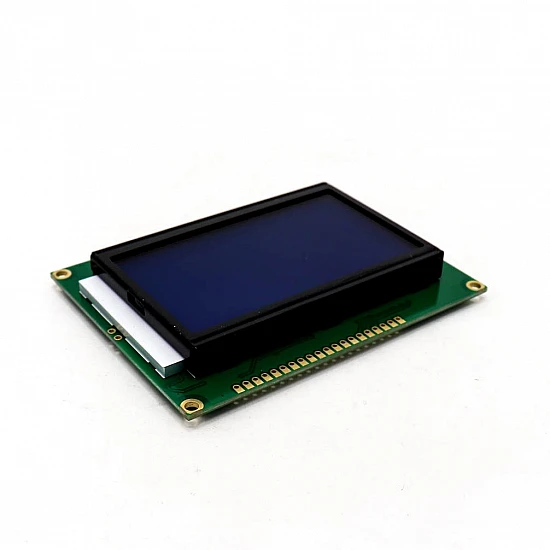

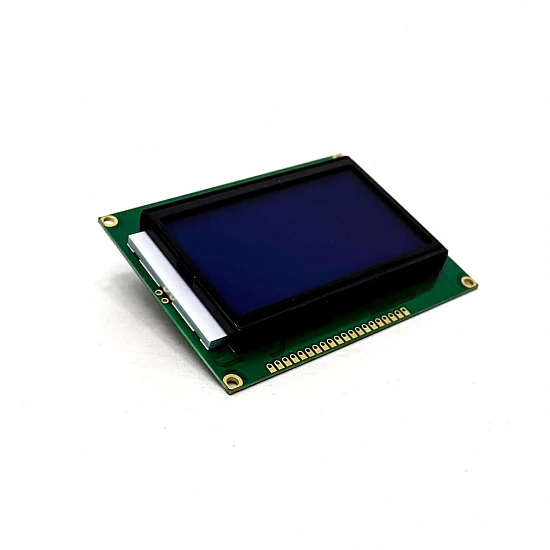

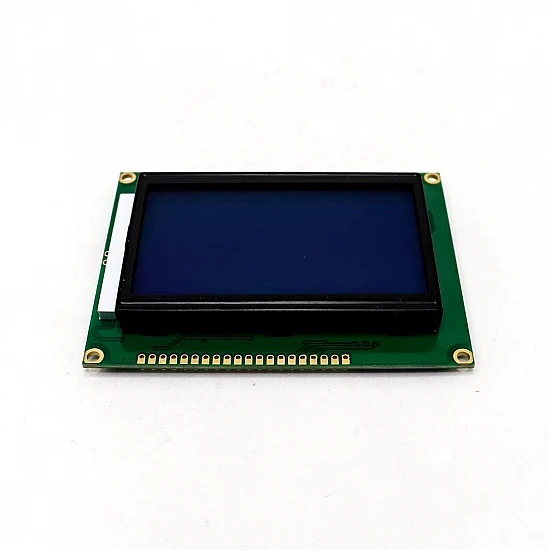

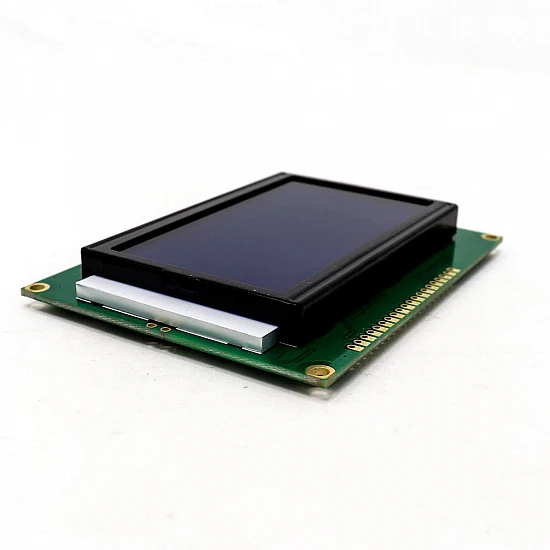

The 12864B Graphic LCD module is a 128 x 64 pixel LCD display with a blue backlight and white foreground. The display is fully programmable and can display a combination of both graphics and text. It can operate in both parallel and serial (SPI) modes which can be configured by the external pin PSB. In SPI mode only 3 data pins are required to drive this display.

Features:

• Blue background with 128 x 64 ‘monochrome’ white pixels
• Low power white LED back-light

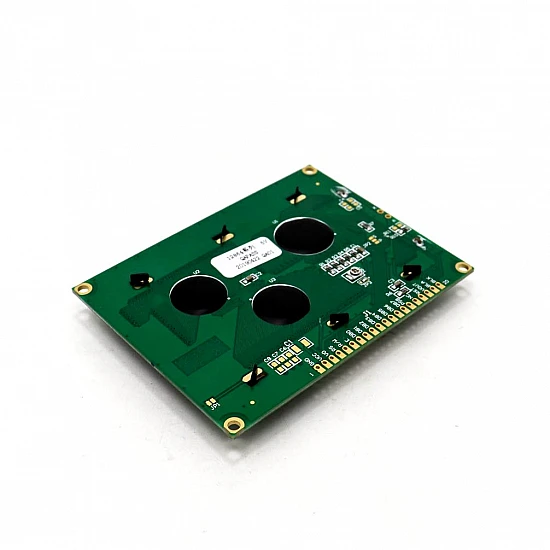

• The LCD is driven by an on-board 5V parallel interface chipset ST7920 controller
• PCB is 93mmx70mm (~ 3.66″ x 2.75″) and the viewing area is 71mmx39mm (2.8″ x 1.5″)
• Comes with a 36-pin 0.1″ header and a 10K contrast pot.

Package Includes:

1 x 12864B V2.0 Graphic Blue Color Backlight LCD Display Module
