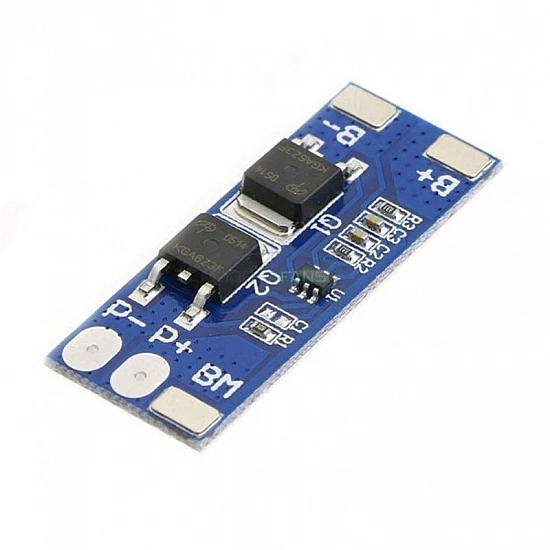

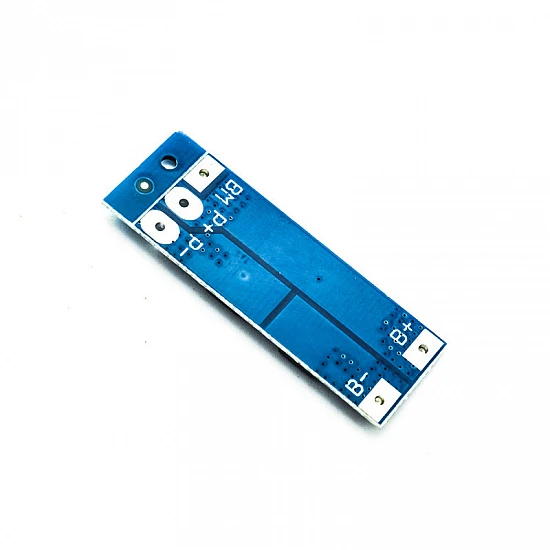

2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board

2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board
2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board
-65 %
2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board
2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board
2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board
₹48
₹139

(inc GST)

  • Stock: In Stock
  • SKU: FR-07-461
    10 or more ₹45
    50 or more ₹43

This is a BMS with a 10A current and 7.4V-8.4V voltage rating to charge 2 cells of Li-ion cells. Two batteries (18650) can be connected simultaneously to the HX-2S-D01 charge-discharge controller module. The module has protection against short circuits, overcharges, and over-discharges.

Features:

  • Model: HX-2S-D01
  • It is a small size design.
  • Simple and  convenient circuit for easy connections
  • Over-charge/Over-discharge Protection.

Package Includes:

1 x 2S 10A 7.4V-8.4V 18650 Lithium Battery Protection Board

Technical
Charging Voltage

8.4V-9V

Discharge voltage

2.5-3V±0.05V

Internal Resistance

<300mΩ

Operating Temperature Range

-40°C to +50°C

Dimensions (LxWxH)

40x16x4mm
