4 Keys 1x4 Matrix Membrane Switch Keypad

4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
-52 %
4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
4 Keys 1x4 Matrix Membrane Switch Keypad
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹43
₹88

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-759
    10 or more ₹41
    50 or more ₹39
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

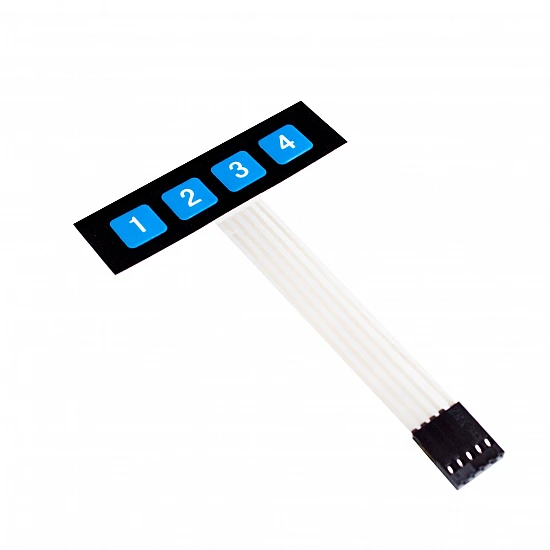

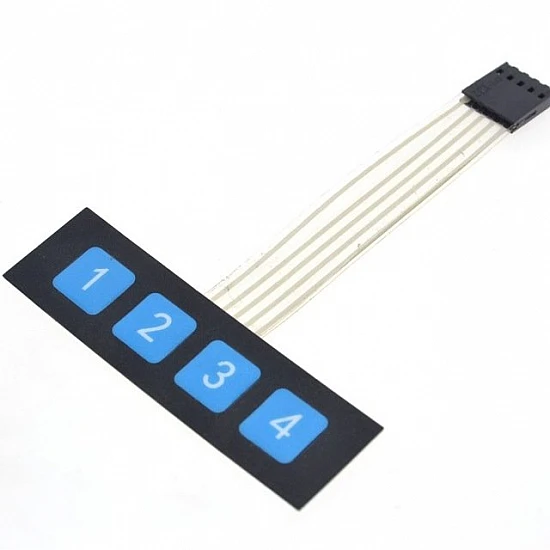

The Keypad1x4 features a total of 4 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 5-pin berg connector is required for interfacing it with your microcontroller circuits. A simple way to mount the keypad in a variety of applications, as it has an adhesive backing.

Features:

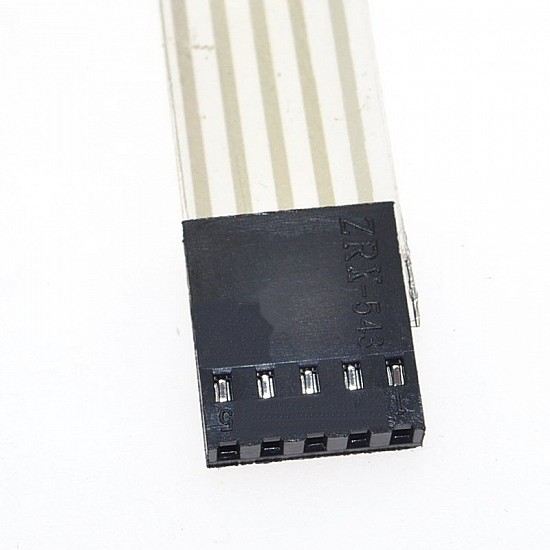

  • 5 pins 2.54mm pitch connector, 1x4 type 4 keys.
  • The sticker can peel off for adhesive mounting.
  • Easy communication with any microcontroller
  • Adhesive backing.
  • Used widely in industrial and home electronic equipment, instrument, etc.

Package Includes:

1 x 4 Keys 1x4 Matrix Membrane Switch Keypad
Technical
Contact Resistance

500Ω
Dielectric Strength

250VRms

Insulation resistance

100 MΩ
Operating Current

100 mA
Operating Temperature Range

-40°C to 85°C

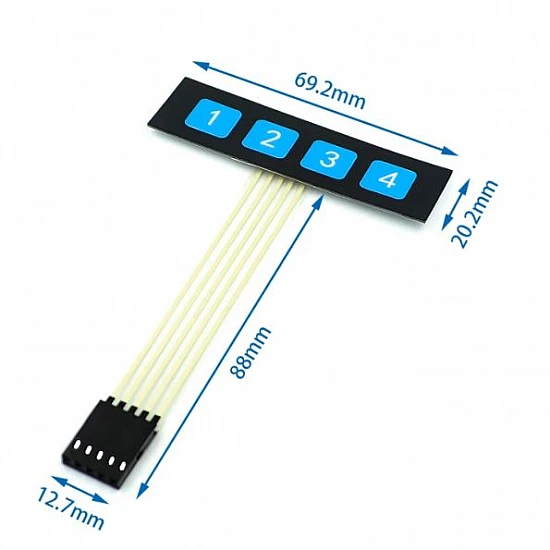

Pad Size

69mm x 20mm
Voltage

35V DC
Length

107 mm
Height

1 mm
