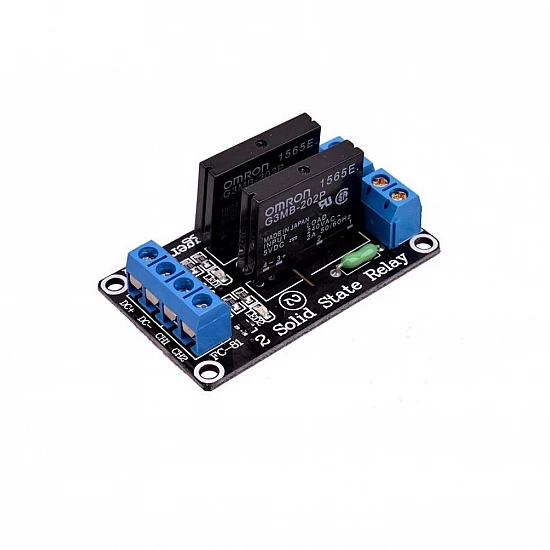

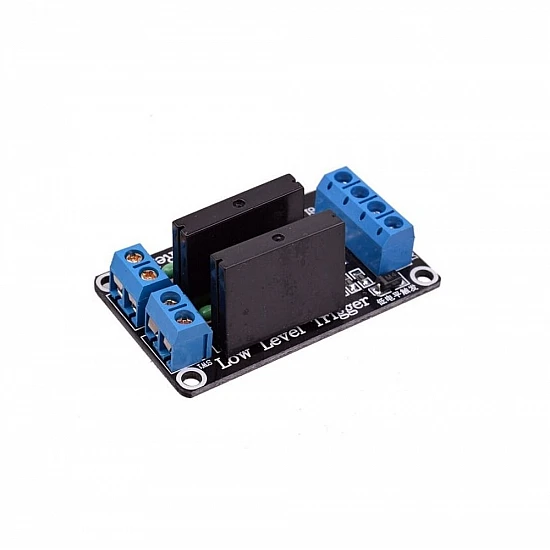

5V 2 Channel SSR Relay Module (Solid State Relay Module) with Fuse

This 5V 2 Channel SSR –  Solid State Relay Module 240V 2A Output. SSR relay which can control up to 2A at 240VAC. This is a 2 Channel SSR relay module which has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

Features:

• Compact size
• Totally silent operation
• Led indicator for each relay
• Fast switching speed
• Longer lifespan
• Inbuilt resistive fuse to protect from the excessive current drain
• Can be controlled directly by Arduino or other microcontrollers
• Can switch AC from 100V to 240V at 2A (max.)

Specification:

• Input rating
  • Supply voltage: 5V
  • Input switch voltage: 0V to 2.4V
  • Input release voltage: 3.5V to 5V
• Output rating
  • Rated load voltage: 100V to 240V
  • Load current: 0.10A to 2A
  • Surge current: 30A (60 Hz, 1 cycle
• Operating temperature range: -30℃ to 80℃
• Storage temperature: -30℃  to 100℃

Input section:

• DC+: Connect the positive pole of the power supply (powered by the relay voltage)
• DC-: Connected to the negative pole of the power supply
• CH: Relay module signal trigger terminal (low-level trigger is valid)

Note:

• The power supply must be DC, and the voltage should match the voltage of the relay.
• Please be careful when working with a high voltage AC load, please do not operate with power on.
• This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on.
• Due to the leakage current, we do not recommend you use this relay with low power appliances.

Package includes:

1 x 5V 2 Channel SSR Relay Module
