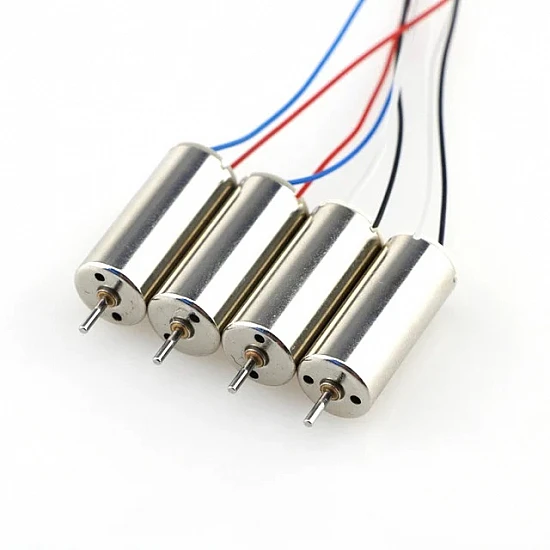

8520 Magnetic Micro Coreless Motor (2CW + 2CCW)

8520 Magnetic Micro Coreless Motor
8520 Magnetic Micro Coreless Motor
-44 %
8520 Magnetic Micro Coreless Motor
8520 Magnetic Micro Coreless Motor
8520 Magnetic Micro Coreless Motor (2CW + 2CCW)
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹444
₹799

(inc GST)

  • Stock: In Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-02-434
    7 or more ₹416
    30 or more ₹400
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors. This Magnetic Micro Coreless Motor for Micro FPV RC Quadcopter is a very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.

These are less noisy with low resistance. They are rated at 39000 RPM which is more than needed to lift and push your drone to the target. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.

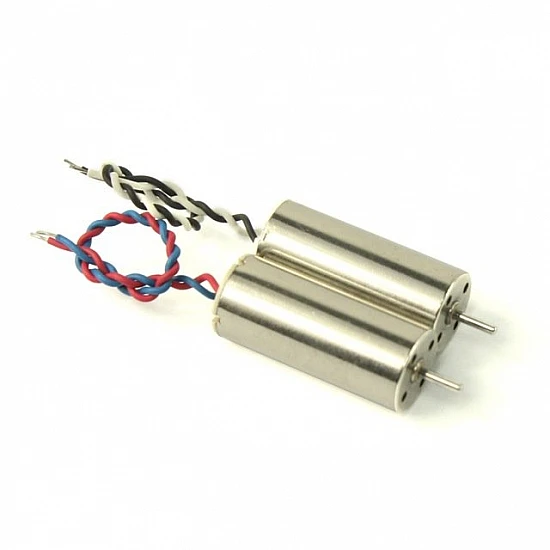

8520 Magnetic Micro Coreless Motor with Red and the Blue wire is CW rotation motor & Black and the White wire is CCW rotation motor.

Features:

  • High Speed and Low Torque motor.
  • Ideal for mini quadcopter projects weighing below 60 grams
  • Offers low resistance.
  • They are equipped with high-quality magnets.
  • Less noisy operation.
  • Usage: suitable for 90mm-150mm DIY Micro Quadcopter Frame Kits

Package Includes:

2 x 8520 Magnetic Micro Coreless Motor CW
2 X 8520 Magnetic Micro Coreless Motor CCW)

Technical
Diameter

0.8 cm
Operating Temperature Range

-20 to 60 °C
Supply Voltage

3.7 V
Material

Metal
Length

1.8 cm
Questions3 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?469
Log In to Add an Answer
Rpm of this motor
Mention motor rpm
Vikram
  • 8520 Magnetic Micro motor has 39000 RPM
    FlyRobo[ 22/08/2023 ]
    Was this answer helpful?4
Log In to Add an Answer
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1263
Log In to Add an Answer
Showing 1 to 3 of 3 (1 pages)

Write a review

Note: HTML is not translated!
Bad Good
Captcha
Tags: 8520 Magnetic Micro Coreless Motor , Brushless Motor 8520 magnetic micro coreless motor , micro motor , magnetic motor , 8520 coreless motor , coreless motor
