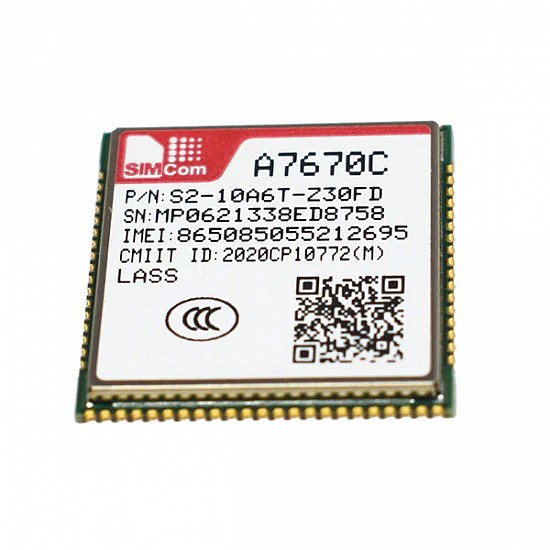

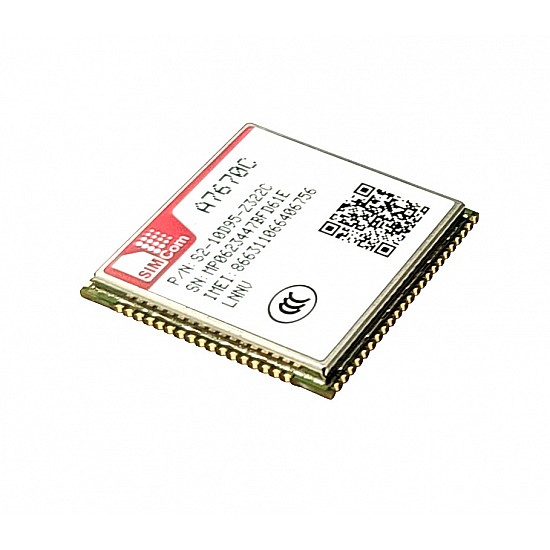

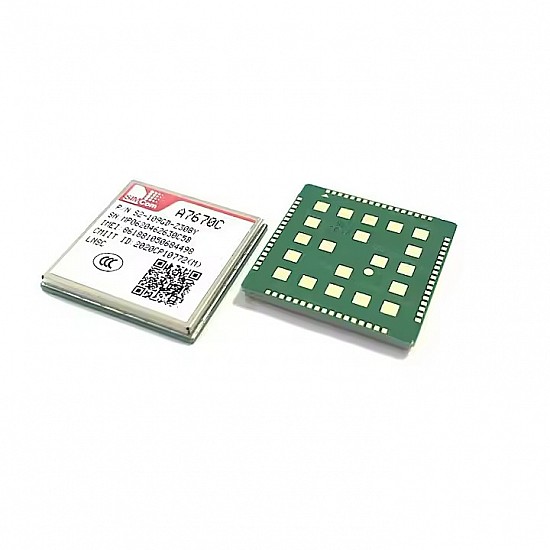

The A7670C-LANS is a compact 4G LTE module designed for IoT applications, featuring optional voice and positioning capabilities. It supports multi-band LTE Cat 1 connectivity for stable and efficient communication. With GPS/GLONASS positioning, it enables real-time tracking and location-based services. The module is optimized for low power consumption, making it ideal for smart meters, asset tracking, and remote monitoring. It offers various interfaces for easy integration with IoT systems. Built with industrial-grade reliability, it ensures seamless operation in diverse environments.
Features:
- LTE Cat-1 network
- 4G LTE Connectivity
- Optional Voice Capability
- Integrated GPS/GLONASS/BeiDou for real-time location tracking
- Compact Design
- Low Power Consumption
- Works with multiple bands for global deployment and seamless connectivity
Package Includes:
1 x A7670C-LANS 4G Module Optional Voice Positioning For IOT Communication
Technical | |
Supply Voltage | 3.4V ~4.2V, |
Transmitting Power | GSM/GPRS power level: -- GSM850/900: 4 (33dBm±2dB) -- DCS1800/PCS1900: 1 (30dBm±2dB) EDGE power level: -- GSM850/900: E2 (27dBm±3dB) -- DCS1800/PCS1900: E1 (26dBm+3dB/-4dB) LTE power level: 3 (23dBm±2.7dB) |
Length | 24mm |
Height | 2.4mm |
Width | 24mm |
