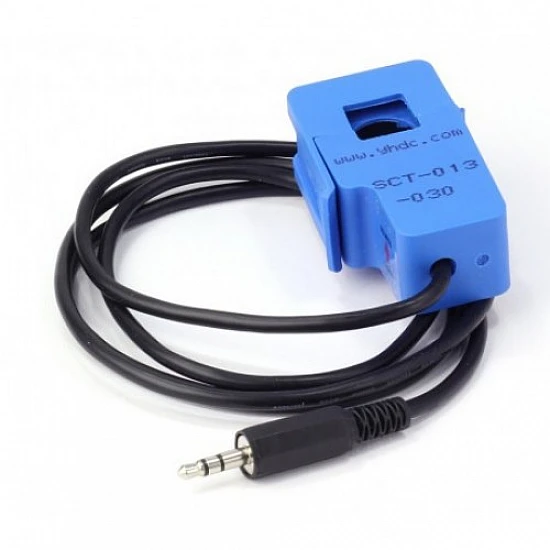

AC Current Sensor Clamp Sensor 30A SCT-013-030 Non-invasive

This non-invasive current sensor clamped around the supply line can measure a load up to 30 Amps.  It can be useful for building your own energy monitor or for building an over-current protection device for an AC load.

This current clamp can be used to detect a current of up to 30A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).

Use:

• Lighting equipment
• Suitable for the current measuring.
• Air compressor
• Monitoring and protection of AC motor

Features :

• Two forms of output current, voltage (voltage output built-in the sampling resistor)
• Meet UL94-V0 flame retardant properties
• Non-invasive current transformer
• Output Plug 3.5mm.
• Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
• Meet UL94-V0 flame retardant properties
• Non-linearity ±3%(10%-120% rated input current)

Package Content:

1 x  AC Current Sensor Clamp Sensor 30A SCT-013-030 Non-invasive
