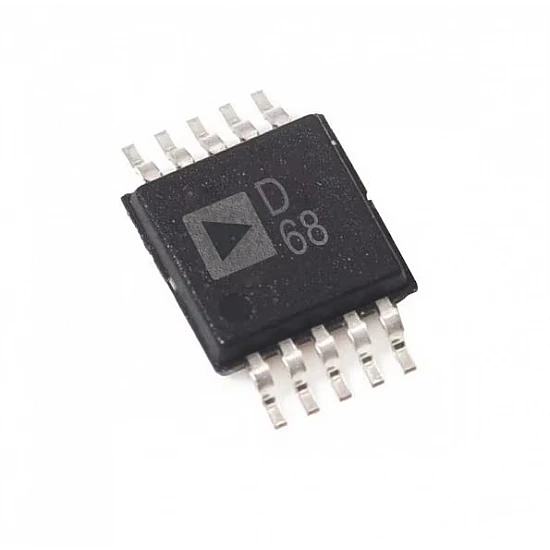

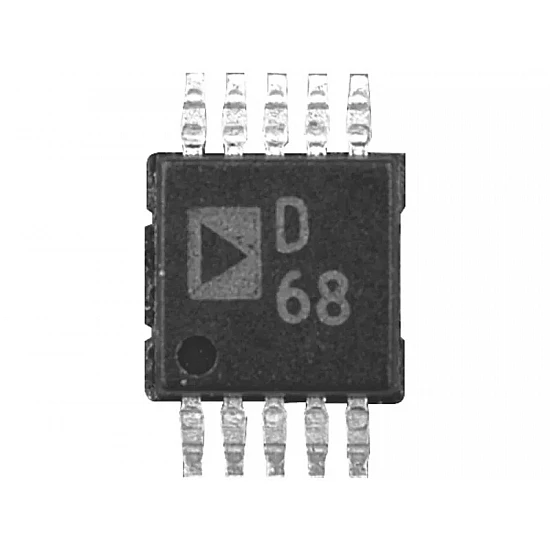

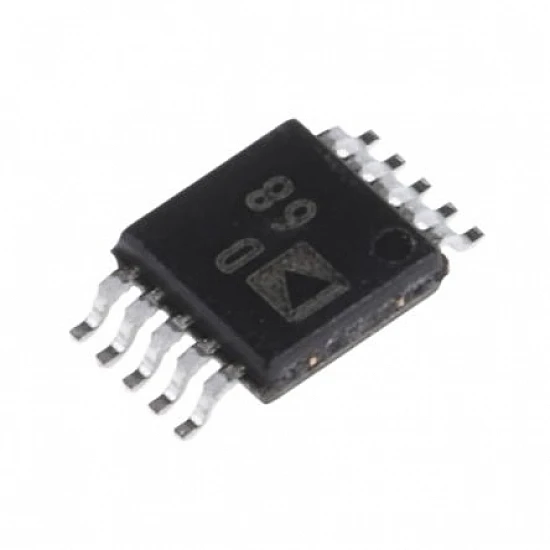

AD9833BRMZ D68 MSOP-10 Programmable Waveform Generator Chip

The AD9833BRMZ is a compact MSOP-10 programmable waveform generator chip ideal for signal generation applications. It operates with a 25 MHz clock frequency, delivering precise sine, square, and triangular waveforms. This device features low power consumption and operates with supply voltages between 2.3V to 5.5V, making it suitable for battery-powered systems. With on-chip registers programmable via SPI, it offers flexible frequency and phase modulation. Applications include sensor excitation, signal synthesis, and function generation. Its small size and robust functionality make it ideal for portable and space-constrained designs.

Features:

• 2.3V to 5.5V
• MSOP-10 package
• Output frequencies from 0 Hz to 12.5 MHz
• Supports sine, square, and triangular waveform outputs
• Controlled via a 3-wire SPI-compatible interface
• 28-bit resolution
• Digital-to-analog converter

Package Includes:

1 x AD9833BRMZ D68 MSOP-10 Programmable Waveform Generator Chip
