ADUM3160 1 Channel USB to USB Voltage Isolator Module

ADUM3160 1 Channel USB to USB Voltage Isolator Module
ADUM3160 1 Channel USB to USB Voltage Isolator Module
ADUM3160 1 Channel USB to USB Voltage Isolator Module
Out Of Stock
ADUM3160 1 Channel USB to USB Voltage Isolator Module
ADUM3160 1 Channel USB to USB Voltage Isolator Module
ADUM3160 1 Channel USB to USB Voltage Isolator Module
ADUM3160 1 Channel USB to USB Voltage Isolator Module
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹1,349

(inc GST)

  • Stock: Out Of Stock
  • ₹13 FlyRobo Cashback.
  • SKU: FR-01-256
    5 or more ₹1,196
    15 or more ₹1,111
FlyRobo FlyRobo
Add to Cart
Buy Now Notify When Available
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

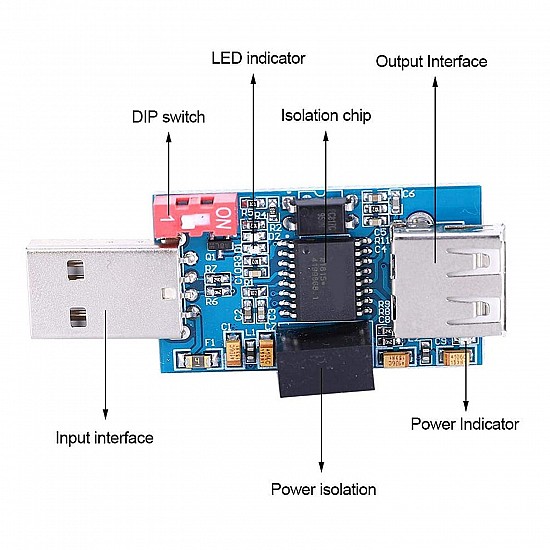

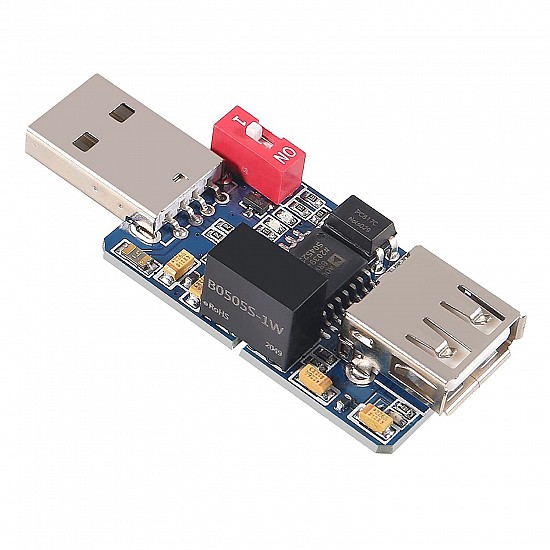

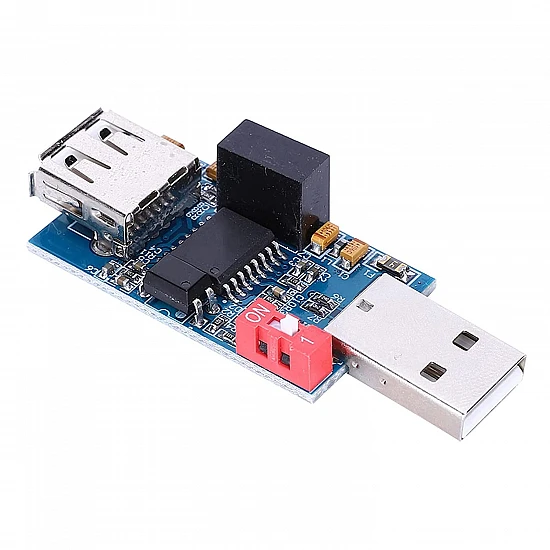

ADUM3160 1 Channel USB to USB Voltage Isolator Module compatible with USB 2.0, provides fully isolated 1.5 Mbps and 12 Mbps data rates, isolated 1500V voltage. The USB port is protected from external power and signals, and the computer's USB port and computer motherboard are escorted.

Features:

  • 1 Channel ADUM3160
  • It is compatible with USB2.0
  • Power supply: from the USB port to the PC host.
  • Driver free, it is more convenient to use.
  • Support USB control transmission, batch transmission, interrupt transmission, synchronous/isochronous transmission

Package Includes:

1 x ADUM3160 1 Channel USB to USB Voltage Isolator Module.

Technical
Input Voltage

DC 5V
Isolation Voltage

ADUM3160 is 2500V
Operating Temperature Range

- 40°C to 85°C

Power Module Isolation Voltage

1500V
Power supply

USB port to the PC host

Length

56mm
Height

14.5mm
Width

23mm
