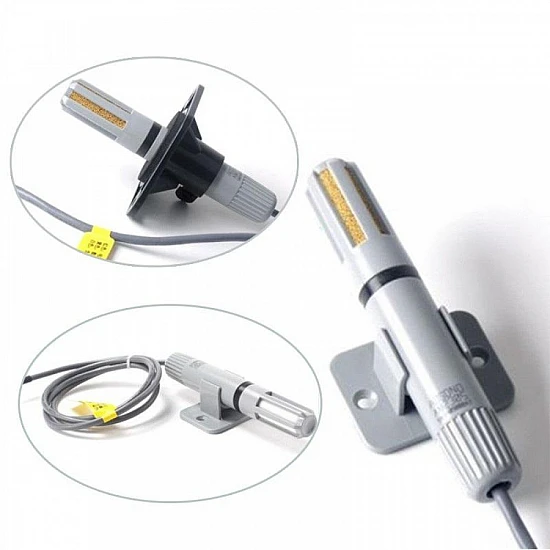

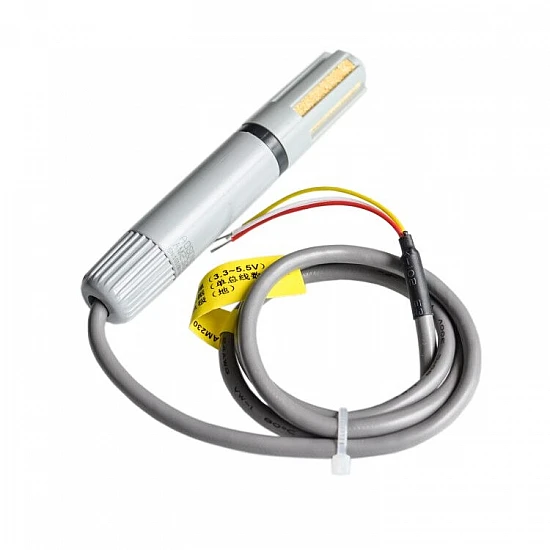

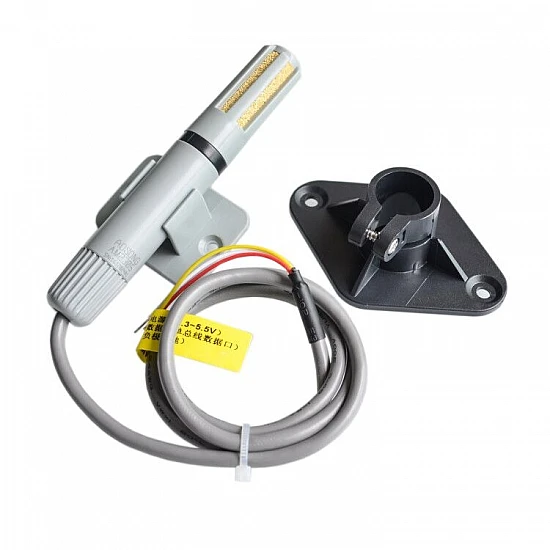

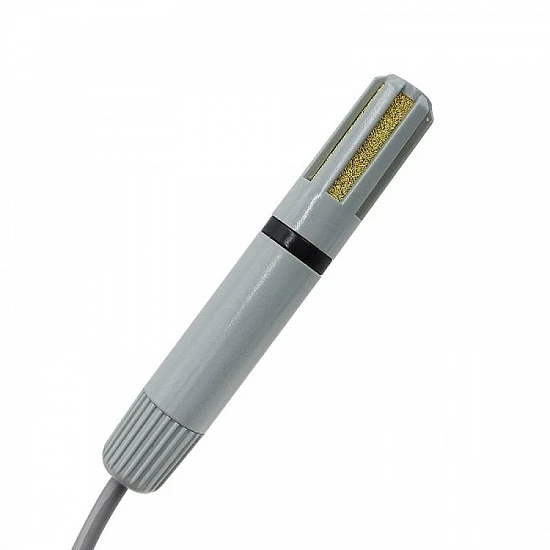

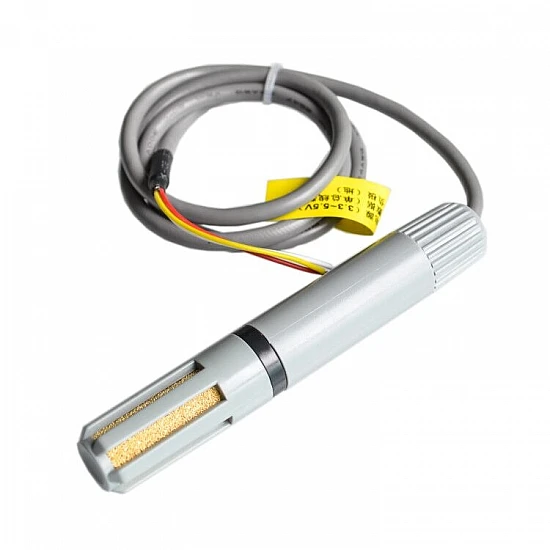

AM2305 Digital Temperature and Humidity Sensor

AM2305 Digital Temperature and Humidity Sensor is a calibrated digital signal output of the temperature and humidity combined sensor. It uses a dedicated digital modules capture technology and temperature and humidity sensor technology to ensure that products with high reliability and excellent long-term stability.

The sensor includes a capacitive humidity sensing element and a DS18B20 temperature measurement device, and a high-performance 8-bit microcontroller connected. Therefore, the product has excellent quality, anti-interference ability, high cost, and other advantages. Each AM2305 sensor is calibrated in a precision humidity calibration chamber.

Calibration coefficients stored in the form of a program OTP memory, internal sensor detection signal in the process to call these calibration coefficients. Single-wire serial interface, the system integration becomes simpler and quicker. Ultra-small size, low power consumption, signal transmission distance up to 20 meters, making all kinds of applications and even the most demanding applications the best choice is. Products for the 4-pin single row pin package. Easy connection, special packages according to user needs, and available.

Feature:

• Relative humidity and temperature measurements, all calibration, digital output
• Excellent long-term stability
• No additional components
• Fast response
• Anti-interference ability
• Long-distance signal transmission
• Ultra-low-power

Applications:

• Environmental monitoring
• Ventilator / respirator
• Anesthesia machine
• Spraying machine
• Medical apparatus and instruments
• The automatic control
• Experimental apparatus

Package Includes:

1 x AM2305 Digital Temperature and Humidity Sensor.
