AS5600 Magnetic Encoder Induction Angle Sensor

AS5600 Magnetic Encoder Induction Angle Sensor recognizes changes in the magnetic field as information about the rotational position transforms those changes into electrical signals, and outputs those signals. The Hall element is a magnetic sensor that outputs a voltage proportional to the strength of the magnetic field by utilizing the Hall effect phenomenon.

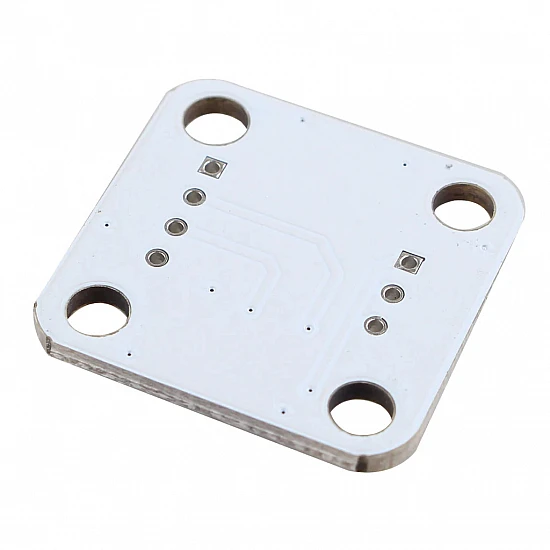

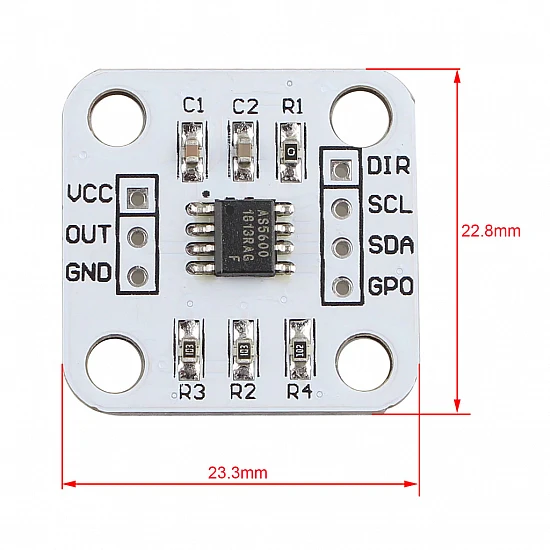

Pins:

• VCC: 3.3V
• GND: Power ground
• Out: PWM / analog voltage output
• DIR: Direction of rotation (earth = increases clockwise value; then VCC = clockwise, values ??are decreasing)
• SCL: IICThe communication clock line
• SDA: IICData communication line
• GPO: Mode selection (internal traction field = mobk programming)

Features:

• 12-bit DAC output resolution
• Non-contact magnetic induction angle measurement module.
• High precision, a variety of output modes: IIC, PWM, and voltage.

Package Includes:

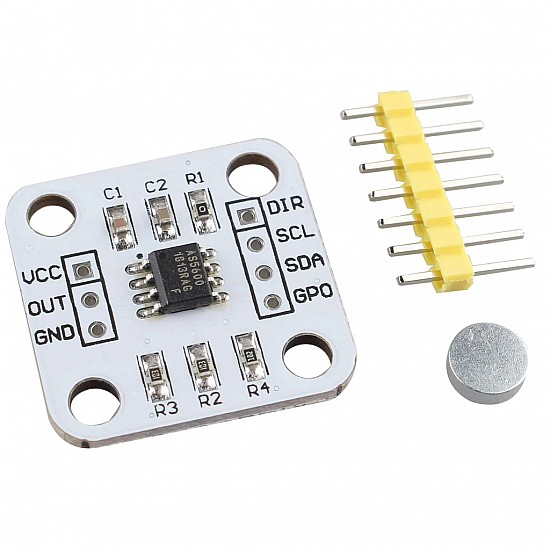

1 x AS5600 Magnetic Encoder Induction Angle Sensor
