Unleashing the Power of ESP8266 ESP-01: A Quick Guide

IoT enthusiasts and hobbyists in electronics have access to a plethora of new possibilities with the ESP8266 ESP-01, a small and reasonably priced WiFi module. We'll walk you through the fundamentals of configuring and utilizing the ESP8266 ESP-01 in this brief tutorial.

What is ESP8266 ESP-01?

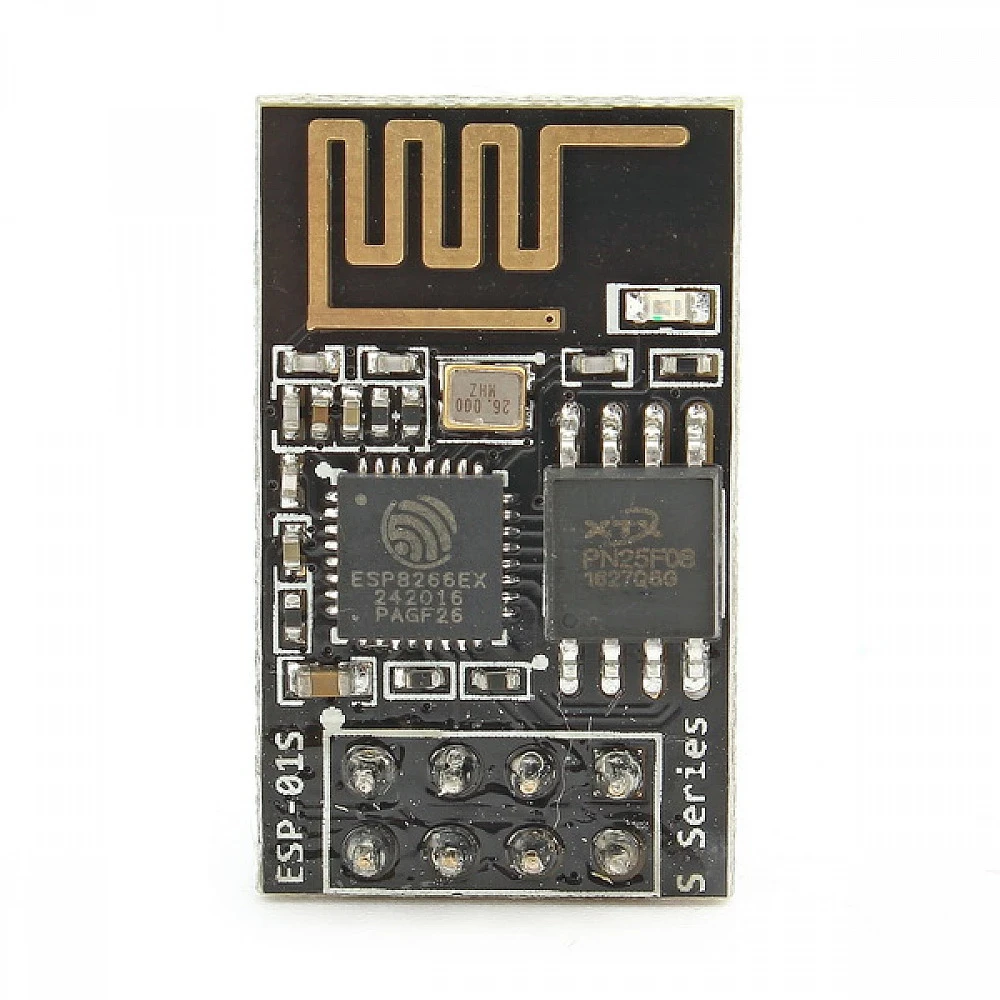

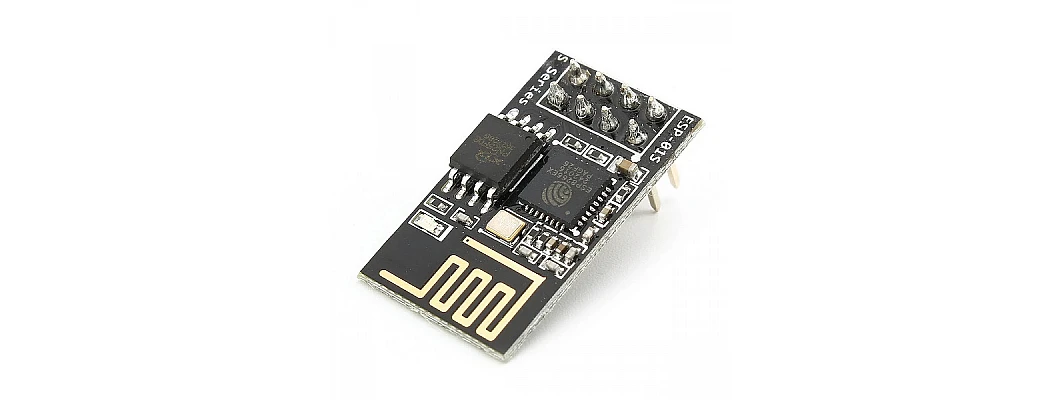

The ESP-01 is a small WiFi module based on the ESP8266 chip. Despite its size, it packs a punch, allowing you to add WiFi connectivity to your projects without breaking the bank.

Getting Started

Hardware Required:

• ESP8266 ESP-01 module
• USB to UART adapter
• Breadboard and jumper wires

Step 1: Connect the Hardware

• Connect the ESP-01 module to the USB to UART adapter as follows:
  • ESP-01 RXD to USB adapter TX
  • ESP-01 TXD to USB adapter RX
  • ESP-01 VCC to USB adapter 3.3V
  • ESP-01 GND to USB adapter GND
  • Enable programming mode by connecting GPIO0 to GND

Step 2: Install Arduino IDE and ESP8266 Board Support

• Download and install the Arduino IDE from the official website.
• Open Arduino IDE, go to File > Preferences, and enter http://arduino.esp8266.com/stable/package_esp8266com_index.json into the "Additional Boards Manager URLs" field.
• Go to Tools > Board > Boards Manager, search for "esp8266" and install the ESP8266 board support.

Step 3: Upload a Simple Sketch

• Write a basic sketch to blink an LED connected to GPIO2.

void setup() { pinMode(2, OUTPUT); } void loop() { digitalWrite(2, HIGH); delay(1000); digitalWrite(2, LOW); delay(1000); }

• Select the correct board and port under Tools > Board and Tools > Port.

• Upload the sketch to your ESP-01.

Testing Connectivity

Once you've uploaded the sketch, disconnect GPIO0 from GND, power cycle the ESP-01, and open the Serial Monitor. You should see the LED blinking at one-second intervals.

Next Steps

Now that you've successfully set up your ESP8266 ESP-01, the possibilities are endless. You can explore:

• Connecting sensors and creating IoT devices.
• Building a web server on the ESP-01 for remote control.
• Integrating MQTT for communication between devices.

Feel free to experiment and explore the vast online resources and communities dedicated to ESP8266 development. Happy coding!
