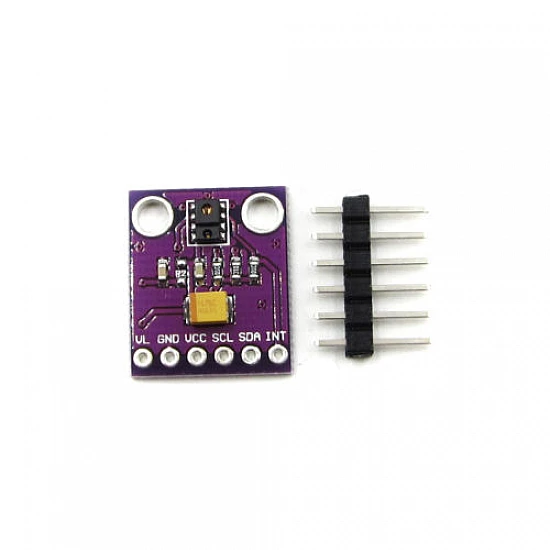

CJMCU-9900 APDS9900 Digital Ambient Light Proximity Sensor Module

This is CJMCU 9900 APDS-9900 Digital Proximity And Ambient Light Sensor For Arduino. The APDS-9900 provides digital ambient light sensing (ALS), IR LED, and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and plays detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.

The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone.

In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photopic response to light intensity in very low light conditions or behind a dark faceplate.

Features:

• Optical modules integrated with ALS, infrared LEDs, and proximity detectors
• Ambient Light Sensing (ALS)
• Approximate human visual response
• Programmable interrupt capability with upper and lower thresholds
• Up to 16-bit resolution
• High sensitivity operation behind dark glass
• 0.01lux low lumen performance
• Proximity detection
• Fully calibrated to 100 mm detection
• Integrated infrared LED and synchronous LED driver
• Eliminates factory calibration of the proximity sensor
• Programmable wait timer
• Wait for state power consumption – 90μA typical
• Programmable range from 2.7 ms to more than 8 seconds
• I2C interface compatible
• Up to 400kHz (I2C fast mode)
• Dedicated interrupt pin.

Applications:

• Adjustable light mobile phone backlight
• Notebook / display security
• automatically enabled hands-free mode
• An automatic menu pops up
• Digital camera eye sensor.

Package Includes:

1 x CJMCU 9900 APDS-9900 Digital Proximity And Ambient Light Sensor.
