Smart Dustbin Project Components - Arduino Project

Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
-40 %
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Components for Smart Dustbin Project
Smart Dustbin Project Components - Arduino Project
5
Based on 1 reviews. - Write a review
 / Ask a Question
₹1,199
₹1,999

(inc GST)

  • Stock: In Stock
  • ₹11 FlyRobo Cashback.
  • SKU: FRC-01-490
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

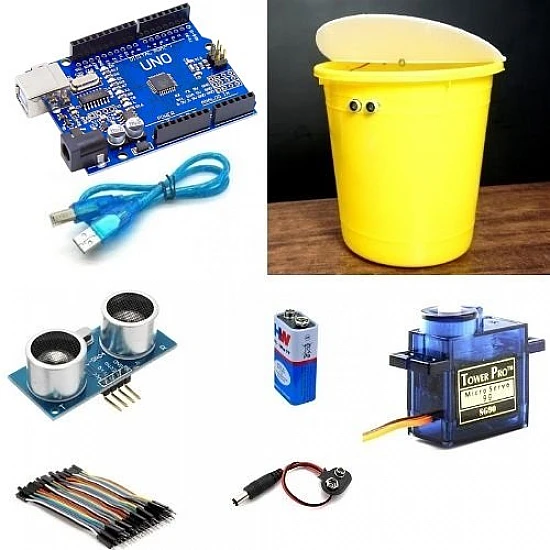

This combo contains all products needed to make a smart dustbin that opens automatically when someone comes near the dustbin.

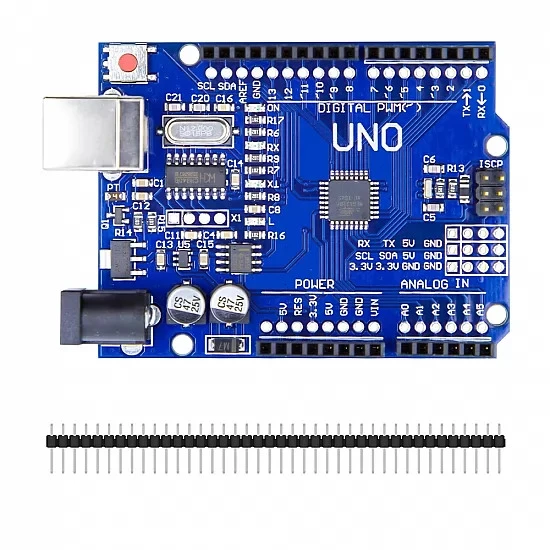

The Arduino Uno R3 Compatible Board is a microcontroller board that is based on the ATmega328. Arduino Uno has 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

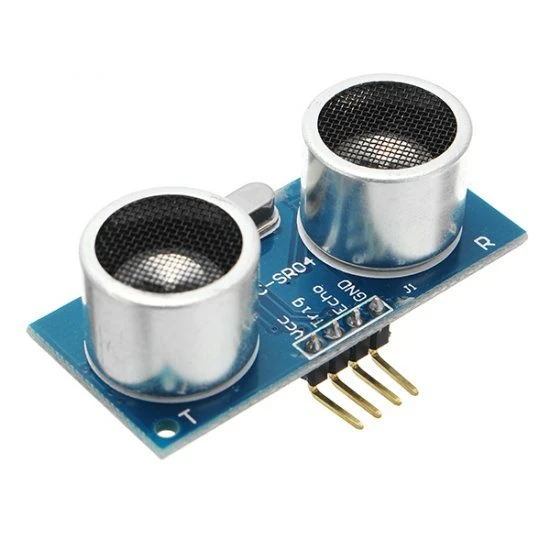

This HC-SR04-Ultrasonic Distance Measuring Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detecting objects. The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do. The module has two eyes-like projects in the front which form the Ultrasonic transmitter and Receiver.

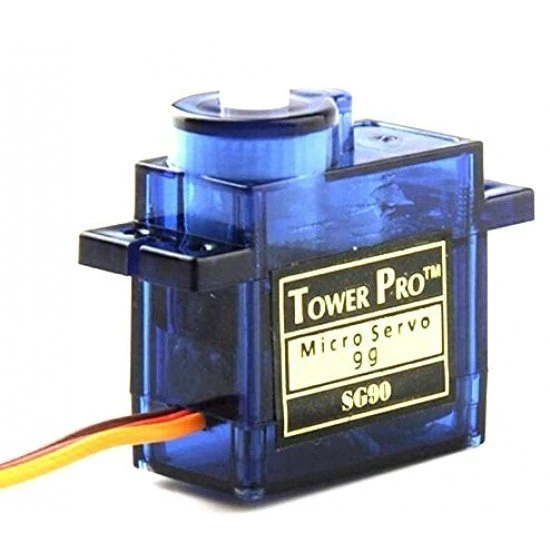

The Micro Servo 9G is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight.

This is the combo of 20CM Wire Color Jumper Cable, M-M, M-F, F-F 10PCS of wire in each strip of cable. It is very flexible and easily detachable to no. of wires to your requirement. Mostly it can be used for Orange Pi, Banana Pi, Raspberry Pi, Arduino, and other mini PC and development boards.

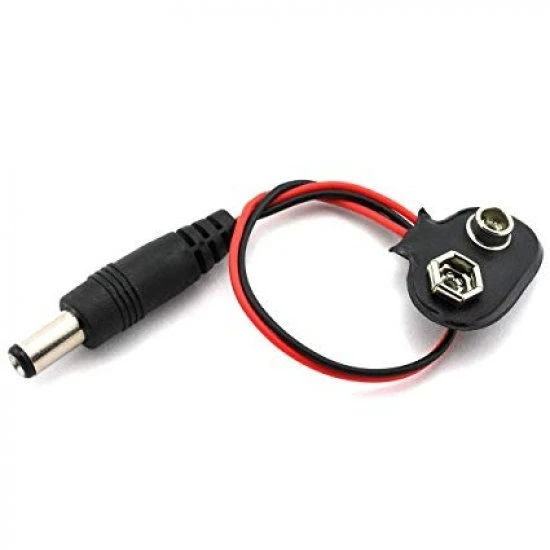

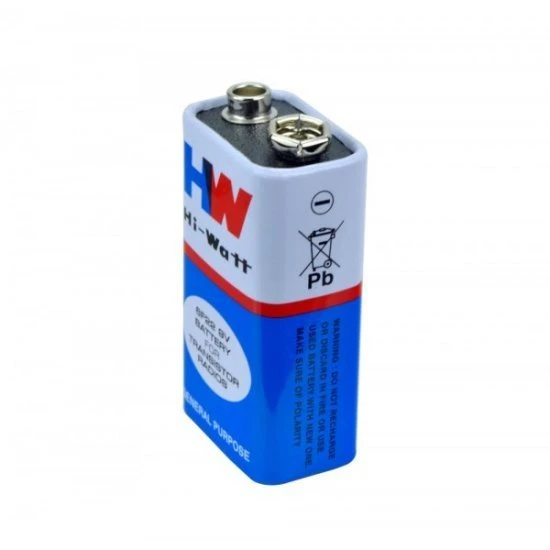

This is a general 9v Battery With a Battery Snap Connector to a DC barrel jack adapter for all your project and application needs. One can use this adapter to power up any DC barrel jack-based power connector using a standard 9V battery.

Package Includes:

1 x Arduino Uno R3 SMD Compatible Development Board with Cable

1 x Ultrasonic Module HC-SR04 Distance Measuring Sensor

1 x Tower Pro 9G Micro Servo Motor

1 x Battery 9V With Barrel Jack Connector

1 x Combo of 3 type Jumper Cables | F-F | F-M | M-M







Code for the Smart Dustbin:

Do not forget to install Servo.h Library. without this library, code will not compile in Arduino IDE software.

For more details please check this article on Smart Dustbin.





Arduino
Clock Speed

16 MHz
Flash Memory

32 KB
Input Voltage

7-12V (Recommended)
Microcontroller Chip

ATmega328
Model Type

UNO Rev R3
Servo Motor
Model

SG-90
Operating Voltage

4.8-6 V
Questions12 Answers12 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?470
Log In to Add an Answer
Include coding in Arduino Uno ??
I purchas this project but I don't think Arduino Uno coding in including this Arduino
Kharva Manav

  • Dear Sir,

    Arduino board is not pre-coded. You need to upload the code by yourself. This process is very easy. if you did not know how to do it Please mail us at [email protected] we will guide you for the same.

    FlyRobo[ 09/02/2022 ]
    Was this answer helpful?3
Log In to Add an Answer
For which max size dustbin these components are capable
For 2 feet height dustbin will it work properly????
Himanshu Singh
  • The size of the dustbin does not matter. The moving part in the dustbin is its cap. if the size of the dustbin is big but you can make its cap a little small cap, so that Tower Pro servo can move it easily.
    Flyrobo[ 25/05/2023 ]
    Was this answer helpful?2
Log In to Add an Answer
Dustbin are available in kit
Aniket Laxman Patil
  • No, Dustbin will not comes with it.
    FlyRobo[ 19/07/2022 ]
    Was this answer helpful?2
Log In to Add an Answer
It also give bucket
Amit Prasad
  • No, bucket will not comes with it.
    FlyRobo[ 10/05/2022 ]
    Was this answer helpful?2
Log In to Add an Answer
what about code to run the project
i need complete code to run the projec and i need you to add a new small feature for it is it possible
praveen kumar

  • Here is the code to for the smart ductbin.

    You can modify this code as per your use.



    Do not forget to install the servo library.

    #include    //servo library
Servo servo;
int trigPin = 5;
int echoPin = 6;
int servoPin = 7;
int led= 10;
long duration, dist, average;
long aver[3];   //array for average


void setup() {
    Serial.begin(9600);
    servo.attach(servoPin);
    pinMode(trigPin, OUTPUT);
    pinMode(echoPin, INPUT);
    servo.write(0);         //close cap on power on
    delay(100);
    servo.detach();
}

void measure() {
 digitalWrite(10,HIGH);
digitalWrite(trigPin, LOW);
delayMicroseconds(5);
digitalWrite(trigPin, HIGH);
delayMicroseconds(15);
digitalWrite(trigPin, LOW);
pinMode(echoPin, INPUT);
duration = pulseIn(echoPin, HIGH);
dist = (duration/2) / 29.1;    //obtain distance
}
void loop() {
  for (int i=0;i<=2;i++) {   //average distance
    measure();
   aver[i]=dist;
    delay(10);              //delay between measurements
  }
 dist=(aver[0]+aver[1]+aver[2])/3;

if ( dist<50 ) {
//Change distance as per your need
 servo.attach(servoPin);
  delay(1);
 servo.write(0);
 delay(3000);
 servo.write(150);
 delay(1000);
 servo.detach();
}
Serial.print(dist);
}
    FlyRobo[ 27/11/2021 ]
    Was this answer helpful?-2
Log In to Add an Answer
Is the bin is given to me if I purchase it???
I mean the yellow
Sayan Adak
  • You will receive only electronic components. Dustbin is not included in product.
    FlyRobo[ 06/12/2022 ]
    Was this answer helpful?-5
Log In to Add an Answer
This is just a components or you will assemble all the components and provide it us a working model
Muthu Prabhu N

  • No, this kit comes with components. You are required to assemble it.

    You can also mail us at [email protected] for technical support and assembling instruction.


    FlyRobo[ 26/03/2022 ]
    Was this answer helpful?-5
Log In to Add an Answer
do we need to assemble it or it's pre-assembled
saiteja
  • No, these are just components to make a smart dustbin. You need to assemble it. Note: Dustbin dose does not come with this product.
    To check the all components that come with this kit, kindly check the product description.
    Flyrobo[ 13/03/2023 ]
    Was this answer helpful?-6
Log In to Add an Answer
You'll provide the project report with the project too?
I'm diploma student and I am preparing a final year project I will purchase your project will you give me the PPT or prepared file of the project too ? I want to see your PPT first
Akshat jain
  • No sir. We do not provide PPT or any other Documents with the kit.
    FlyRobo[ 25/04/2022 ]
    Was this answer helpful?-6
Log In to Add an Answer
You'll provide the project report in this project?
Arun
  • With this product, you will get all components required to make the project. if you required technical support to make this project then you can contact us at [email protected], but the project report will not include in it.
    FlyRobo[ 29/06/2022 ]
    Was this answer helpful?-9
Log In to Add an Answer
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1246
Log In to Add an Answer
Showing 1 to 12 of 12 (1 pages)

Write a review

Note: HTML is not translated!
Bad Good
Captcha



This Video is made by FlyRobo customer.
Name: Sakshi Sangale
State: Maharashtra





This Video is made by FlyRobo customer.
Name: Rajesh Bharti
State: Maharashtra



Tags: dustbin , components for smart dustbin project , Arduino Uno , ultrasonic module , servo motor , 9v dc battery , jumper cable . Arduino Uno R3 board , HC-SR04 Sg90servo motor , HW Battery 9V
