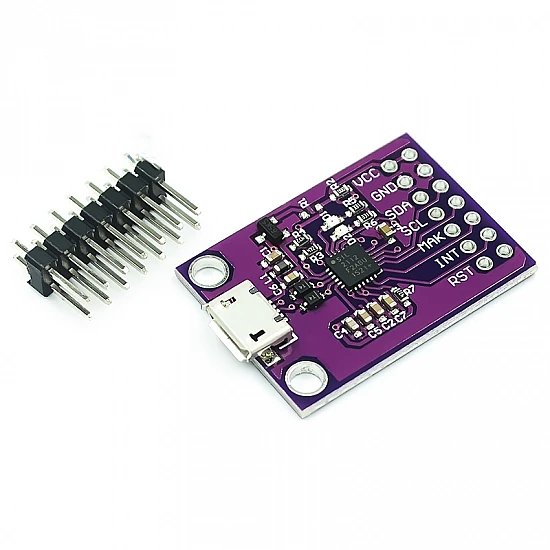

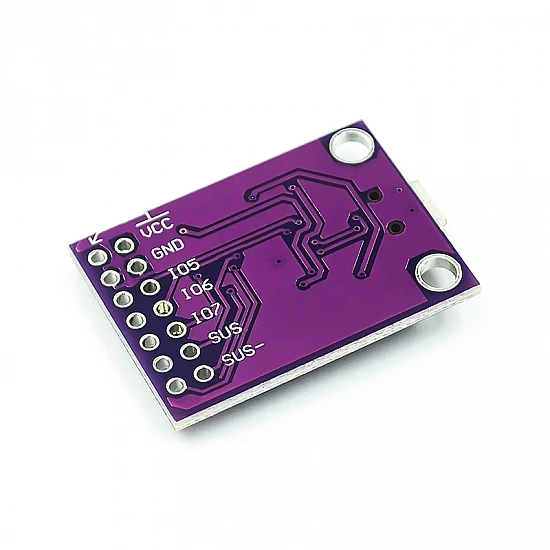

CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor

CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
Out Of Stock
CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
CP2112 Debug Board USB to I2C Communication Module for CCS811 Sensor
₹789

(inc GST)

  • Stock: Out Of Stock
  • ₹7 FlyRobo Cashback.
  • SKU: FR-01-436
    5 or more ₹702
    15 or more ₹653

CP2112 Debug Board comes with an I2C interface. It enables fast USB connectivity by eliminating firmware complexity and reducing development time. Its highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator, and eight GPIO pins.
Features:

  • USB specification 2.0 standard.
  • It has an on-chip power-on reset circuit, on-chip voltage regulator.
  • 512-byte SMBus data buffer.
  • It is an integrated 194-byte one-time programmable ROM for storing customizable product information.
  • Configurable clock output for external devices 48MHz to 94kHz, switching LEDs during reading/writing SMBus.
  • It is widely used in Portable controllers, USB dongles, and Data logging.

Package Includes:

1 x CP2112 Debug Board USB to I2C Communication Module.

Technical
I/O Voltage

1.8V to VDD

Operating Temperature Range

-40°C to 85°C

Power supply

4.0 to 5.25V

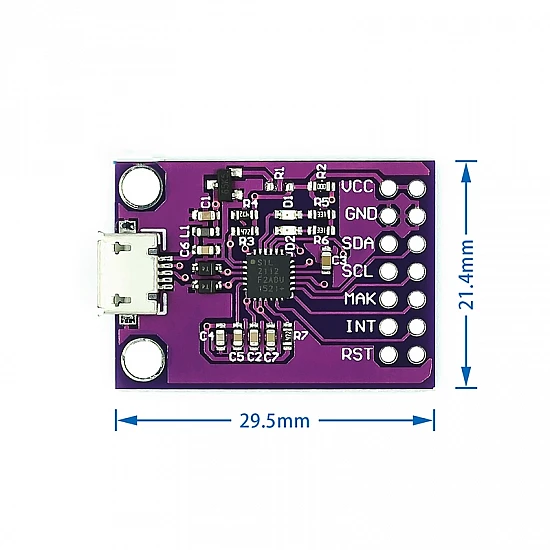

Length

29 mm

Height

4 mm

Width

21 mm
