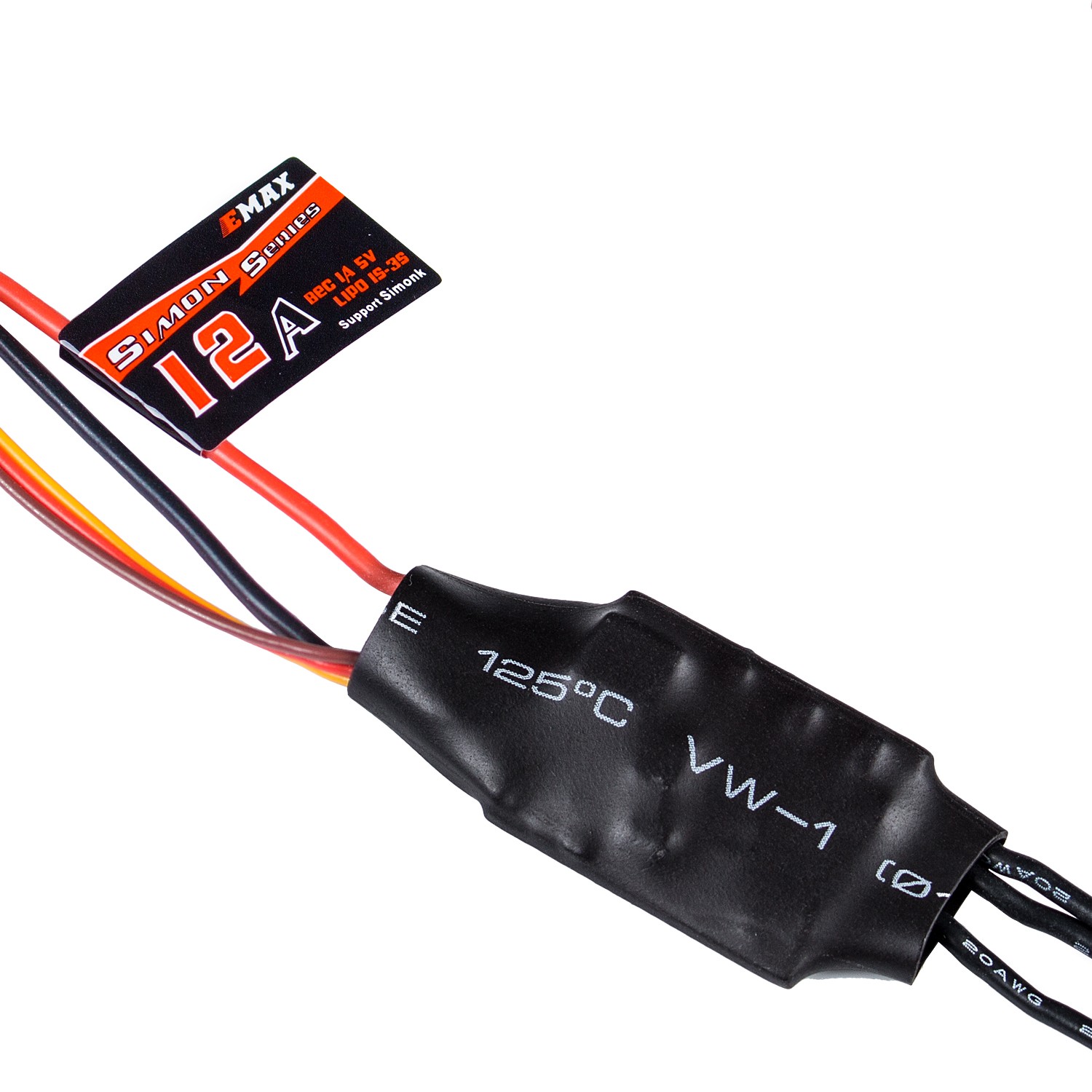

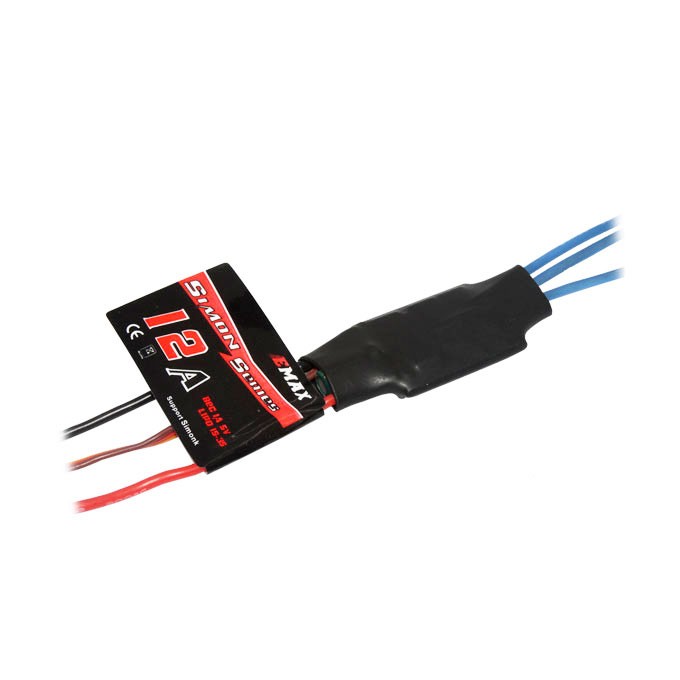

EMAX 12A ESC Simon Series For Multirotor

Emax Simon 12A Brushless ESC Electronic Speed Controller for Quad Multicopter.

Features:

• Simonk firmware Max.support rotation speed: 210,000
• rpm/2-pole; 70,000rpm/6-pole; 35,000rpm(12-pole)
• Built-in linear BEC With low voltage
• overheat protection
• self-detection function
• EMax SimonK Series Brushless Speed Controller 12A ESC 1-3S Lipo for Quadcopter Suitable for FPV QAV250 Aircraft

Specifications:

• Constant Current: 12A
• Input Voltage: 1-3 cell Lipoly
• BEC: Yes (linear) [Remove middle wire to dissable]
• BEC Output: 5V/1A PWM: 8 KHz
• Max RPM: 240,000rpm for 2 Pole Brushless Motor Size: 22*17*7 mm
• Weight: 8g

Package including:

1 x Brushless Speed Controller" (Original)
