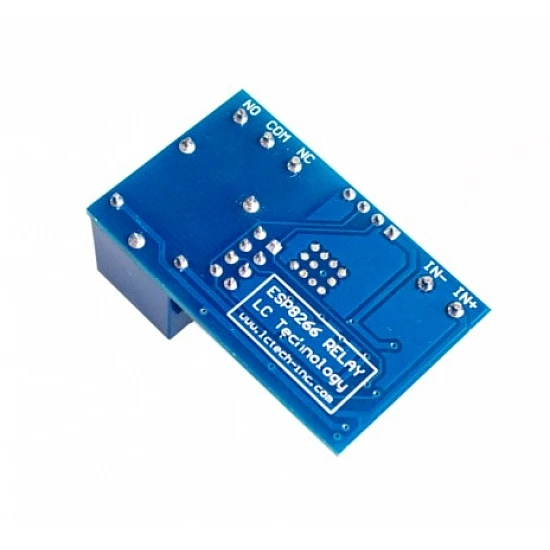

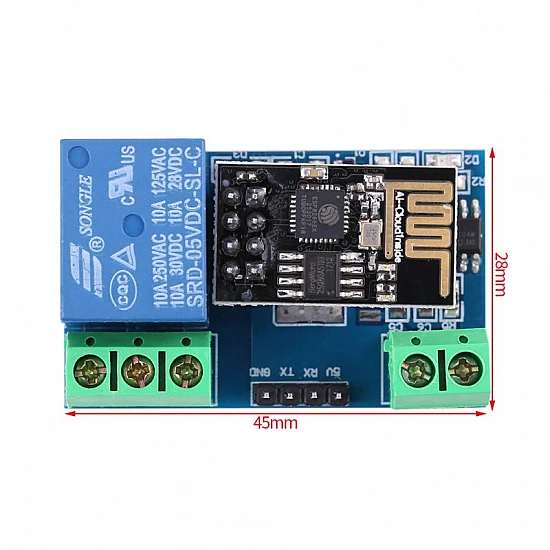

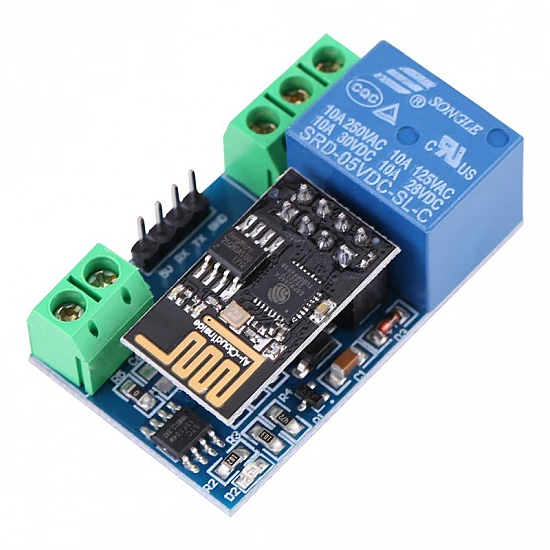

ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch

ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
-24 %
ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹317
₹419

(inc GST)

  • Stock: In Stock
  • ₹3 FlyRobo Cashback.
  • SKU: FR-01-563
    7 or more ₹312
    30 or more ₹309
Add to Cart
Buy Now
Add to Wish List

ESP8266 5V Wifi 1 Channel Relay Module IOT Smart Home Remote Control Switch is equipped with ESP8266 WiFi module and micro-controllers, through the mobile phone APP to the module to send serial instructions to achieve in the LAN within the relay for wireless control.

Features:

  • ESP8266 wifi module; in AP mode it can connect with 5 Clients at the same time
  • The module has two ways to work:
  • 1. Mobile phone directly mounted on the WIFI module;
  • 2. Mobile phone and WIFI module also carried on the router.
  • Cellphone carried on wifi module; cellphone and wifi module carried on the same router, and use the APP to control relay
  • Diode effusion protection;
  • Short response time

Package Includes:

1 x ESP8266 5V Wifi 1 Channel Relay Module

Technical
Baud rate

9600
Switching Voltage(AC)

250@10A

Switching Voltage(DC)

30@10A

Transmission distance

400 m
Trigger Voltage

5 VDC
Length

45 mm
Height

18 mm
Width

28 mm
Questions3 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?501
Log In to Add an Answer
Need programming ?
Needed code programming by computer?
Ramlal
  • Yes sir, Programming is required. You will find many tutorials on the web related to it.
    Flyrobo[ 12/12/2022 ]
    Was this answer helpful?0
Log In to Add an Answer
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1192
Log In to Add an Answer
