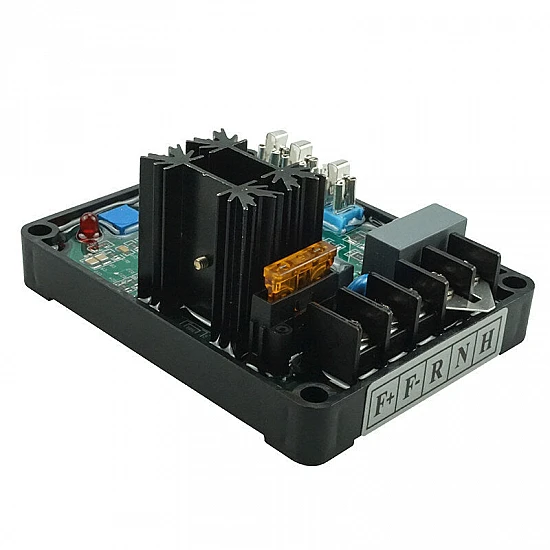

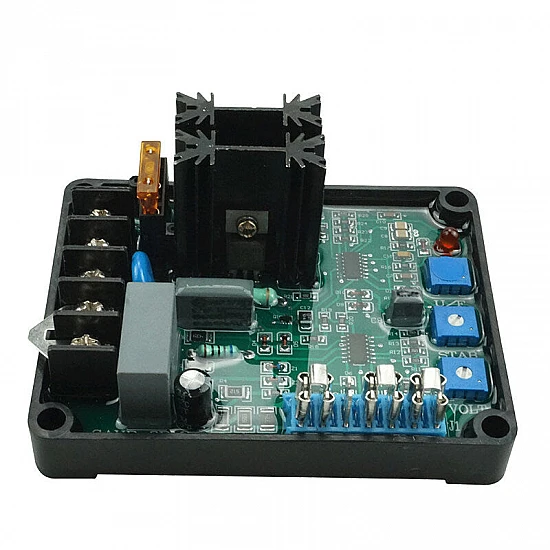

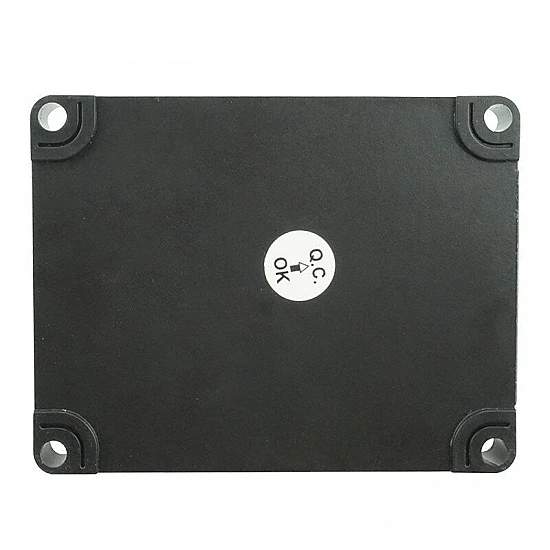

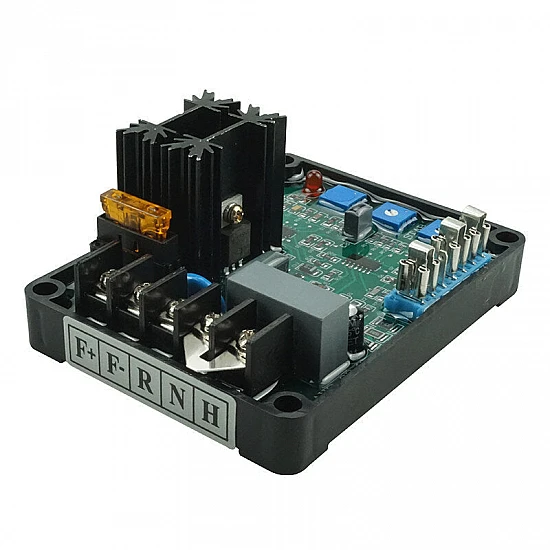

GAVR 8A Universal Brushless AVR Generator Automatic Voltage Regulator Module
₹1,393
₹2,499
(inc GST)
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support
This is GAVR 8A Universal Brushless AVR Generator Automatic Voltage Regulator Module. It features Soft Start Voltage Ramping and EMI Suppression and a built-in high capacity 8 Amp Fuse to protect the unit in cases of power surges.
Features:
- Model: GAVR 8A
- A rugged compact design.
- 110/220/400 VAC Programmable Input with Under Frequency Protection.
- It comes with a user manual.
Package Includes:
1 x GAVR 8A Universal Brushless AVR Generator Automatic Voltage Regulator Module
Technical | |
Model | GAVR 8A |
Current | Continuous 3A, intermittent 5A for 10secs |
Input Voltage | 100-260VAC, 1 phase 2 wire |
Operating Temperature Range | -40°C to +60°C |
Output Voltage | Max 90 VDC at 240VAC input |
Resistance | Min.15 ohm , Max 100ohm |
Sensing Input Voltage | 110/220/400VAC, 1 phase 2 wire |
Dimensions (LxWxH) | 105x83x50 mm |
