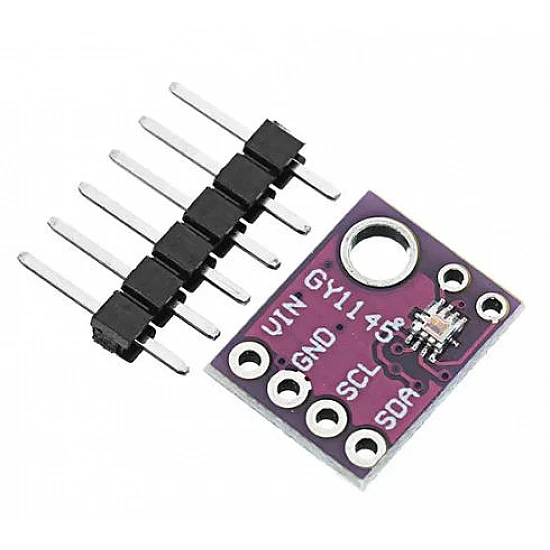

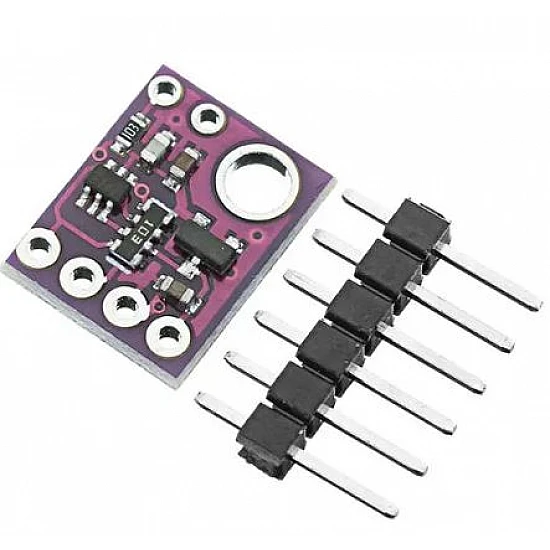

Gy-1145 DC 3v i2c calibrated si1145 flora uv index ir visible light digital sensor module board

Gy-1145 DC 3v i2c calibrated si1145 flora uv index ir visible light digital sensor module board
Gy-1145 DC 3v i2c calibrated si1145 flora uv index ir visible light digital sensor module board
Out Of Stock
Gy-1145 DC 3v i2c calibrated si1145 flora uv index ir visible light digital sensor module board
Gy-1145 DC 3v i2c calibrated si1145 flora uv index ir visible light digital sensor module board
Gy-1145 DC 3v i2c calibrated si1145 flora uv index ir visible light digital sensor module board
₹599

(inc GST)

  • Stock: Out Of Stock
  • ₹5 FlyRobo Cashback.
  • SKU: FR-04-527
    5 or more ₹568
    15 or more ₹550

1145 is a new sensor with a calibrated UV sensing element that can calculate the UV Index. It's a digital sensor that works over I2C so just about any microcontroller can use it. The sensor also has visible and IR sensing elements so you can measure just about any kind of light - but only the UV sensor has a calibrated output so if you need precision Lux measurement check out the TSL2561. If you're feeling really advanced, you can connect up an IR LED to the LED pin and use the basic proximity sensor capability as well.



Pin Out:

Vin - this is the input to the voltage regulator. Power with 3-5VDC. Has reverse-polarity protection.

GND - This is the signal and power ground pin, connect to your microcontroller ground pin.

3vo - this is the output from the onboard regulator. If you need a clean 3.3VDC, you can draw up to 100mA from this pin.

SCL - this is the i2c clock pin, connect to your microcontroller I2C clock master pin.

SDA - this is the i2c data pin, connect to your microcontroller I2C data master pin.


Package Content:
1 x GY-1145
1 x Set of Header Pins

Technical
Operating Temperature Range

-40°C ~ 85°C

output interface

i2c address 0x60 (7-bit)

Power

3-5v DC

Type

Sensor

Wavelength

550nm-1000nm (centered on 800)
