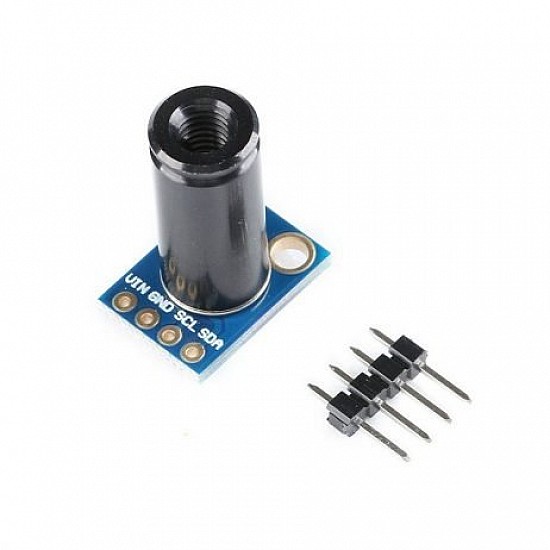

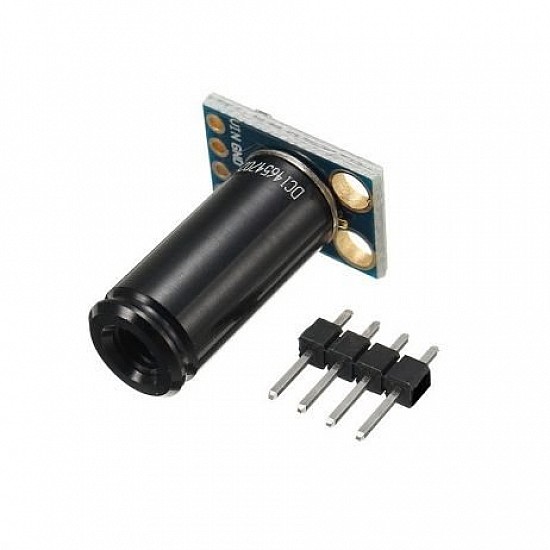

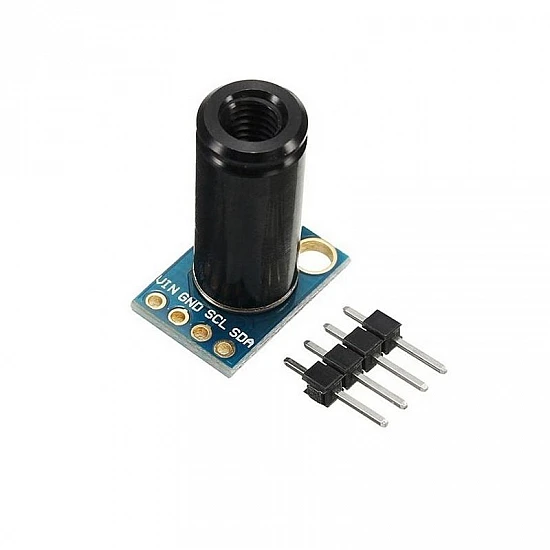

GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module

GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
-47 %
GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module
₹2,596
₹4,899

(inc GST)

  • Stock: In Stock
  • ₹25 FlyRobo Cashback.
  • SKU: FR-01-678
    3 or more ₹2,492
    10 or more ₹2,434

GY-906 MLX90614-DCI Long Distance Infrared Temperature Sensor Module is an infrared thermometer designed for non-contact temperature sensing.

An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications including body temperature measurement and movement detection. The sensor has a field of view of 5 degrees and returns the average temperature value of all objects within this field of view.

This sensor comes with a breakout board with all of the components needed for operation and two types of pins.

Features:

  • Small size
  • Mounted on a breakout board with two types of pins.
  • 10k Pull-up resistors for the I2C interface with optional solder jumpers.
  • Easy to integrate
  • Factory calibrated in a wide temperature range:
  • Single and dual-zone versions
  • Customizable PWM output for continuous reading
  • High accuracy of +/- 0.2°C over the wide temperature range
  • Sleep mode for reduced power consumption

Application:

  • Industrial temperature control of moving parts
  • Temperature control in printers and copiers
  • Home appliances with temperature control
  • Livestock monitoring
  • High precision non-contact temperature measurements
  • Thermal Comfort sensor for Mobile Air Conditioning control system
  • The temperature sensing element for residential,
  • commercial and industrial building air conditioning Windshield defogging
  • Automotive blind angle detection
  • Movement detection
  • Thermal relay/alert
  • Body temperature measurement

Package Includes:

1 x GY-906 MLX90614-DCI Sensor Module

Technical
Model

GY-906-DCI

Chip Model

MLX90614

Input Voltage

3 V

Sensing Range

25 - 60 cm

Sensor Temperature

-40 to 85°C

Length

15 mm

Height

22 mm

Width

11 mm
