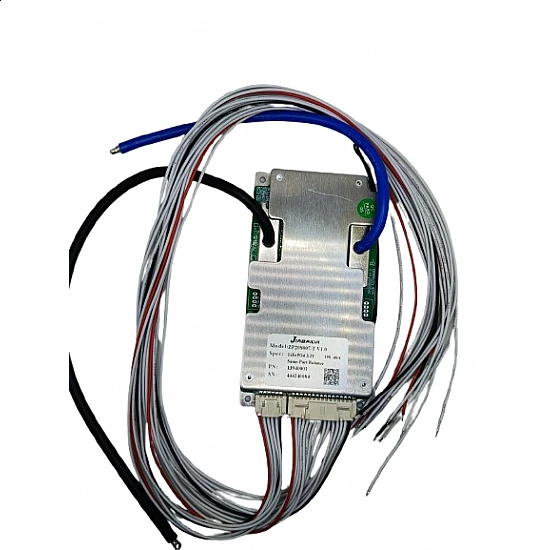

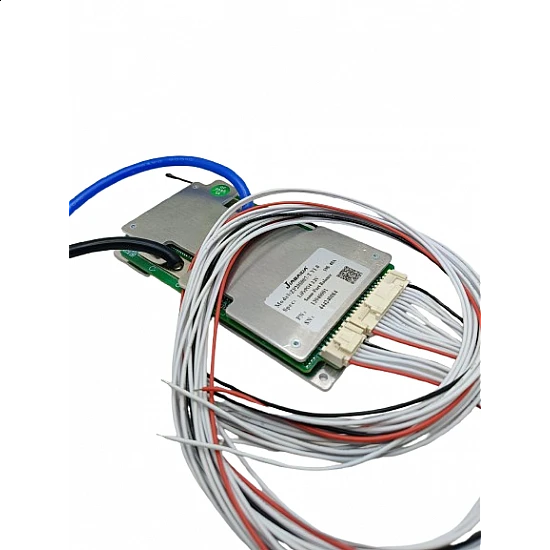

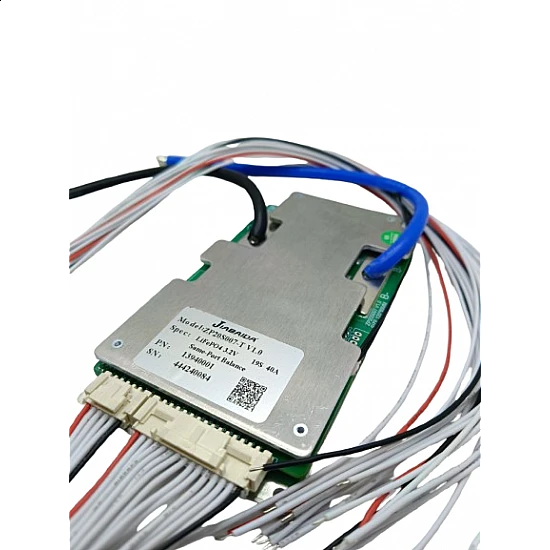

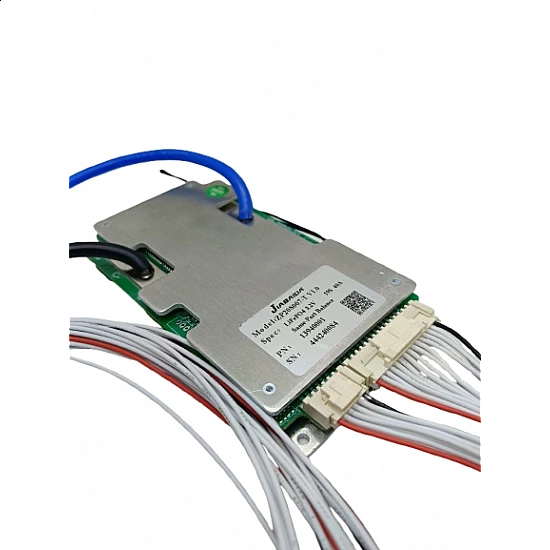

The JBD 19S/40A BMS is designed for 19-series LiFePO4 (LFP) battery packs, ensuring reliable performance and protection. It features a 40A current rating, ideal for applications requiring robust power management. The BMS includes overcharge, over-discharge, overcurrent, and short-circuit protection to enhance battery longevity. It supports Bluetooth communication for real-time monitoring and configuration via a mobile app. Built with high-quality MOSFETs, it ensures efficient heat dissipation and stability. Perfect for EVs, solar systems, and energy storage solutions.
Features:
- Designed to manage 19 series (19S) LiFePO4 battery packs.
- Overcharge Protection
- Over-discharge Protection
- Overcurrent Protection
- Short Circuit Protection
- Balance Functionality
- Equipped with 2 UART
- High-quality MOSFETs
Package Includes:
1 x JBD 19S/40A BMS For LiFePO4 (LFP) batteries
1 x 15 Pin Connector
1 x 6 Pin Connector
Technical | |
Charging Voltage | 3.55V*Number of strings |
Compatible for | 19 S LiFePO4 Battery |
Continuous Charging Current | 40A |
Continuous Discharge Current | 40A |
Operating Temperature Range | --15°C~70°C |
Voltage Range | 2.3~3.75V |
