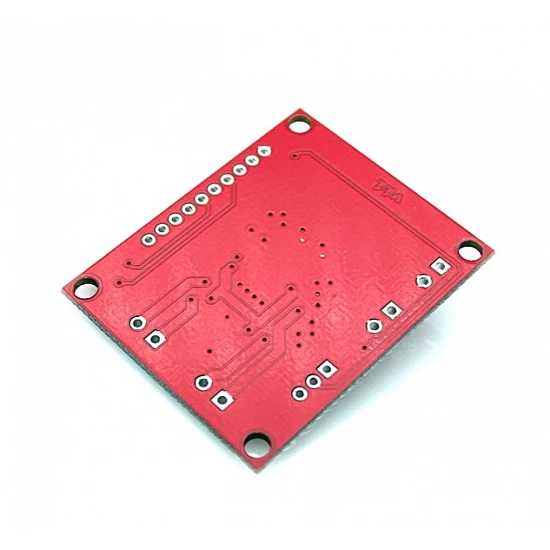

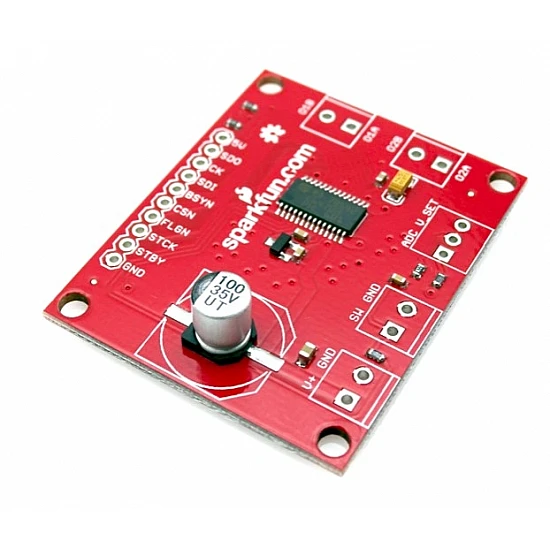

L6470 Stepper Motor Driver Board

L6470 Stepper Motor Driver Board is based on the STMicro L6470 dSPIN stepper motor driver. It allows you to control a stepper motor with a voltage from 8 to 45V at 3Arms over an SPI connection. It has built-in overcurrent detection, Undervoltage detection, overtemperature detection, stall detection, a 5-bit ADC, and a switch input that can be used for either user jog control or as a hard stop function.

Features:

• It is a 3A, 8-45V bipolar stepper motor driver.
• Supports up to 128 Micro steps per Full Step
• Over-Temperature Detect, Over-Current Detect, Under-Voltage Detect
• The logic supply voltage supports both 3.3V and 5V I/O levels.
• It has an onboard Oscillator and Speed/Location Registers

Package Includes:

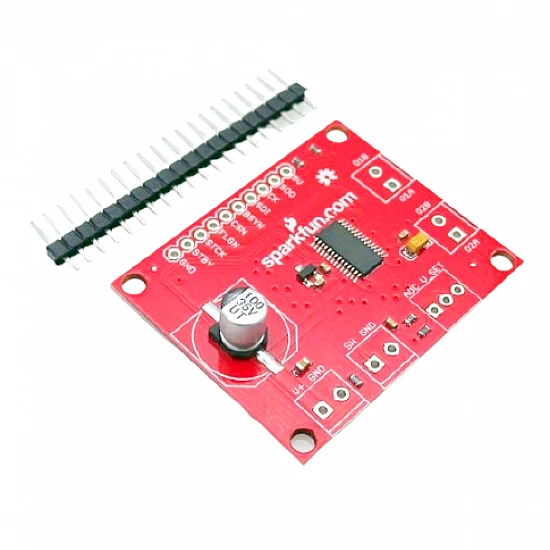

1 x L6470 Stepper Motor Driver Board
