The LM2576 is a voltage Regulator IC, it uses the Buck-converter topology to step-down and regulates higher level voltage values to a lower level. It is of non-sync type and can take in an input voltage 40V maximum and source an output current of 3A maximum with a peak efficiency of 90%.

Applications:

  • Used in battery circuits since they have high efficiency
  • Step-down Linear regulators
  • Used in small SMPS circuits
  • Can also be used to source negative voltage.

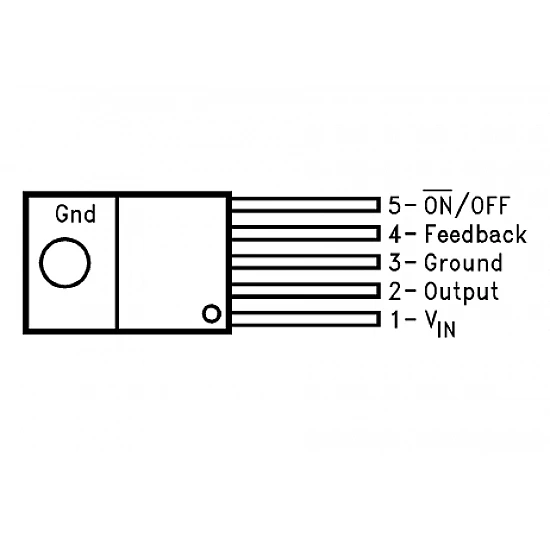

Pin Configuration:



Pin Number

Pin Name

Description

1

VIN

The voltage which has to be regulated is provided as input to this pin

2

Output

The regulated output can be obtained through this pin

3

Ground

Connected to system ground

4

Feedback

This pin is provided with the feedback voltage based on which the output is regulated

5

ON/OFF

Connect to ground to activate the regulator or connect to Vcc to disable the regulator.
Features and
Specifications:
  • Switch mode step down voltage regulator
  • Output Voltage for fixed voltage regulator: 3.3V, 5V, 12V or 15V
  • Output Voltage for Variable type regulator: 1.23V to 37V
  • Output Current: Up to 3A
  • Maximum Input Voltage:  40V
  • In-built Thermal Shutdown and Current Limit Protection
  • Internal Oscillator: 52-kHz (Fixed Frequency)
  • Available in TO-220 and TO-263 packages



Datasheet: Download
