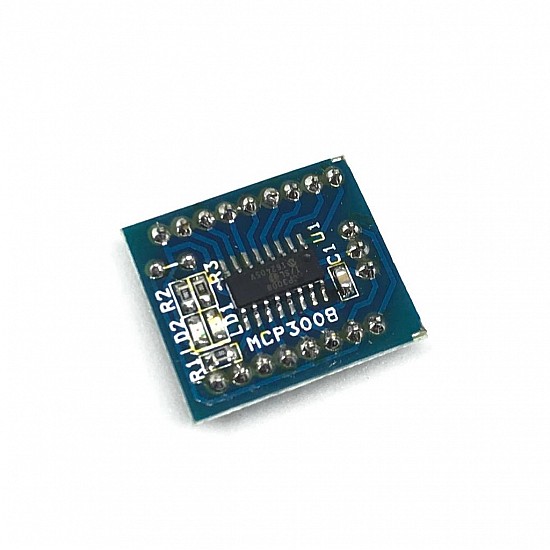

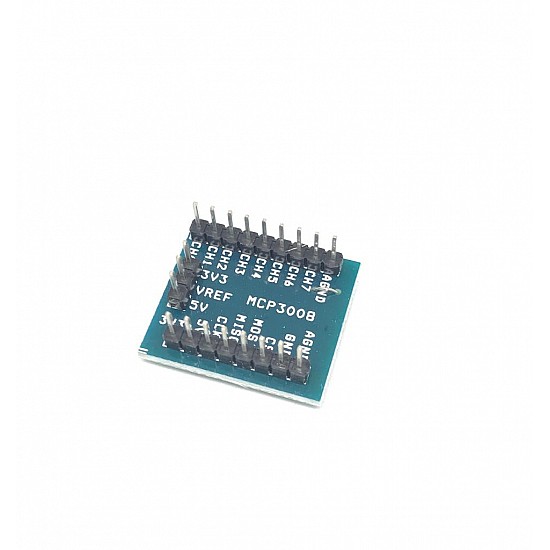

MCP3008 IC Module

The MCP30083008 devices are successive approximation ID-bit Analog-to-Digital (AID) converters With onboard samples and hold circuitry. The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) are specified at ± I LSB_ Communication With the devices is accomplished using a simple serial interface compatible With the SPI protocol. The MCP3008 devices operate over a broad voltage range (2_7V - 5_5V)_ Low-current design permits operation With typical standby currents Of only 5 nA and typical active currents Of 320 PA. The MCP3008 is offered in 16- pin PDIP and SOIC packages.

Applications:

• Sensor Interface

• Process Control

• Data Acquisition

• Battery Operated Systems

Package Includes:

1 x MCP3008 IC Module
