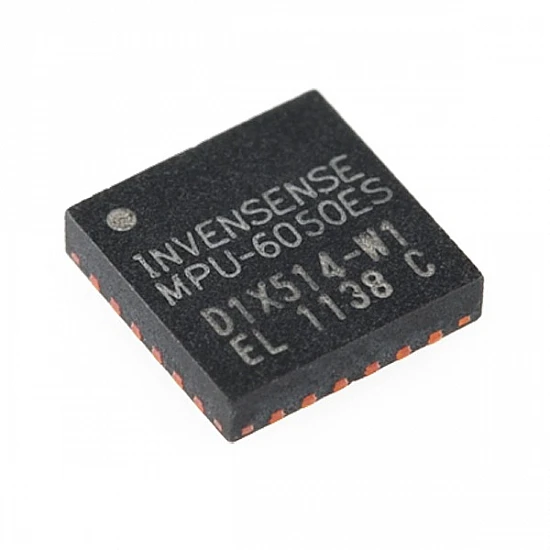

MPU-6050 9-Axis Programmable Gyroscope Accelerometer QFN24 Chip

The MPU-6050 is a highly integrated 9-axis motion tracking device featuring a 3-axis gyroscope, 3-axis accelerometer, and Digital Motion Processor™ (DMP) for on-chip motion processing. Encased in a compact QFN24 package, it delivers high precision and low power consumption for portable devices. The chip supports I2C and SPI interfaces for versatile connectivity. Its motion detection capabilities include tap, shake, and tilt recognition. With a user-programmable full-scale range, it’s ideal for drones, robotics, and wearable tech. The MPU-6050 offers a temperature sensor and self-test features for enhanced reliability.

Features:

• 3-axis gyroscope
• 3-axis accelerometer
• Supports External 3-axis Magnetometer
• Programmable Digital Motion Processor
• Gyroscope sensitivity: ±250, ±500, ±1000, ±2000 °/s.
• Accelerometer sensitivity: ±2g, ±4g, ±8g, ±16g.
• I²C and SPI communication protocols
• Motion Detection Features
• On-Chip FIFO
• Self-Test Functionality
• 2.375V to 3.46V

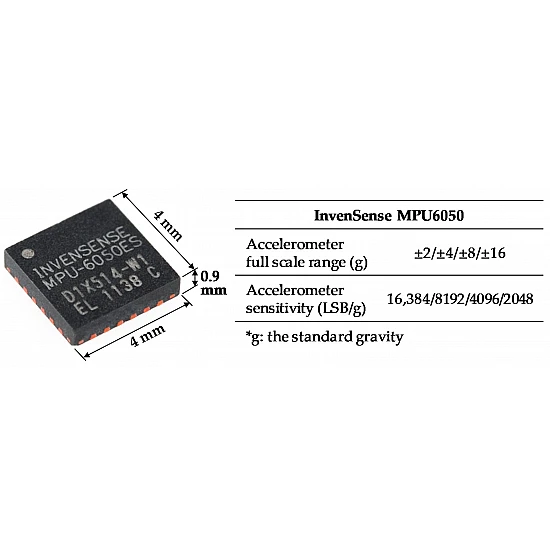

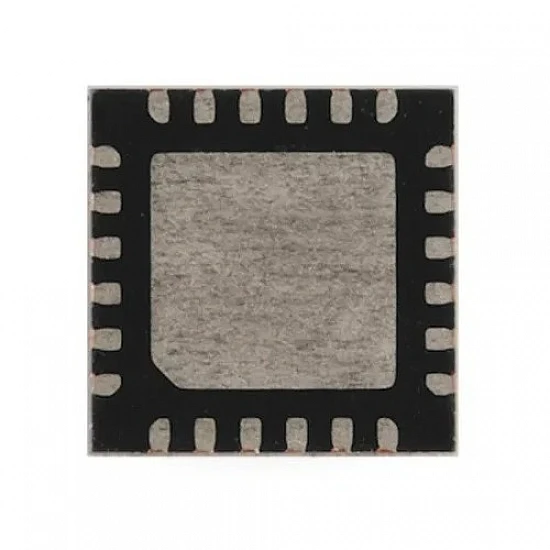

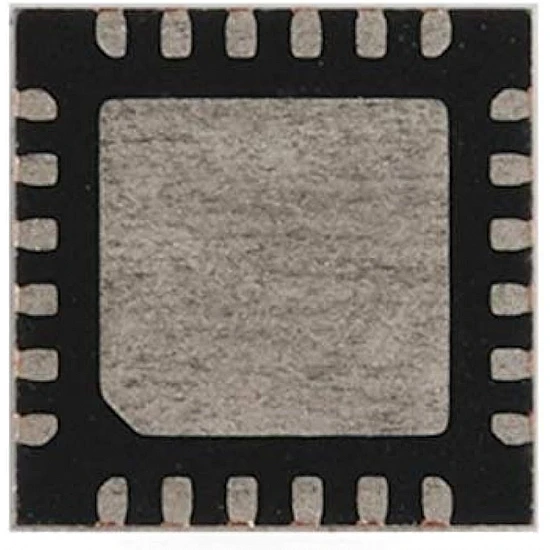

• QFN24 package

Package Includes:

1 x MPU-6050 9-axis Programmable Gyroscope Accelerometer QFN24 chip
