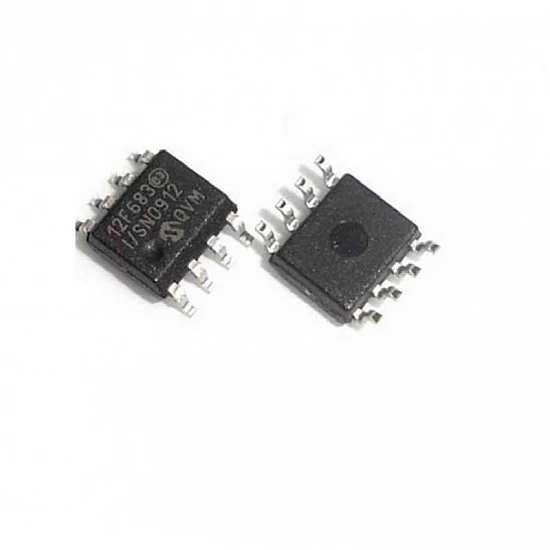

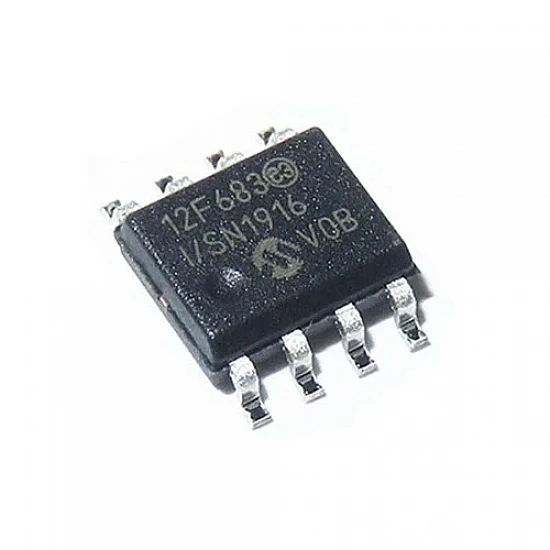

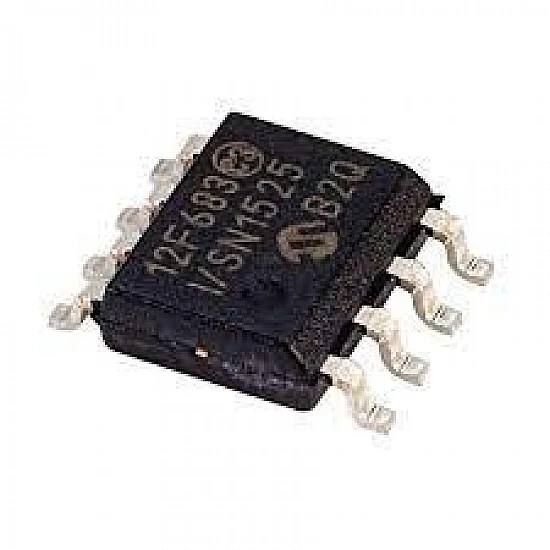

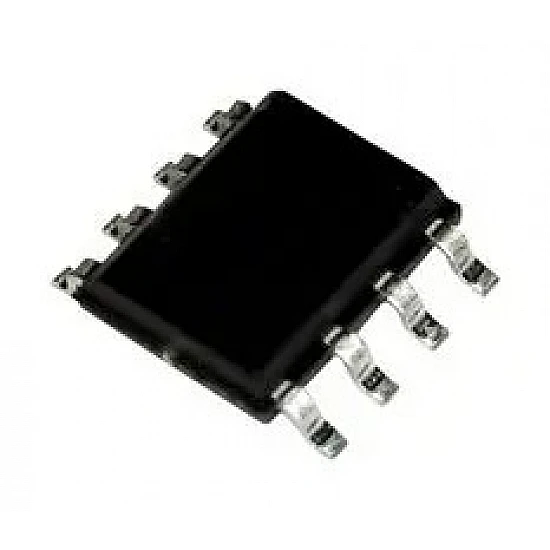

PIC12F683-I/SN 8-bit Flash Microcontroller SOP-8 Chip

The PIC12F683-I/SN is an 8-bit Flash Microcontroller in a compact SOP-8 package, designed for versatile embedded applications. It features a 20 MHz internal oscillator, 3.5 KB of Flash memory, 128 bytes of RAM, and 6 I/O pins for enhanced functionality. The device includes an integrated 10-bit ADC, PWM, and comparator, making it ideal for precision sensing and control tasks. It operates on a voltage range of 2.0V to 5.5V, ensuring compatibility with various power supplies. With low-power sleep modes and watchdog timer support, it is perfect for energy-efficient designs. This microcontroller suits a wide range of applications, from consumer electronics to industrial automation.

Features:

• 8-bit PIC architecture with RISC instruction set
• 3.5 KB Flash memory
• 128 bytes SRAM
• Data EEPROM: 256 bytes
• 2.0V to 5.5V
• 6 I/O pins
• 8-bit Analog-to-Digital Converter (ADC)
• 8-bit timer/counter with 8-bit prescaler
• Low Power Consumption
• Operating speed up to 20 MHz
• SOP-8 package

Package Includes:

1 x PIC12F683-I/SN 8-bit Flash Microcontroller SOP-8 Chip
