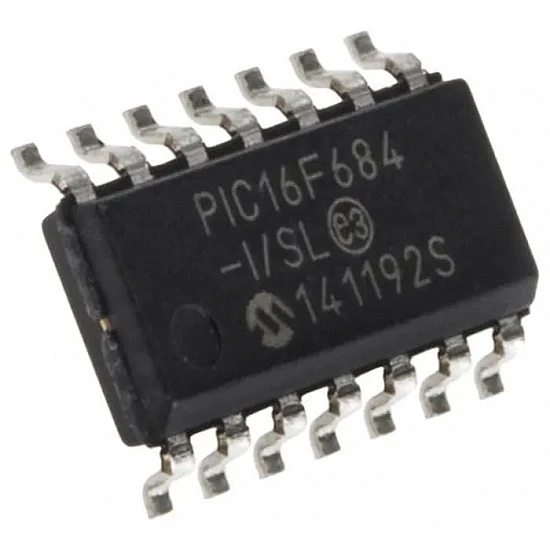

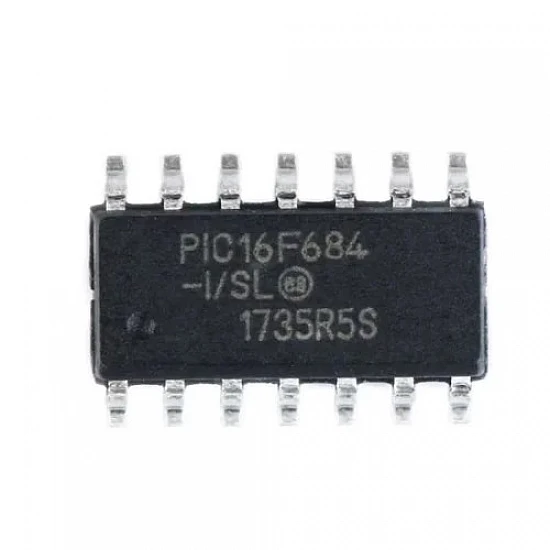

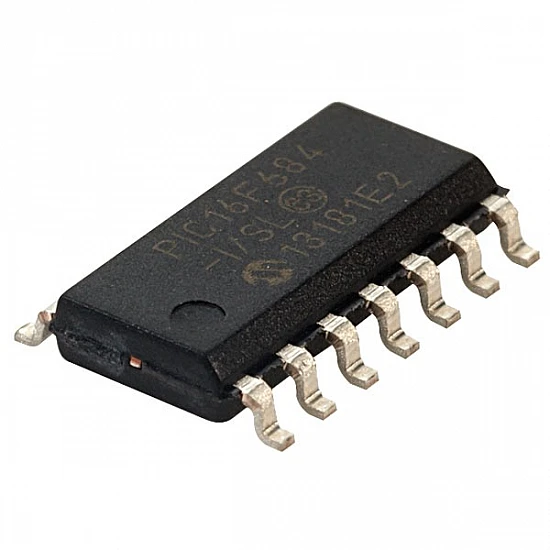

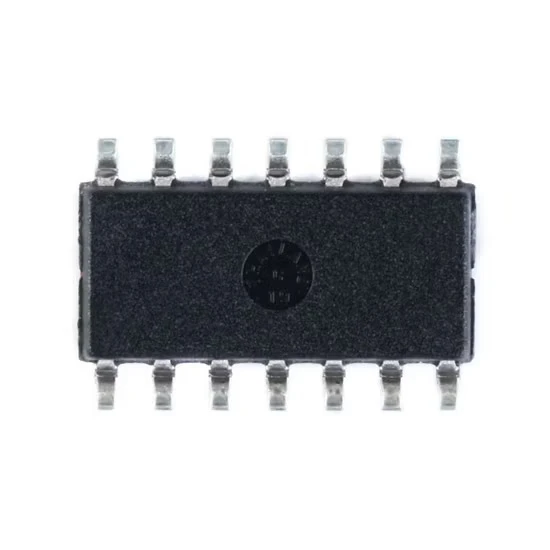

PIC16F684-I/SL SMD SOIC-14 8-bit/Microcontroller IC

The PIC16F684-I/SL is a compact 8-bit microcontroller in an SOIC-14 SMD package, designed for robust and efficient performance in embedded systems. It features a 14-pin architecture with advanced RISC processing, delivering optimized code execution and high-speed operation. The microcontroller includes 4 MHz internal oscillator, multiple I/O ports, and built-in analog-to-digital converters for versatile application use. Its ultra-low power design supports efficient operation in battery-powered devices. Integrated features such as timers, comparators, and enhanced flash memory provide flexibility for a range of applications. Ideal for consumer electronics, industrial automation, and automotive systems.

Features:

• 8-bit RISC architecture
• 35 single-word instructions
• Up to 20 MHz clock speed
• Flash Memory: 3.5 KB
• SRAM: 128 bytes
• EEPROM: 256 bytes
• Up to 12 I/O pins
• Analog-to-Digital Converter
• 10-bit PWM
• Timer0: 8-bit timer/counter.
• Timer1: 16-bit timer with an external clock option.
• Timer2: 8-bit timer with a prescaler and postscaler.
• 2.0V to 5.5V
• Low power mode: <1 µA
• SOIC-14
• Pin Count: 14

Package Includes:

1 x  PIC16F684-I/SL SMD SOIC-14 8-bit/Microcontroller IC
