Pixhawk 0.96inch OLED Onboard Display Module

Pixhawk 0.96inch OLED Onboard Display Module is suitable for Pixhawk flight controller and can be useful for displaying a small amount of vehicle information before takeoff.

This information includes on Display:

• Arming failure messages
• Flight mode
• Battery voltage
• GPS Lock and satellite count
• Pre-arm passed/failed
• EKF status

Connecting to an Autopilot:

1. Connect Pixhawk with the mission planner software.
2. Click on CONFIG Tab
3. Click on the Full Parameter List Option.

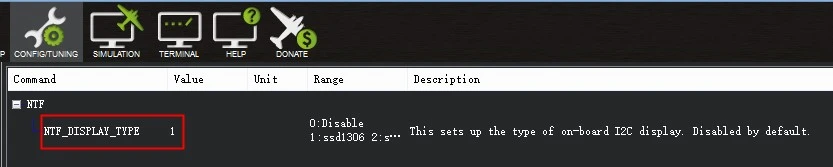

4. In Search box(in right side panel), search for NTF_DISPLAY_TYPE parameter.
5. Change the value to 1 for that parameter.
6. Power off the Pixhawk

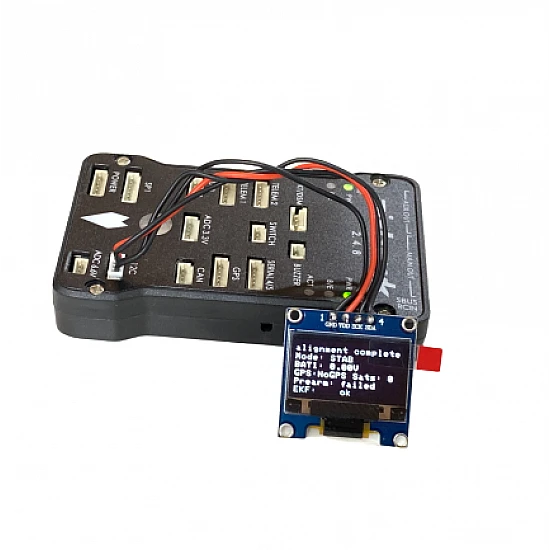

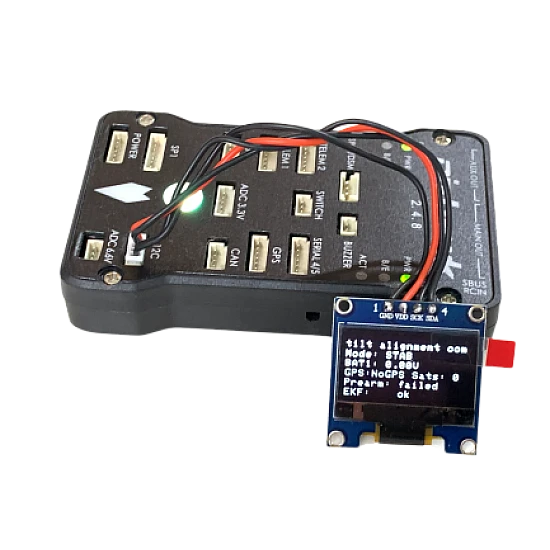

7. Connect onboard display device to the 12C of the Pixhawk.
8. Now power ON the Pixhawk

Note: Pixhawk flight controller is not included.

1 x Pixhawk 0.96inch OLED Onboard Display Module.
