Pixhawk 2.4.8 PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone High Quality

Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
-19 %
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8  PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone - Flight Controller - Multirotor
Pixhawk 2.4.8 PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone High Quality
₹11,070
₹13,599

(inc GST)

  • Stock: In Stock
  • ₹110 FlyRobo Cashback.
  • SKU: FR-02-804
    3 or more ₹10,258
    10 or more ₹9,806

Characteristics:

  • Compatible with Alexmos2.2 or firmware below, compatible with the newest firmware BruGi_050 German, standard Russian2.2 firmwareTips
  • A new generation of strong input control 32-bit processor, a circuit board with PX4FMU + PX4IO
  • (Download Mission Planner HERE)

Specifications:

  • 32-bit Pixhawk PX4 Autopilot Open Code Flight Controller V2.4.8
  • 2 bit 1.32 STM32F427 flash Cortex M4, with the floating-point hardware processing unit
  • 2 main frequency: 256 K, RAM 168 MHZ
  • 32-bit processor STM32F103 backup co

Sensors:

  1.  L3GD20 3-axis 16-bit digital gyroscope
  2.  LSM303D 14/3 Axis Accelerometer Magnetometer
  3. MPU6000 6-axis accelerometer / magnetometer
  4.  MS5611 high precision barometer

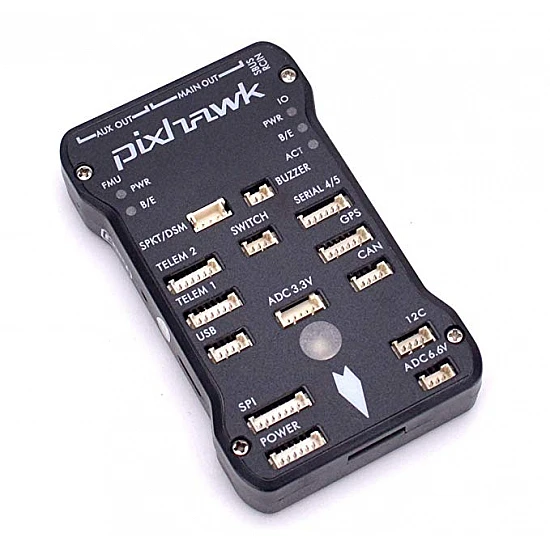

Interface:

  • 5 UART 1 High Voltage compatible, 2 with hardware flow control
  • 2 CAN
  • DSM / DSM-X  Spektrum compatible satellite receiver input
  • SBUS  input and output compatible
  • PPM signal input
  • RSSI (PWM or input voltage)
  • I2C
  • SPI
  • 3.3 and 6.6 VADC inputs
  • external US MICRO

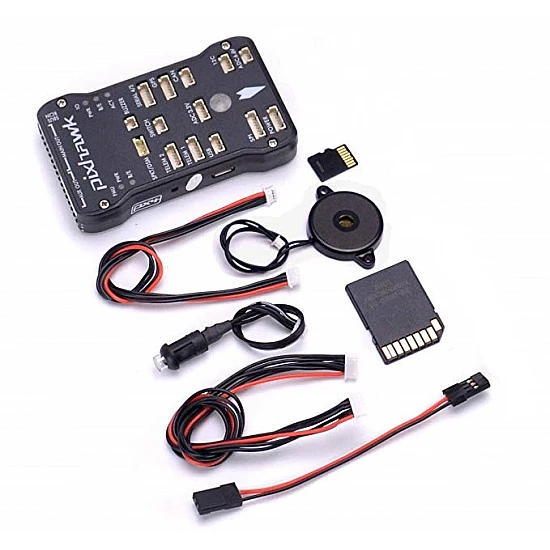

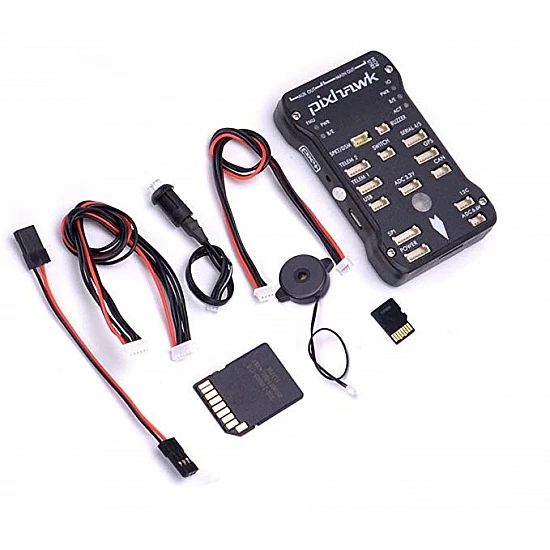

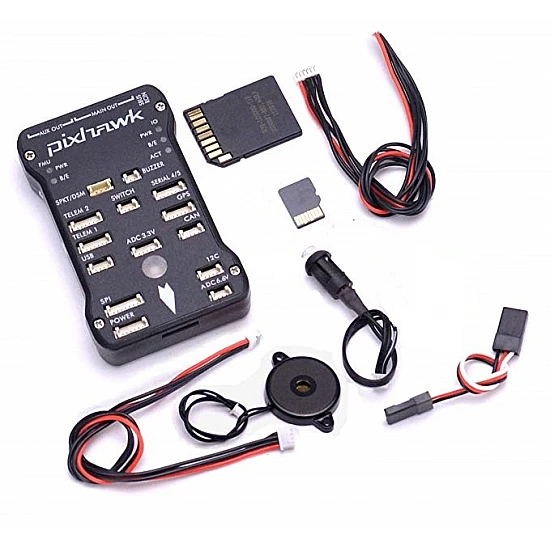

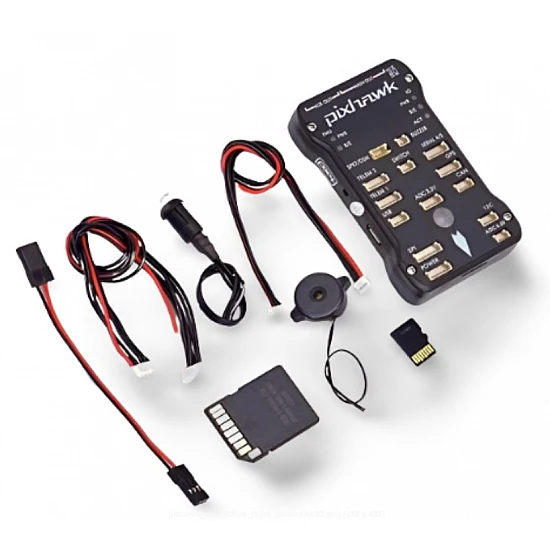

Package includes:

1 X 2.4.8 Pixhawk main control with shell

1 X  Safety switch

1 X Buzzer

1 X Memory Card

Connection Wire







Technical
Processor

STM32F427

Accelerometer

LSM303D

Compatibility

Quadcopter, Hexacopter, plane, Helicopter, Octacopter, Rover, Antenna, Custom.

Gyroscope

L3GD20

RAM Size

256k

Barometer

MS5611

Questions6 Answers6 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?509
As one buyer claims it is clone of pixhawk so can u confirm is it clone or original?
ANKUSH KUMAR
  • This is a high-quality Original Pixhawk flight controller.
    FlyRobo[ 04/11/2022 ]
    Was this answer helpful?-1
Is this original or clone version?
ANKUSH KUMAR
  • It is the original pixhawk 2.4.8 flight controller.
    FlyRobo[ 04/11/2022 ]
    Was this answer helpful?-5
Can we use FMUv3 arducopter firmware?

How to know which mission planner firmware is compatible with this hardware

Deepak
  • Pixhawk 2.4.8 flight is compatible with two firmware FMUv2 and FMUv3 firmware.

    You can try both firmware and find which is best for you.

    FMUv2 vs FMUv3 firmware differences.

    FMUv2: Single-board with STM32427VI processor
    FMUv3: Identical to FMUv2, but usable flash doubled to 2MB

    FlyRobo[ 27/01/2022 ]
    Was this answer helpful?-6
Is the product original an quality check
Last time I buyed this flight controller an I didn't able to fly a single flight. I don't want to waste my money in a faulty not tested flight controller so please say it is 100% original an tested flight controller# i need your guarantee that's flight controller is original an take the Full responsibly then I'll buy. Thanks
Soumik
  • Have you purchased from us?
    Because We provide quality check product and if the product will not work then we did not dispatch to our customer.

    If you purchase from us and after purchasing the product if you get any problem with a product then we have 7 days return policy and we personally try to resolve issues with technical support. you just need to share information related to the Error which you are getting.

    Now the question is “is it original or not?”
    → There are many companies that manufacture pixhawk flight controllers. So things like original or duplicate is not with this product. With this product, you will get good quality and bed quality.
    We always purchase pixhawk from our supplier which has good quality sensors installed inside and built with high-quality material so our customers get ultimate stability with pixhawk.

    In some cases, customers will not be familiar with the flight controller and if they are not able to build a drone and configure it then we provide technical support so that they can be able to make drones themself and fly drones.

    So, Don't be hesitate about product quality.

    FlyRobo[ 27/01/2022 ]
    Was this answer helpful?-13
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1134
