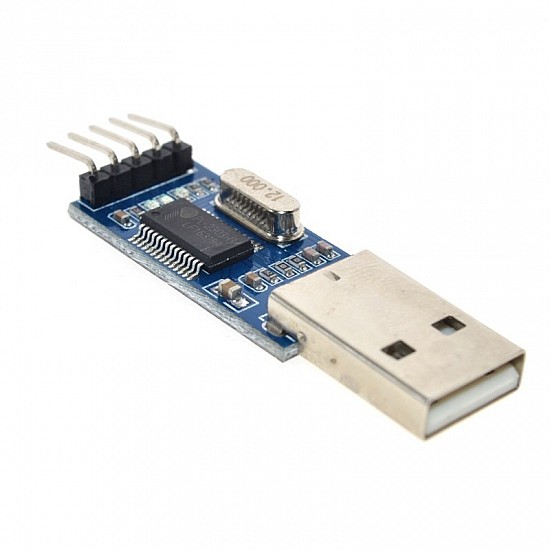

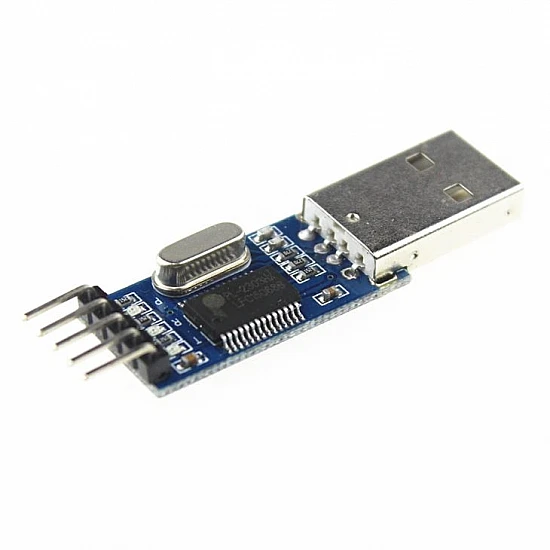

PL2303 PL2303HX USB to TTL Converter Module

This is PL2303 PL2303HX USB To TTL(Serial) Converter Module – 5 Pin. Adopt imported controller RS232 TTL, which can stabilize the flash with high-speed 500mA self-recovery fuse for protection.

Two data transmission indicator can monitor data transfer status in real-time. Reserve 3.3V and 5V pin interface, easy for DDWRT of different voltage system that needs power. The entire board is coated by a high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside, so that the board won’t be burnt down by a material shortcut.

Applications :

• All kinds of satellite set-top box upgrade.
• Router, HDD, ADSL, broadband modem firmware upgrade or cracked upgrade.
• cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash and so on.
• Burn writes STC MCU, NXP MCU, Renesas MCU, NEC MCU and so on.
• Simple UART communication commonly used UART debugging tools in the supper terminal.
• USB signal transferred to the TTL signal may be used by electronic enthusiasts.

Features :

• Adopt imported controller PL2303HX, which can stabilize the flash with high speed
• 500mA self-recovery fuse for protection.
• Two data transmission indicator can monitor data transfer status in real-time.
• Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power.
• The entire board is coated by the high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside.
• so that the board won’t be burnt down by material shortcut.
• The electrostatic package ensures the board will not be damaged before use.
• Support the WIN7 system.

Package Includes :

1 x PL2303 PL2303HX USB To TTL Module.
