S550 Hexacopter Frame Kit

S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
-6 % Out Of Stock
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
S550 Hexacopter Frame Kit
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹4,498
₹4,789

(inc GST)

  • Stock: Out Of Stock
  • ₹44 FlyRobo Cashback.
  • SKU: FR-02-706
    3 or more ₹4,307
    10 or more ₹4,201
FlyRobo FlyRobo
Add to Cart
Buy Now Notify When Available
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

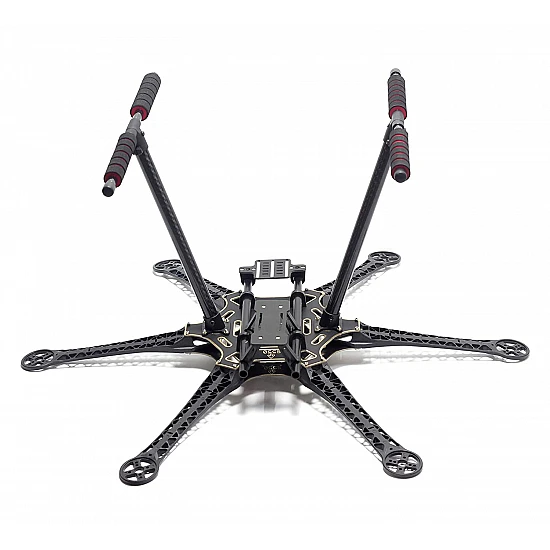

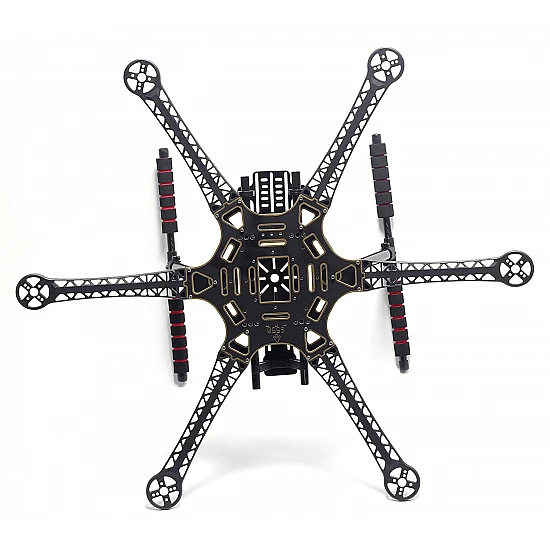

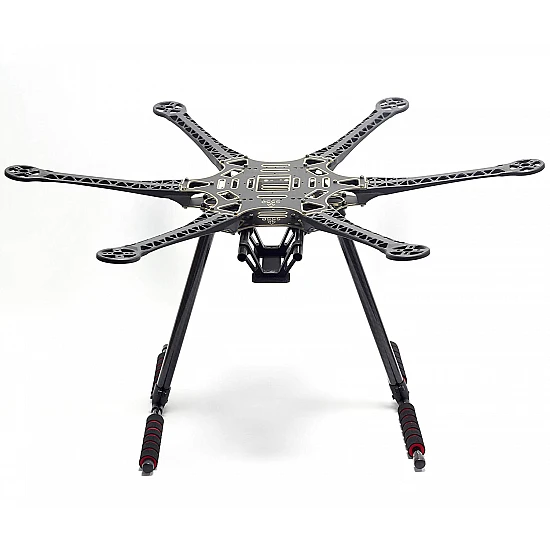

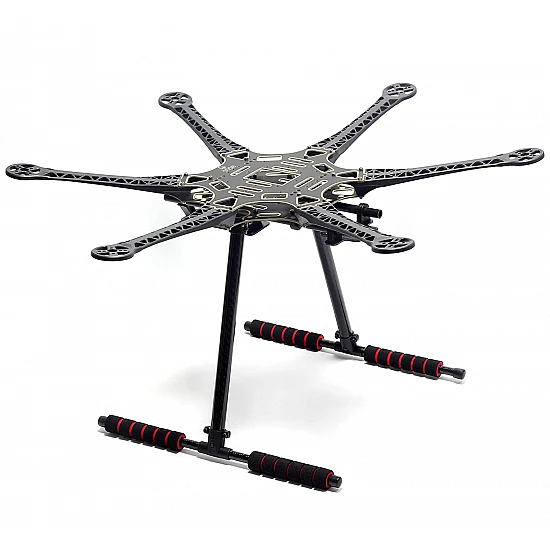

An excellent strong lightweight Hexacopter frame with carbon fiber landing gear and a bonus built-in the printed circuit board (PCB) for neat and easy wiring. So, making the Quadcopter build fast and easy. also, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The S550 Hexacopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.

The added lift capacity of a hex configuration makes this frame ideal for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics!

The Assembly of this frame is super simple with pre-threaded sleeves for all the frame bolts so no lock-nuts are required. The motor mounts are ready to take a selection of motors with mounting hole centers of 16, 19, and 25mm once again making this a very universal frame at a very affordable price.


It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes.  Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient.

Features:

  • Easy to assemble and disassemble.
  • PCB for easy and neat wiring
  • Made by advanced engineering material, super strong & smooth
  • The main glass fiber frame has good strength.
  • The arm equips support ridges for better and faster forward flight.
  • Features pre-threaded brass sleeves.
  • Large mounting tabs for camera mounting.

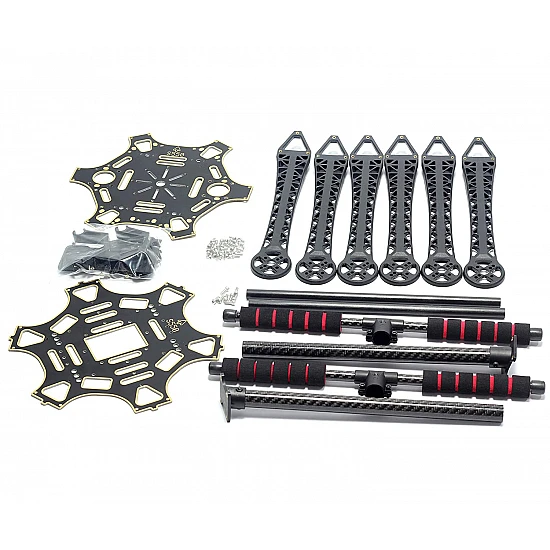

Package Include:

1 x S550 Hexacopter Frame(Top and Bottom) with PCB soldered centerboard

6 x S550 arms

1X Landing gear setup



1X Accessories set

Technical
Model

S500
Arm Size

235×42 mm
Board

PCB version
Color

Black
Landing Gear

Carbon Fiber
Landing Gear Height

around 250 mm
Landing Gear Weight

100 gm (both)
Motor Mount Bolt Holes

16, 19, and 25 mm
Total Weight

760 gm
Wheelbase

550mm

Questions3 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?488
Log In to Add an Answer
How much the weight can carry
Can we use for agricultural sprayer purposes
RAJKUMAR MARUTHAI

  • Dear sir,
    Frame have enough strength to carry high load but it is compatible with ~1045 propeller.
    As per my knowledge there are not any motor available with 1045 propeller support which provide thrust for agreeculture drone.

    FlyRobo[ 06/12/2021 ]
    Was this answer helpful?-4
Log In to Add an Answer
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1188
Log In to Add an Answer
Showing 1 to 3 of 3 (1 pages)
