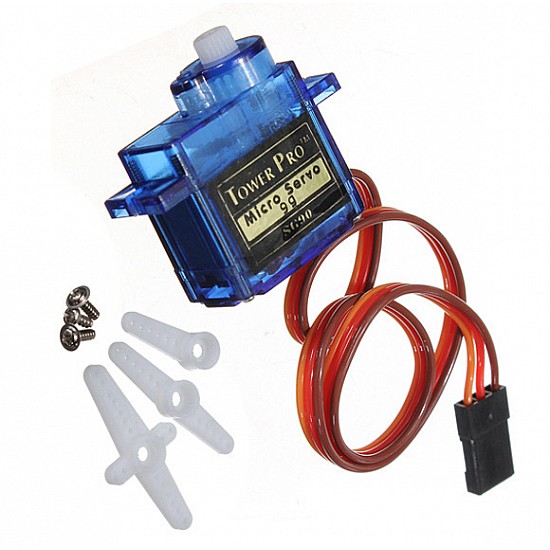

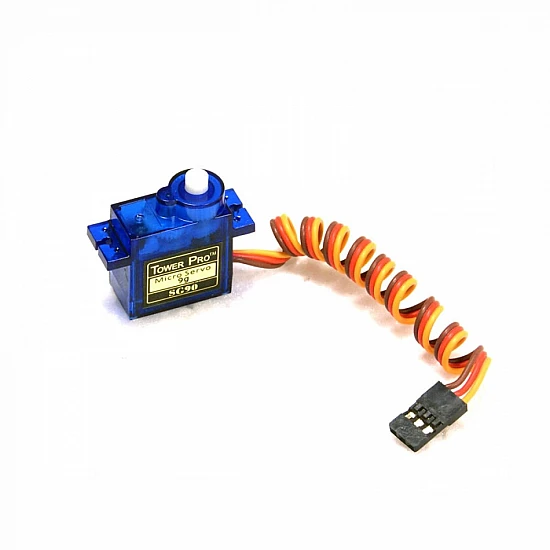

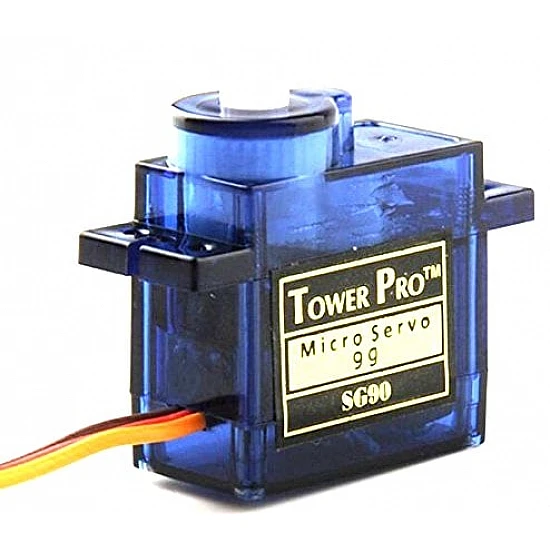

TOWER PRO 9G MICRO SERVO MOTOR

TOWER PRO 9G MICRO SERVO MOTOR - Other - Arduino
TOWER PRO 9G MICRO SERVO MOTOR - Other - Arduino
TOWER PRO 9G MICRO SERVO MOTOR - Other - Arduino
-49 %
TOWER PRO 9G MICRO SERVO MOTOR - Other - Arduino
TOWER PRO 9G MICRO SERVO MOTOR - Other - Arduino
TOWER PRO 9G MICRO SERVO MOTOR - Other - Arduino
TOWER PRO 9G MICRO SERVO MOTOR
₹76
₹149

(inc GST)

  • Stock: In Stock
  • SKU: FR-04-400
    10 or more ₹74
    50 or more ₹73
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support
The Micro Servo 9G is lightweight, high-quality and lightning-fast. The servo is designed to work with almost all the radio control systems. It is with excellent performance brings you to another horizon of flight. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat and truck use

Features:
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Operating Voltage: 4.8-6.0 Volts
  • Operating Temperature Range: -10 to +60 Degree C
  • Operating Speed (4.8V): 0.12sec/60 degrees at no load
  • Operating Speed (6.0V): 0.10sec/60 degrees at no load
  • Stall Torque (4.8V): 1.8kg/cm
  • Stall Torque (6.0V): 2.4kg/cm
  • 360 Modifiable: Yes
  • Bearing Type: Ball Bearing
  • Gear Type: Nylon Gears
  • Connector Wire Length: 12"
  • Dimensions: 22x11.5x27mm
  • Weight: 11g




Package Content:

1 x TOWER PRO SG90 9G MICRO SERVO MOTOR

Questions3 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?510
How to check Servo motor is working or not?
Guest
  •

    #include

    Servo myservo;  // create servo object to control a servo
    // twelve servo objects can be created on most boards

    int pos = 0;    // variable to store the servo position

    void setup() {
      myservo.attach(9);  // attaches the servo on pin 9 to the servo object
    }

    void loop() {
      for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
        // in steps of 1 degree
        myservo.write(pos);              // tell servo to go to position in variable 'pos'
        delay(15);                       // waits 15 ms for the servo to reach the position
      }
      for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
        myservo.write(pos);              // tell servo to go to position in variable 'pos'
        delay(15);                       // waits 15 ms for the servo to reach the position
      }
    }
    FlyRobo[ 16/12/2021 ]
    Was this answer helpful?-21
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1136
