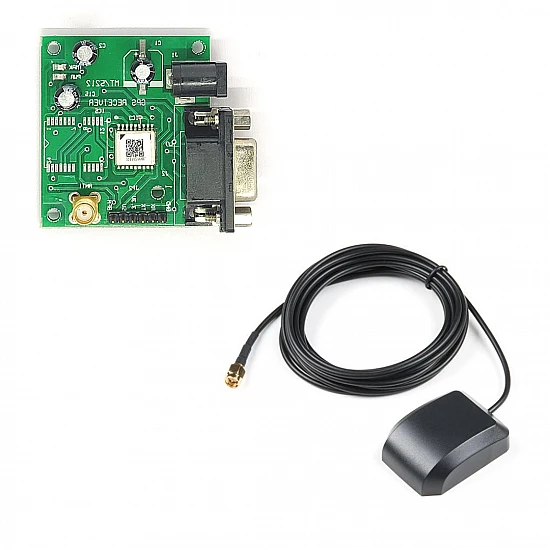

SIM28ML GPS Receiver Module with GPS antenna

SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
Out Of Stock
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹1,199

(inc GST)

  • Stock: Out Of Stock
  • ₹11 FlyRobo Cashback.
  • SKU: FR-01-721
    5 or more ₹1,147
    15 or more ₹1,118
FlyRobo FlyRobo
Add to Cart
Buy Now Notify When Available
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support
This GPS Receiver Modem is based on SIMCOM's Sim28M/Sim28ML GPS Module. SIM28ML is a stand-alone or A-GPS receiver with build-in LNA. it is designed with a high sensitivity navigation engine, which allows you to achieve the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with the lowest power consumption. Sim 28ML can track as low as -165 dBi signal even without network assistance.
SIM 28ML has excellent low power consumption characteristics. Sim 28ML supports various location and navigation applications including autonomous GPS, QZSS, SBAS ranging(WASS, EGNOS, GAGAN, MSAS), DGPS, and A-GPS.

Features:

  • Compact size
  • easy to use
  • Low Power consumption
  • High accuracy

Package Includes:

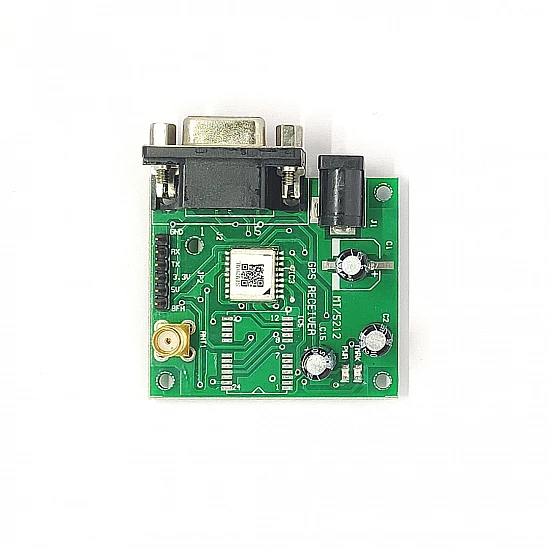

1 x SIM28ML GPS Receiver Module

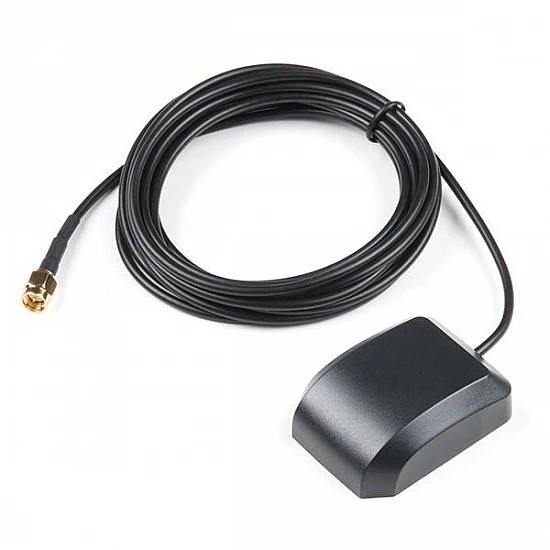

1 x GPS antenna with SMA male connector

Technical
Accuracy

Automatic Position 2.5m

Antenna Type

Active and Passive
Operating Temperature Range

-40ºC to 85ºC
PCB Size ( L x W )

5 x 5 cm
Power Consumption

Acquisition 17mA, Tracking 16mA, Back up 8uA
Receiver Type

22 tracking/66 acquisition channel GPS receiver GPS L1, C/A Code
Sensitivity

-165 dBm, Reacquisition -160 dBm, Cold Starts - 148 dBm
