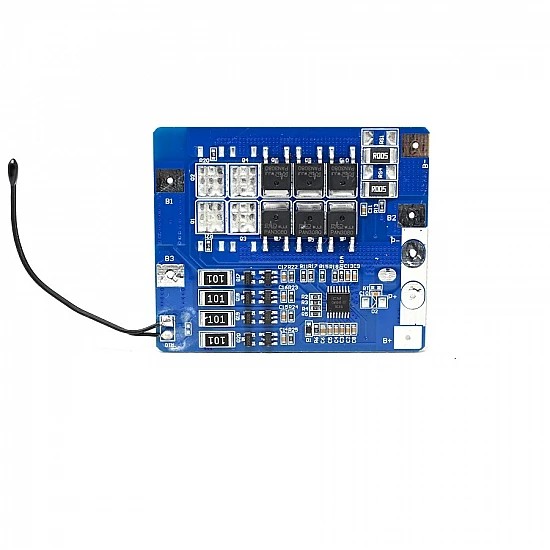

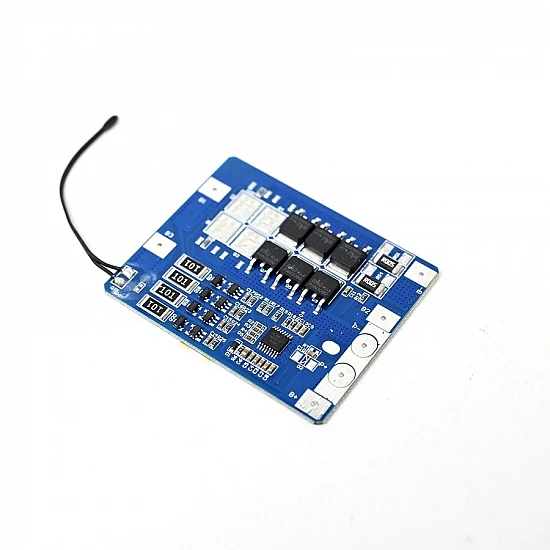

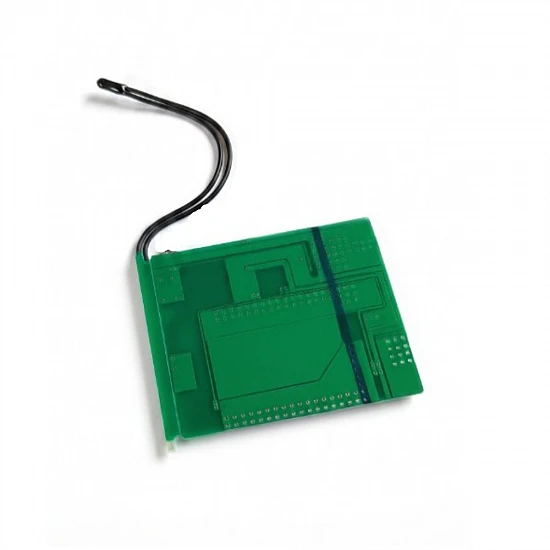

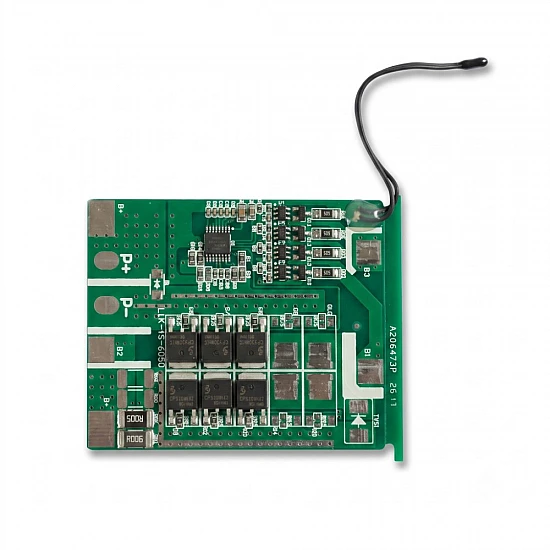

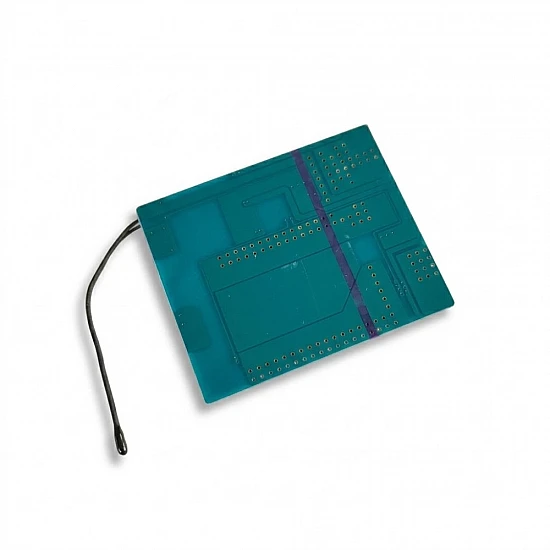

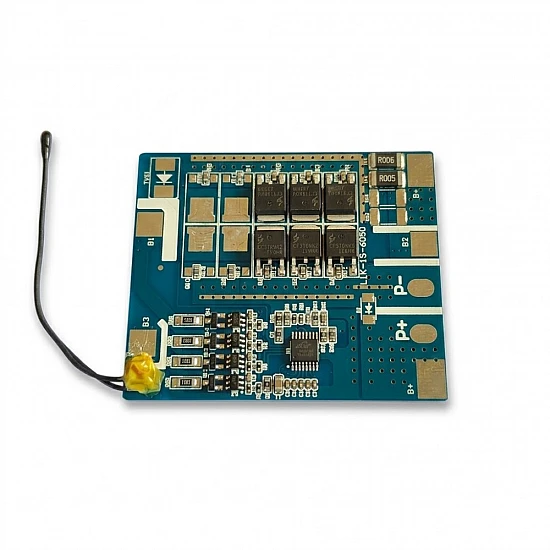

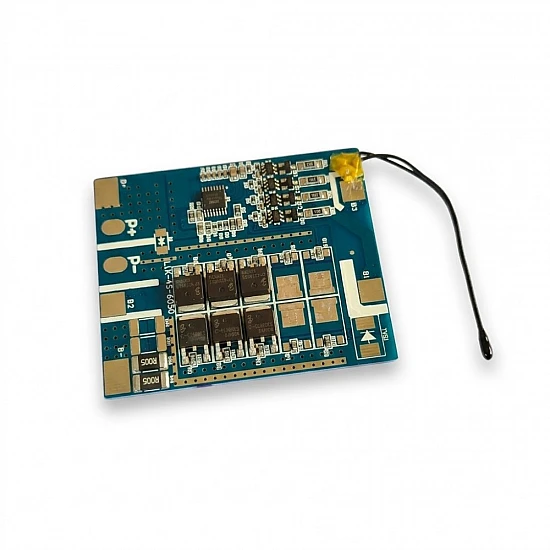

The SLCT 4S/15A Blue BMS is designed for 4-cell LiFePO4 (LFP) battery packs, offering reliable overcharge, over-discharge, and short-circuit protection. With a 15A continuous discharge current, it ensures stable performance for medium-power applications. Its compact design and high-temperature resistance make it suitable for a wide range of devices. This BMS incorporates balancing functionality to extend battery life and maintain consistent performance across all cells. Easy to integrate, it supports safe and efficient operation of LiFePO4 batteries. Ideal for DIY projects, e-bikes, solar energy systems, and more.
Features:
- 4-series LiFePO4 (LFP) batteries
- Continuous discharge current of 15A
- Balanced Charging
- Overcharge Protection: Prevents excessive voltage on individual cells.
- Overdischarge Protection: Ensures no cell discharges below safe voltage levels.
- Short-Circuit Protection: Guards against accidental short circuits.
- Easy Integration
Package Inlcudes:
1 x SLCT 4S/15A Blue BMS For LiFePO4 (LFP) batteries
Technical | |
Charging Voltage | 14.4V CC/CV |
Compatible for | 4S 15A LiFePo4 Battery |
Continuous Charging Current | 15A |
Operating Temperature Range | 45°C --+65°C |
Over-discharge detection voltage (V) | 2.33±0.1V |
Overcharge detection voltage (V) | 3.65±0.05V |
Storage temperature | 45°C --+85°C |
