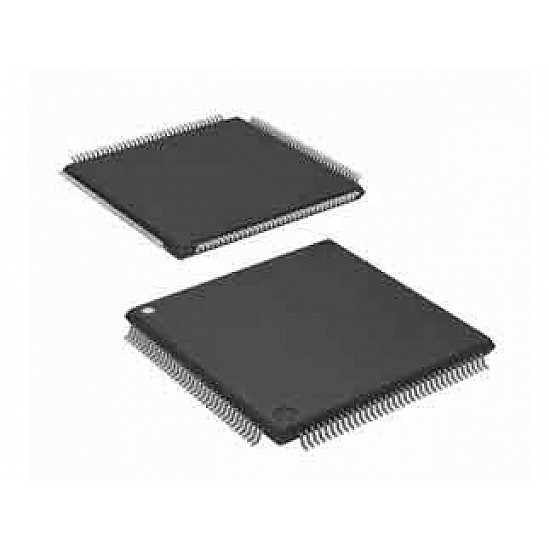

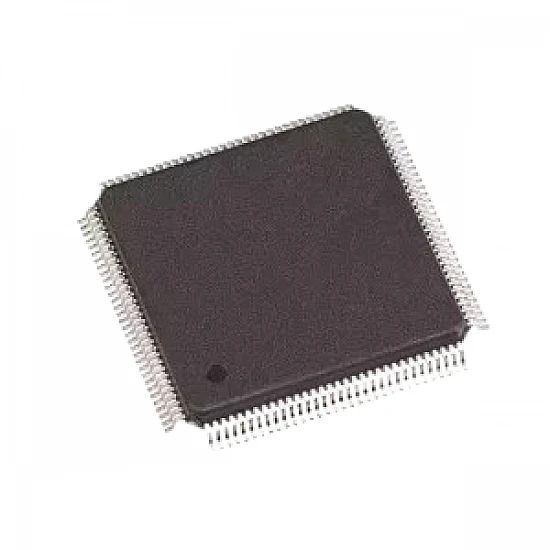

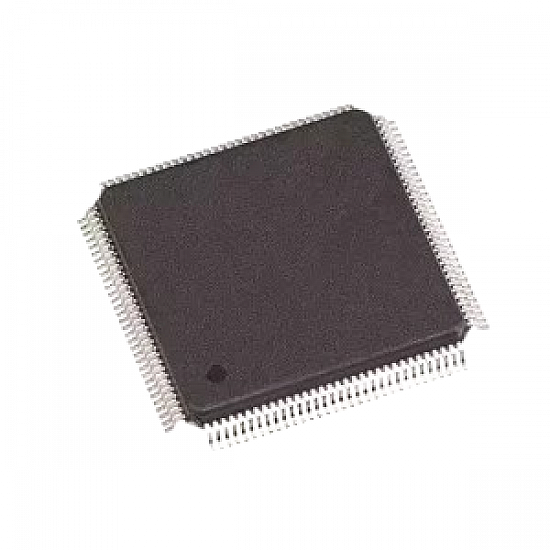

SSD1963QL9 LQFP-128 TFTLCD color screen controller Chip

The SSD1963QL9 is a high-performance TFT LCD color screen controller chip housed in an LQFP-128 package. It supports resolutions up to 864x480 and interfaces seamlessly with 8/16/18/24-bit parallel RGB TFT LCDs. The chip features an integrated display interface and touch panel controller, making it ideal for advanced graphical applications. Its built-in PWM backlight control ensures efficient brightness management. With embedded command sets, it simplifies design and development for rich and vibrant display outputs. The SSD1963QL9 is widely used in industrial, automotive, and consumer electronic display solutions.

Features:

• Wide Screen Compatibility
• High-Color Depth
• Built-in 1215 KB frame buffer
• PWM controller
• Refresh rate of up to 60 Hz
• Dynamic Memory Management
• 8080/6800 parallel interface and serial interfaces (SPI)
• Touch Panel Support
• 2.5V to 3.3V
• LQFP-128 package
• Built-in Command Set

Package Includes:

1 x SSD1963QL9 LQFP-128 TFTLCD color screen controller Chip
