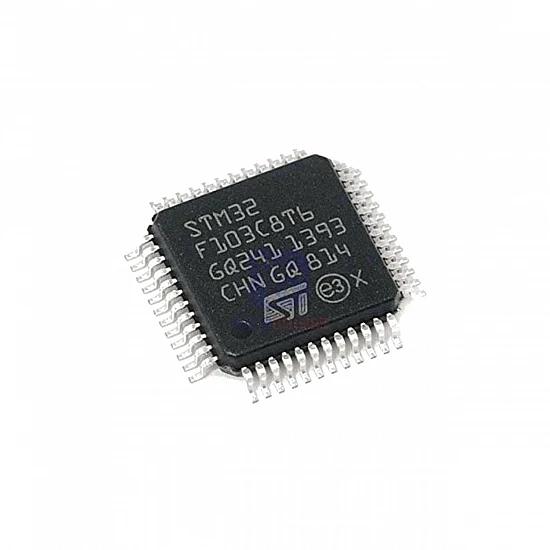

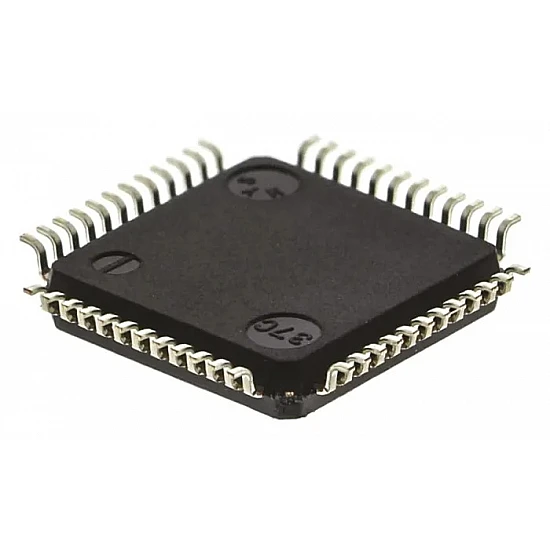

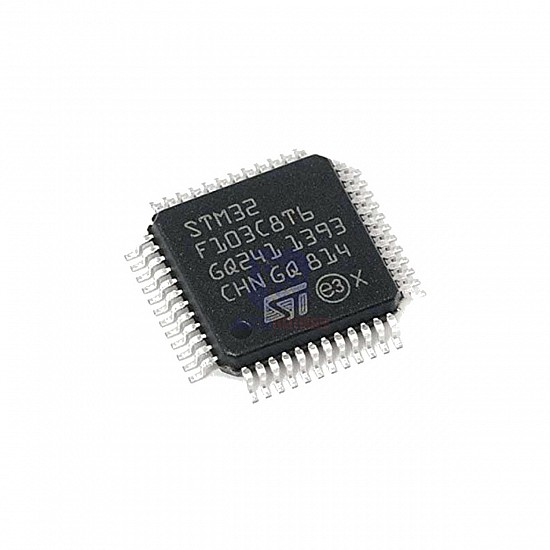

STM32F103C8T6 LQFP-48 ARM Cortex-M3 32-Bit Microcontroller-MCU

The STM32F103C8T6 is a high-performance 32-bit ARM Cortex-M3 microcontroller in an LQFP-48 package. It features a 72 MHz CPU, 64 KB Flash memory, and 20 KB SRAM, making it ideal for embedded applications. With multiple communication interfaces (I2C, SPI, UART, USB), it supports diverse connectivity needs. It includes 12-bit ADCs, timers, and PWM for precise control in real-time applications. Its low-power operation and wide voltage range (2.0V - 3.6V) make it suitable for battery-powered systems. Commonly used in IoT, robotics, and industrial automation, it offers a balance of power and efficiency.

Features:

• ARM Cortex-M3 32-bit RISC core
• 64 KB Flash memory
• 20 KB SRAM
• 2.0V to 3.6V
• 37 general-purpose I/O (GPIO) pins
• 2x 12-bit ADCs
• 2x 12-bit ADCs
• 2x I2C
• 3x USARTs
• 2x SPI interfaces
• CAN 2.0B interface
• 8 MHz RC oscillator
• Low-power 32.768 kHz oscillator
• LQFP-48
• STM32CubeMX and STM32CubeIDE

Package Includes:

1 x STM32F103C8T6 LQFP-48 ARM Cortex-M3 32-bit microcontroller-MCU
