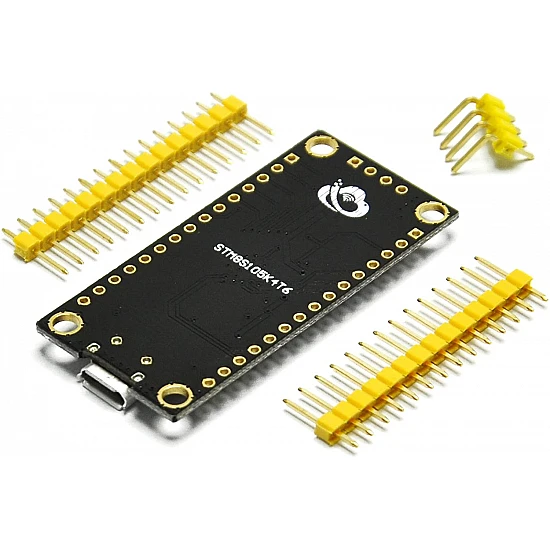

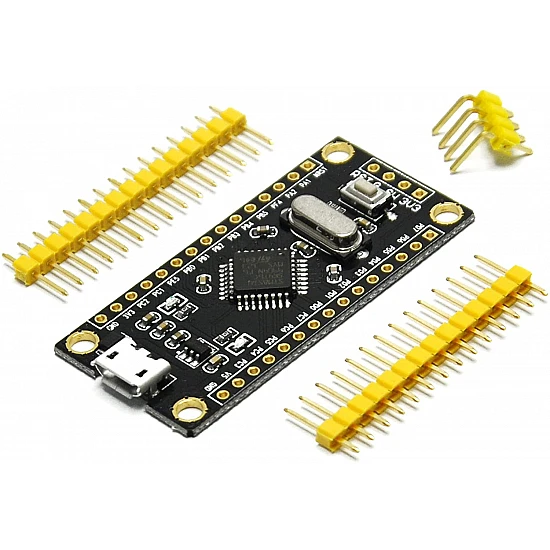

STM8S105K4T6 Development Board Module Core Board MCU Learning Board for Arduino

STM8S105K4T6 Development Board Module MCU Learning Core Board Small System for Arduino

Specifications:

• Model Number: STM8S105K4T6

• Kernel: Advanced STM8 core, with 3 lines from Harvard

• Structure: Extensive instruction set

• Memory: Medium density program and data memory:
  • Up to 32 KB Flash
  • Data memory: up to 1 KB of true data EEPROM
  • RAM: up to 2 KB

• Clock
  • Clock security system with clock monitor
  • Flexible clock control, 4 main clock sources
  • Low power crystal oscillator

• External clock input
  • User-adjustable internal 16 MHz RC
  • Internal Low Power 128 kHz RC
  • Clock security system with clock monitoring

• Power Management:
  • 3.0 ~ 5.5V operating voltage
  • Low power mode (wait, active shutdown, power off)
  • The peripherals can be turned off separately
  • Always turn on low power consumption and power-down reset

• Communications interfaces:
  • UART with clock output for synchronous operation, Smartcard, IrDA, LIN
  • SPI interface up to 8 Mbit/s
  • I2C interface up to 400 Kbit/s

•  Interrupt management
  •  Timers
  •  Advanced control timers
  •  Communication interface
  •  I / O port
  •  Development support

Package Includes:

1 x STM8S105K4T6 Development Board Module
