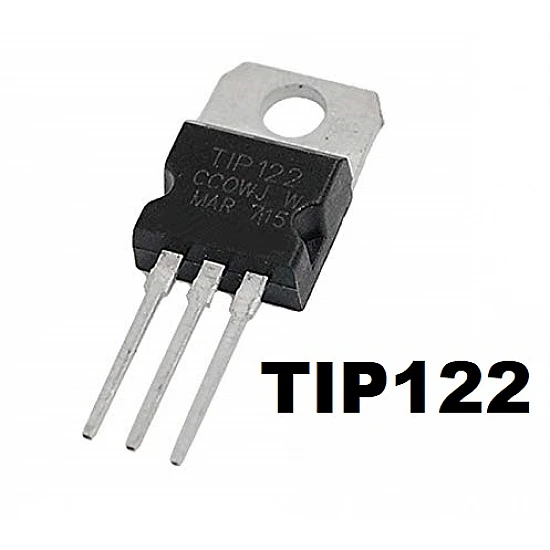

TIP122 - NPN Transistor - Switching Transistor

TIP122 - NPN Transistor - Switching Transistor - ICs - Integrated Circuits & Chips - Core Electronics
TIP122 - NPN Transistor - Switching Transistor - ICs - Integrated Circuits & Chips - Core Electronics
TIP122 - NPN Transistor - Switching Transistor - ICs - Integrated Circuits & Chips - Core Electronics
TIP122 - NPN Transistor - Switching Transistor - ICs - Integrated Circuits & Chips - Core Electronics
TIP122 - NPN Transistor - Switching Transistor
₹16

(inc GST)

  • Stock: In Stock
  • SKU: FR-05-624
    10 or more ₹15
    50 or more ₹14

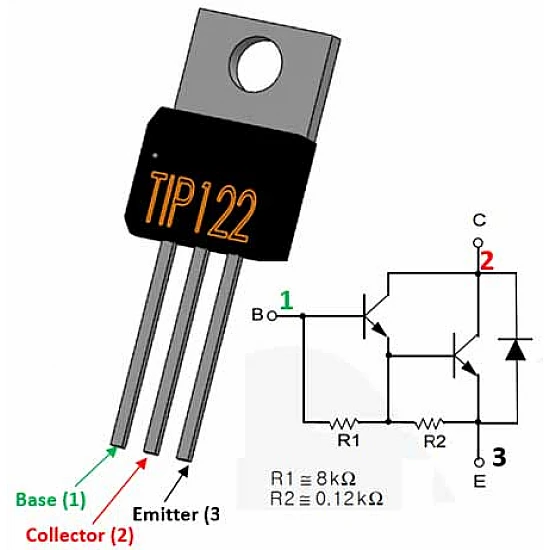

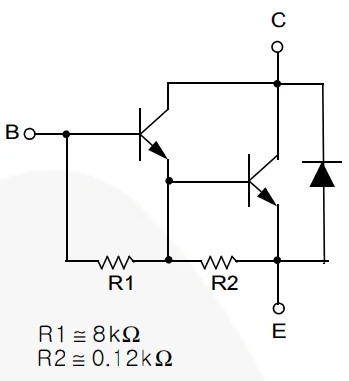

The TIP122 is a Darlington pair NPN transistor. It functions like a normal NPN transistor, but since it has a Darlington pair inside it has a good collector current rating of about 5A and a gain of about 1000. It can also withstand about 100V across its collector- Emitter hence can be used to drive heavy loads. The Darlington pair inside this transistor is shown clearly as its internal circuit schematic below. As you can see, there are two transistors inside this TO-220 package in which the emitter of the first transistor is connected with the base of the second transistor and the collector of both transistors are connected together to form a Darlington pair. This increases the current gain and current rating of this transistor.

Pin Configuration:

Pin Number

Pin Name

Description

1

Base

Controls the biasing of the transistor, Used to turn ON or OFF the transistor

2

Collector

Current flows in through collector, normally connected to load

3

Emitter

Current Drains out through emitter, normally connected to ground



Features:

  • Darlington medium-power NPN Transistor
  • High DC Current Gain (hFE), typically 1000
  • Continuous Collector current (IC) is 5A
  • Collector-Emitter voltage (VCE) is 100 V
  • Collector-Base voltage (VCB) is 100V
  • Emitter Base Voltage (VBE) is 5V
  • Base Current(IB) is 120mA
  • Available in To-220 Package

Applications

  • Can be used to switch high current (up to 5A) loads
  • Can be used as medium Power switches
  • Used where high amplification is needed
  • Speed control of Motors
  • Inverter and other rectifier circuits
Datasheet: Download

Package Content:

1 x TIP122 transistor
