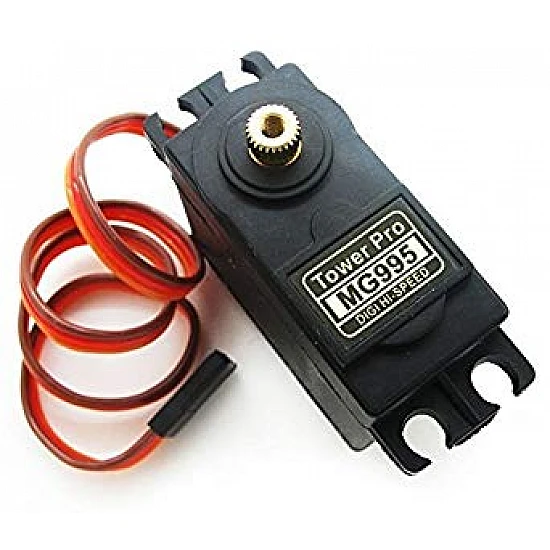

TowerPro MG995 Metal Gear Servo Motor MG995 180 degree

TowerPro MG995 Metal Gear Servo Motor MG995 360 Rotation - Servo Motor and Accessories - Motor and Driver
TowerPro MG995 Metal Gear Servo Motor MG995 360 Rotation - Servo Motor and Accessories - Motor and Driver
-31 %
TowerPro MG995 Metal Gear Servo Motor MG995 360 Rotation - Servo Motor and Accessories - Motor and Driver
TowerPro MG995 Metal Gear Servo Motor MG995 360 Rotation - Servo Motor and Accessories - Motor and Driver
TowerPro MG995 Metal Gear Servo Motor MG995 180 degree
₹275
₹399

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-04-406
    7 or more ₹262
    30 or more ₹254

TowerPro MG995 is Metal Gear Servo Motor. You can use any servo code, hardware, or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. The MG995 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast.

The performance and reliability of this servo have made it the favorite choice of many RC hobbyists. It is a Digital Servo Motor which receives and processes with PWM signal faster and better.

Wire Description

  • RED – Positive
  • Brown – Negative
  • Orange – Signal

Note: This high torque servo may work on up to 2 amp during load. So, we recommend that if you are using Arduino or another Controller then please use direct supply to the positive and negative wire as par motor supply rating.

Features:

  • High resolution
  • The connection cable is thicker.
  • Accurate positioning
  • Equips high-quality motor.
  • Excellent holding power
  • Fast control response
  • Constant torque throughout the servo travel range

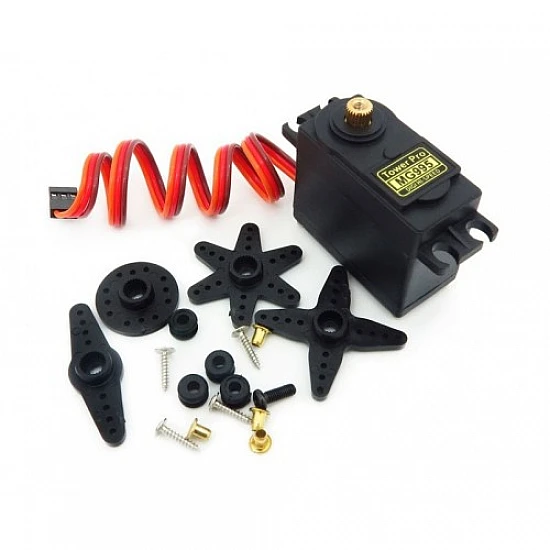

Package Content:

1 x TowerPro MG995 Servo Motor 180 degree with Cable

1 x  set of Horns

  • One Point
  • Two Point
  • Four Point

1 x Set of Screws

Technical
Model

MG995

Gear Type

Metal

Operating Speed

20sec/60°(4.8V),16sec/60°(6.6V)

Operating Temperature Range

-30 to 60 °C

Operating Voltage

4.8 ~ 7.2 V

Rotational Degree

180º

Stall Torque

10 Kg-cm (4.8V), 12 Kg-cm(6.6V)

Length

4.05 cm

Height

4.4 cm

Width

2 cm

Questions1 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?468

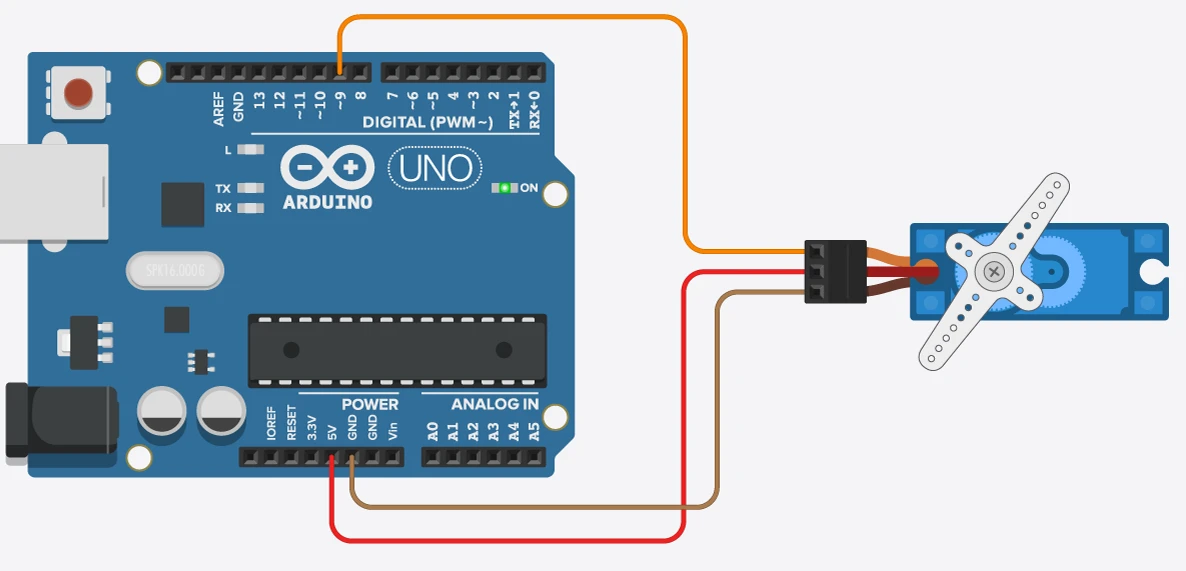

How to check Servo motor is working or not?
Guest
  •

    #include

    Servo myservo;  // create servo object to control a servo
    // twelve servo objects can be created on most boards

    int pos = 0;    // variable to store the servo position

    void setup() {
      myservo.attach(9);  // attaches the servo on pin 9 to the servo object
    }

    void loop() {
      for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
        // in steps of 1 degree
        myservo.write(pos);              // tell servo to go to position in variable 'pos'
        delay(15);                       // waits 15 ms for the servo to reach the position
      }
      for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
        myservo.write(pos);              // tell servo to go to position in variable 'pos'
        delay(15);                       // waits 15 ms for the servo to reach the position
      }
    }
    FlyRobo[ 16/12/2021 ]
    Was this answer helpful?-23
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1247
