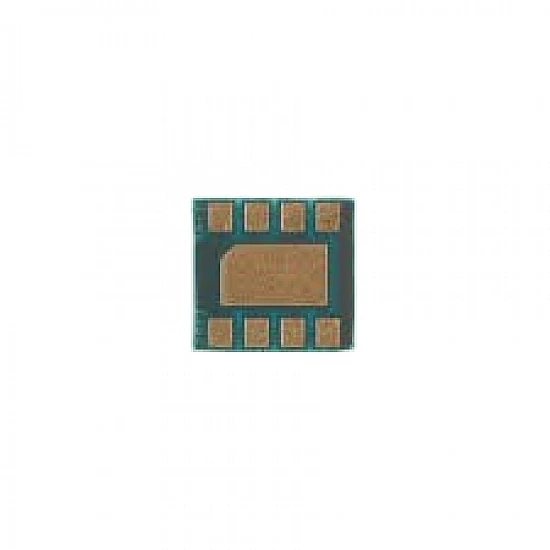

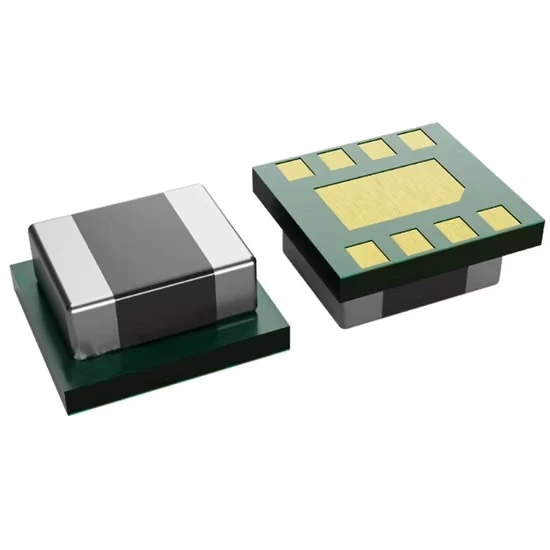

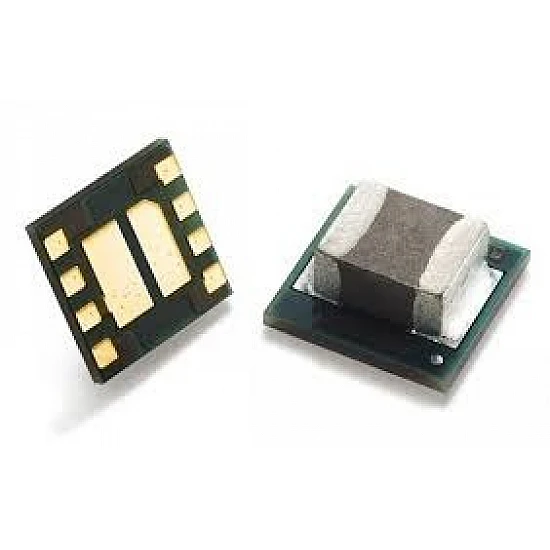

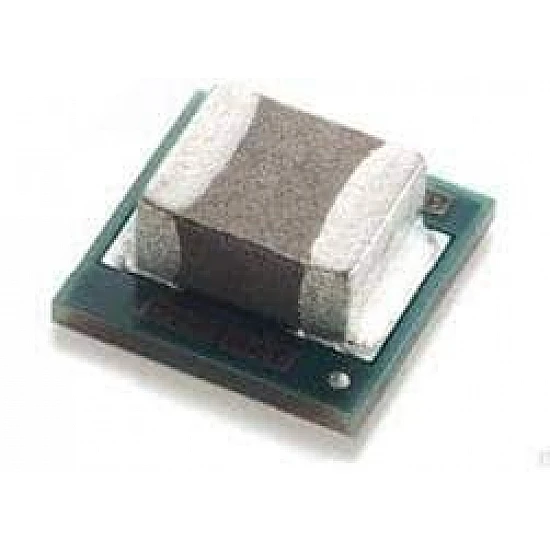

TPS82130SILR SMD uSIP-8 Buck Converter IC

The TPS82130SILR is a compact, high-efficiency SMD uSIP-8 buck converter IC designed for space-constrained applications. It operates with an input voltage range of 3V to 17V and provides a 3A continuous output current. Featuring an integrated inductor and FETs, it minimizes external components and ensures ease of design. With a 97% peak efficiency, it is ideal for portable devices, industrial equipment, and communication systems. The IC offers adjustable output voltages, low output ripple, and fast transient response. Enhanced protection features include overcurrent, overtemperature, and undervoltage lockout, ensuring reliable operation in demanding environments.

Features:

• 8-pin µSIP package
• up to 90% efficiency
• 3V to 17V
• 0.9V to 6V
• 3A continuous output current
• Built-in inductor and other passive components
• Low Quiescent Current
• Fast Transient Response
• Soft-Start Functionality
• Operates at a fixed 2.5MHz

Package Includes:

1 x TPS82130SILR SMD uSIP-8 Buck Converter IC
