TTP226 8-Channel Capacitive Touch Sensor Module

TTP226 8-Channel Capacitive Touch Sensor Module
TTP226 8-Channel Capacitive Touch Sensor Module
-26 % Out Of Stock
TTP226 8-Channel Capacitive Touch Sensor Module
TTP226 8-Channel Capacitive Touch Sensor Module
TTP226 8-Channel Capacitive Touch Sensor Module
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹96
₹129

(inc GST)

  • Stock: Out Of Stock
  • SKU: FR-01-606
    10 or more ₹93
    50 or more ₹92
FlyRobo FlyRobo
Add to Cart
Buy Now Notify When Available
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

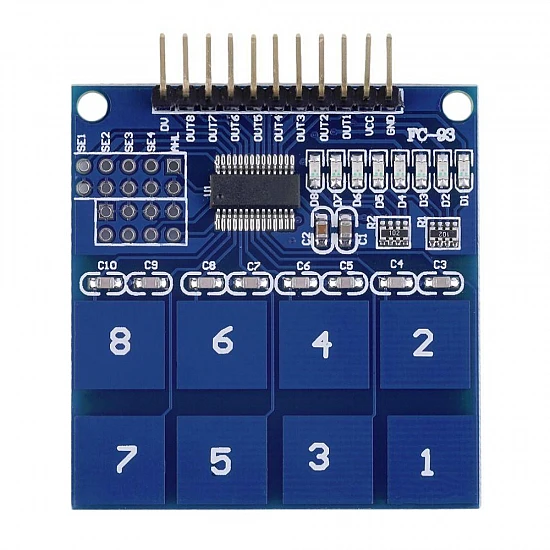

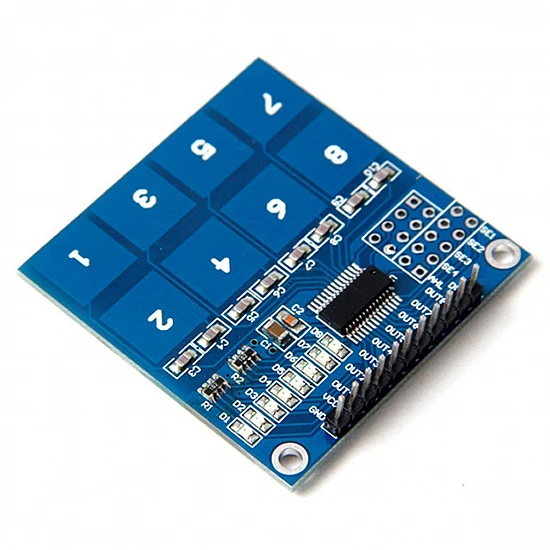

The TTP226 is a touchpad detector IC which offers 8 touch key. The touching detection IC is designed for replacing the traditional direct button key with a diverse pad size. Capacitive touch allows electronics to sense when your finger is within a few millimeters of a surface to simulate a button “press” just like how the pushbutton works. Capacitive sensing may be used in any place where low to no force human touch sensing is desirable.

Features:

  • On-board TTP226 capacitive touch induction IC
  • On-board 8-way level indicator.
  • Adjustable output mode, key output mode, longest time, and fast/low power output.
  • Working voltage: 2.4V - 5.5V
  • Advanced Pins breakout, so that the output mode and working mode selectable.
  • Low power selection

Package Includes:

1 x  TTP226 8-Channel Capacitive Touch Sensor Module

Technical
IC Chip

TTP226
Operating Temperature Range

2.4 ~ 5.5 V
Response Time

60mS
Response time (low power mode)

220ms
Length

4.6 cm
Height

1.1 cm
Width

4.7 cm
