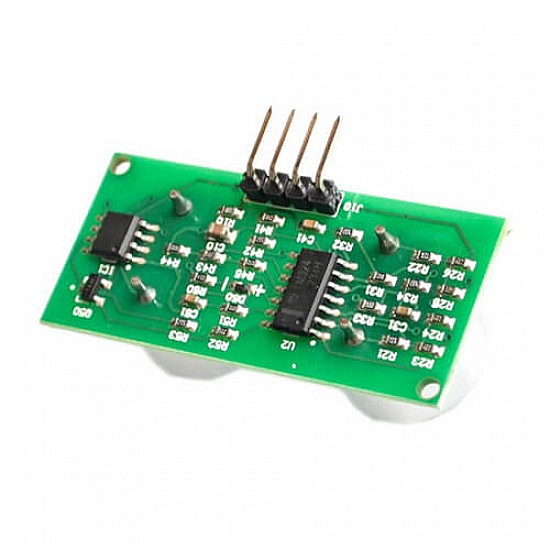

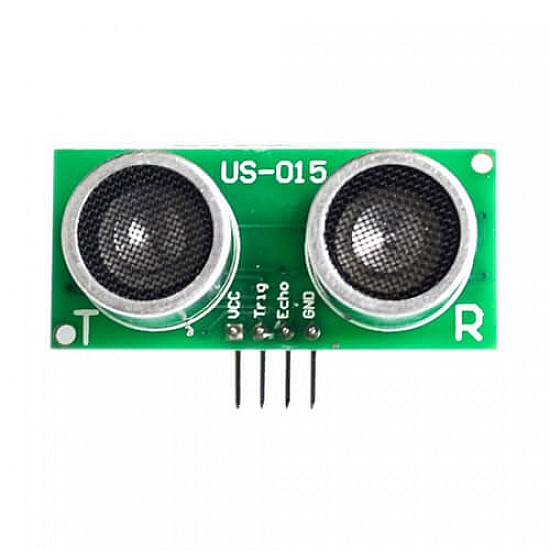

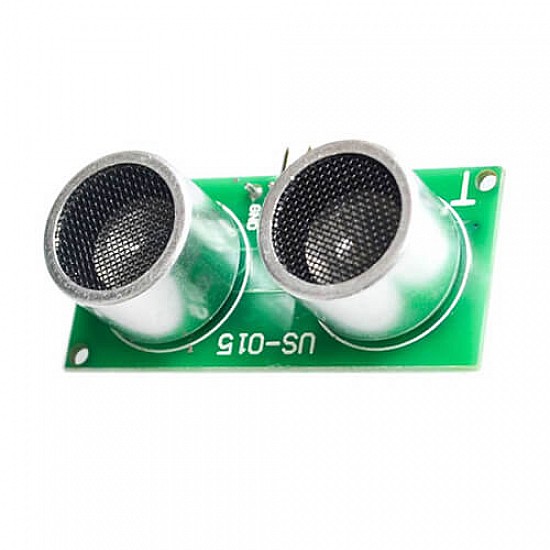

US-015 Ultrasonic Distance Measuring Transducer Sensor

US-015 Ultrasonic Distance Measuring Transducer Sensor
US-015 Ultrasonic Distance Measuring Transducer Sensor
US-015 Ultrasonic Distance Measuring Transducer Sensor
-25 %
US-015 Ultrasonic Distance Measuring Transducer Sensor
US-015 Ultrasonic Distance Measuring Transducer Sensor
US-015 Ultrasonic Distance Measuring Transducer Sensor
US-015 Ultrasonic Distance Measuring Transducer Sensor
₹223
₹299

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-725
    7 or more ₹220
    30 or more ₹218

US-015 Ultrasonic Sensor is accurate than the HCSR04 sensor for distance measurement and object detection. It offers excellent range accuracy up to (1mm) and fairly stable readings. It requires two digital I/O pins (an output pin and an input pin) to interface with it.

Features:

  • More accurate than HCSR04.
  • It has a large measuring range.
  • It detects distance is from 2 cm to 400 cm.
  • The static power consumption is less than 3mA.

Package Includes:

1 x  US-015 Ultrasonic Distance Measuring Transducer Sensor.

Technical
Distance Measuring Range

2cm – 400cm

Operating Temperature Range

0°C to 70°C

Operating Voltage

5 VDC

Sensing Angle

<15deg

Static Current

Less than 3mA

Length

44 mm

Height

15 mm

Width

20 mm
