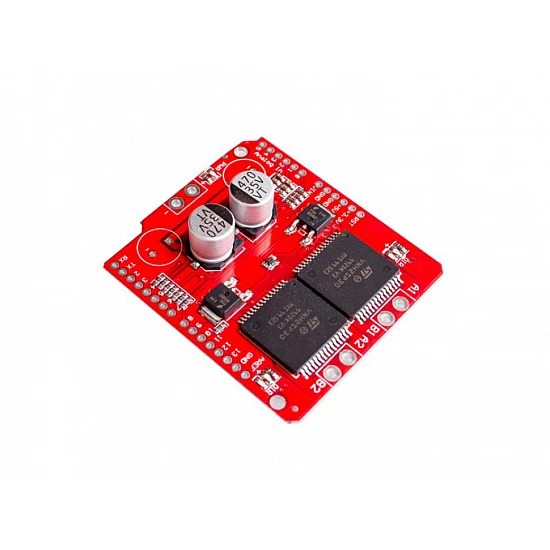

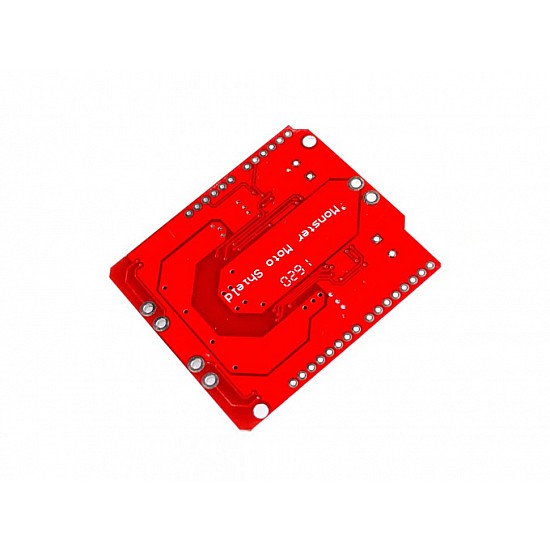

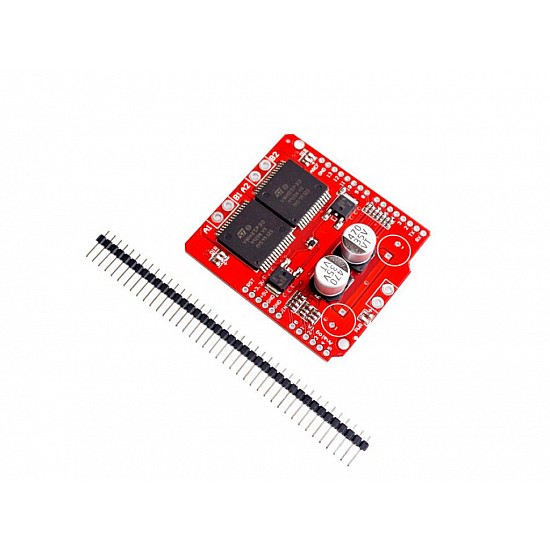

VNH2SP30 Monster Motor Shield

Full bridge motor driver VNH2SP30 is designed for a variety of automotive applications. The gadget has two low side switches and a dual monolithic high side driver. The very effective combination of a genuine Power MOSFET and intelligent signal/protection circuitry on the same die is made possible by STMicroelectronic's well-known and well-proven patented VIPower M0 technology, which is used to create the high side driver switch. It is simple to attach wider gauge wires because the VIN and motor out are designed for 5mm screw connections. Each motor's direction is controlled by INA and INB, while its on/off state is controlled by the PWM pins. The current sensing (CS) pins of the VNH2SP30 will produce an output current of about 0.13 volts per amp.

Features:-

• Voltage: 5.5 to 16 volts
• 30-ampere maximum current rating
• Current Continuous Usable: 14 A
• Motor current proportional to current sense output
• 19 m MOSFET on-resistance (per leg)
• 20 kHz is the maximum PWM frequency.
• Thermal Reduction
• shutdown due to undervoltage and overvoltage

Pakage Includes:-

1 X VNH2SP30 Monster Motor Shield
