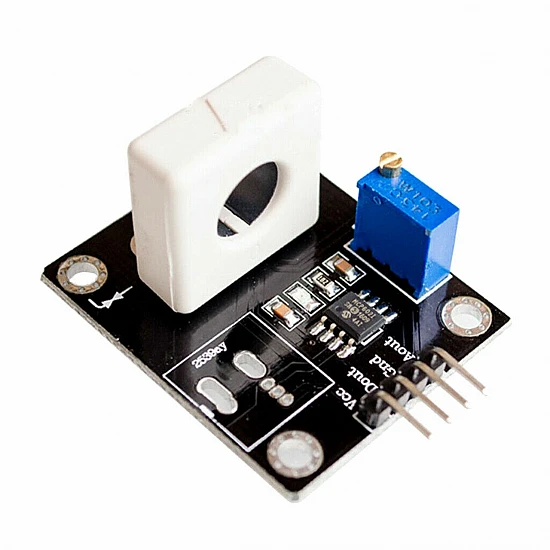

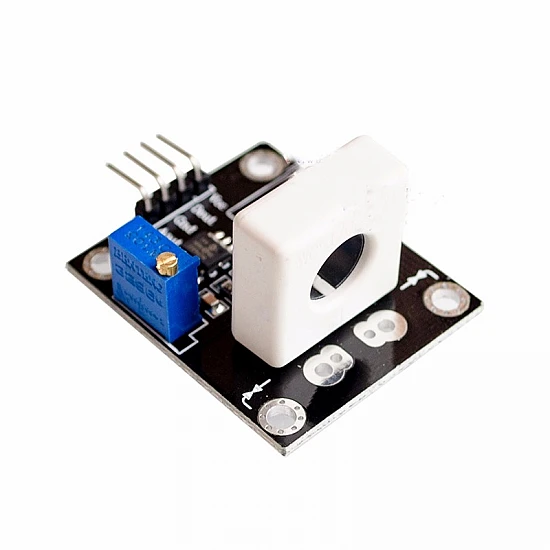

WCS1700 Hall Current Sensor with Over Current Protection

WCS1700 Hall Current Sensor gives economical and precise solutions for both DC and AC current sensing in industrial, commercial, and communications systems. It has a low-temperature drift linear hall sensor IC with a temperature compensation circuit and diameter of 9.0mm through-hole. The hole will generate a magnetic field that is sensed by the integrated Hall IC and converted into a proportional voltage when current flows in.

Features:

• The output of the flow signal
• The current detection range of DC: 70A  AC: 50A
• The flow signal is set to adjust the critical point,  set the resolution of 3A
• Sampling current conversion analog signal output can be connected to the ADC, TTL level signal output can be connected to the microcontroller IO port control.
• It has an installation hole, to facilitate the installation of the firmware
• Applications: Motor control, load detection and management, over-current fault detection, and any intelligent power management system, etc.

Package Includes:

1 x WCS1700 Hall Current Sensor with Over Current Protection
