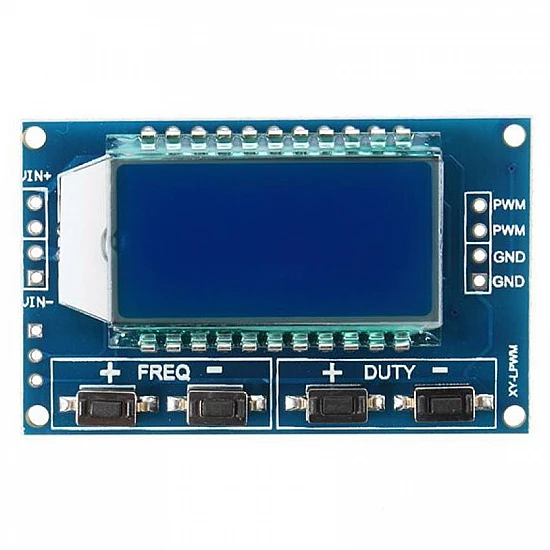

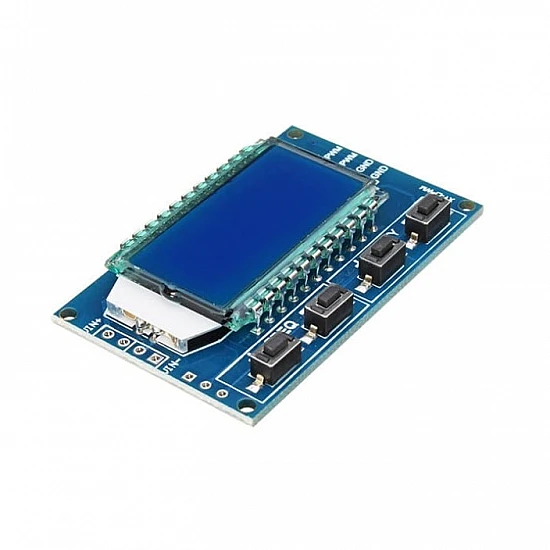

XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module

XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module
XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module
-20 %
XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module
XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module
XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹198
₹248

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-01-252
    7 or more ₹183
    30 or more ₹175
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module contains switches specifically for regulating the duty cycle and frequency. It is a two-channel PWM signal generator.

Features:

  • Two independent PWM cycles with variable Frequency and Duty cycle.
  • Wide frequency range 1Hz ~ 150Khz
  • Parameters configurable via Serial protocol

Applications:

  • To generate square waves for experiment development from a square wave generator
  • It is used to drive the stepping motor driver’s square wave
  • To generate an adjustable pulse for MCU using
  • To generate an adjustable pulse for controlling relative circuit (PWM adjust light speed etc)

Package Includes:

1 x XY-LPWM Pulse Frequency Duty Cycle Adjustable Signal Generator LCD Display Module.



Technical
Ambient temperature

-20°C to +70°C

Frequency Precision

2%
Frequency Range

1Hz – 150kHz

Operating Voltage

3.3V – 30V

Signal Load Capacity

The output current can be about 5–30mA

Length

52mm
Height

9.3mm
Width

32.8mm
